use and maintenance Atlantic 125/250/500 Sprint
INSTRUMENTS AND INDICATORS

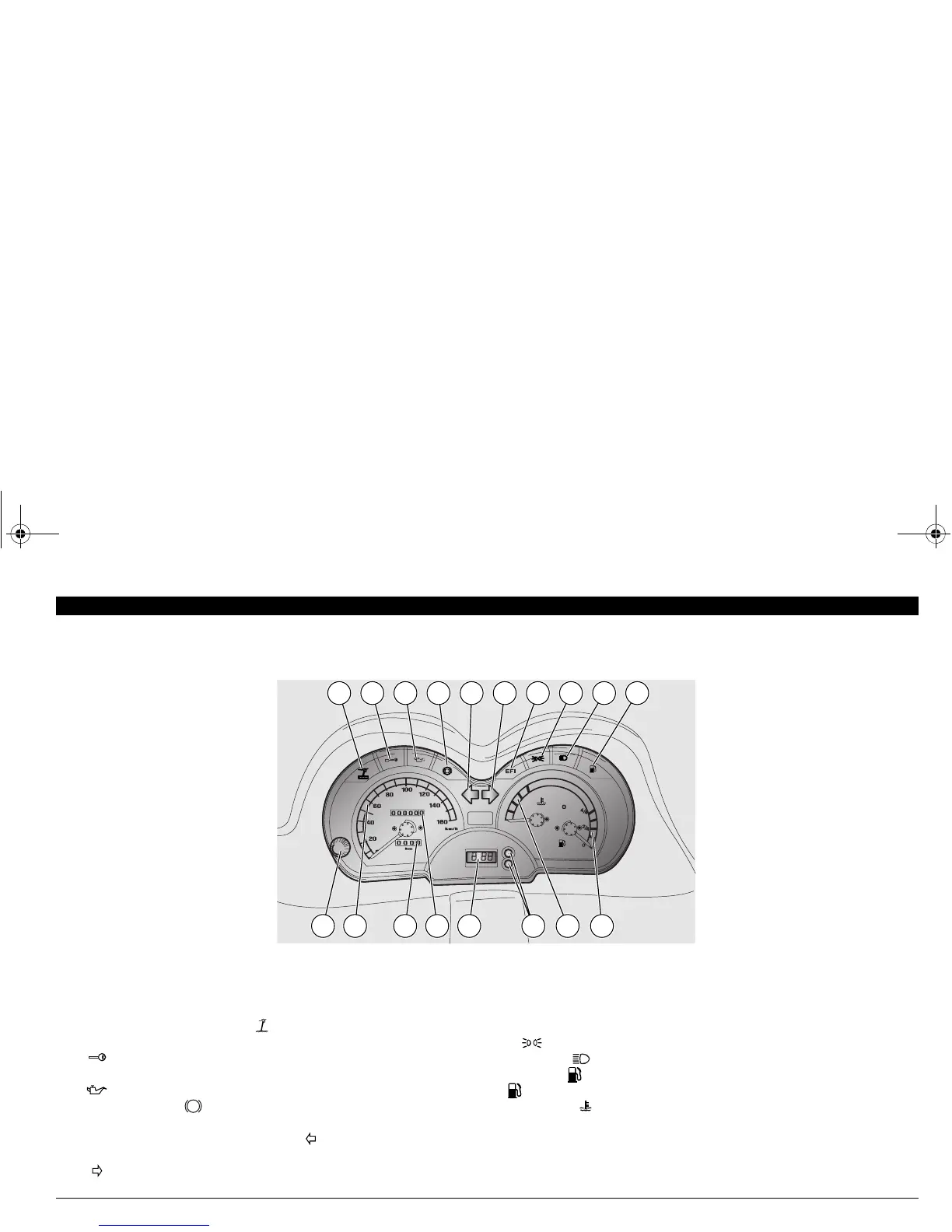

INSTRUMENTS AND INDICATORS KEY
1) Amber "stand down" light ( )
2) Red antitheft (IMMOBILIZER) light
( ) (only for preset vehicles)
3) Red engine oil pressure warning light
()
4) Red ABS light ( ) (only if provisions
are made for ABS)
5) Green left direction indicator light ( )
6) Green right direction indicator light
()
7) Red "EFI" light
8) Green low beam light ( )
9) Blue high beam warning light ( )
10) Amber low fuel warning light ( )
11) Fuel level indicator ( )
12) Coolant temperature indicator ( )
13) Digital clock function and setting push
buttons
14) Digital clock
15) Total kilometres odometer
16) Trip meter
17) Speedometer
18) Trip meter reset knob
