use and maintenance Atlantic 125/250/500 Sprint
58

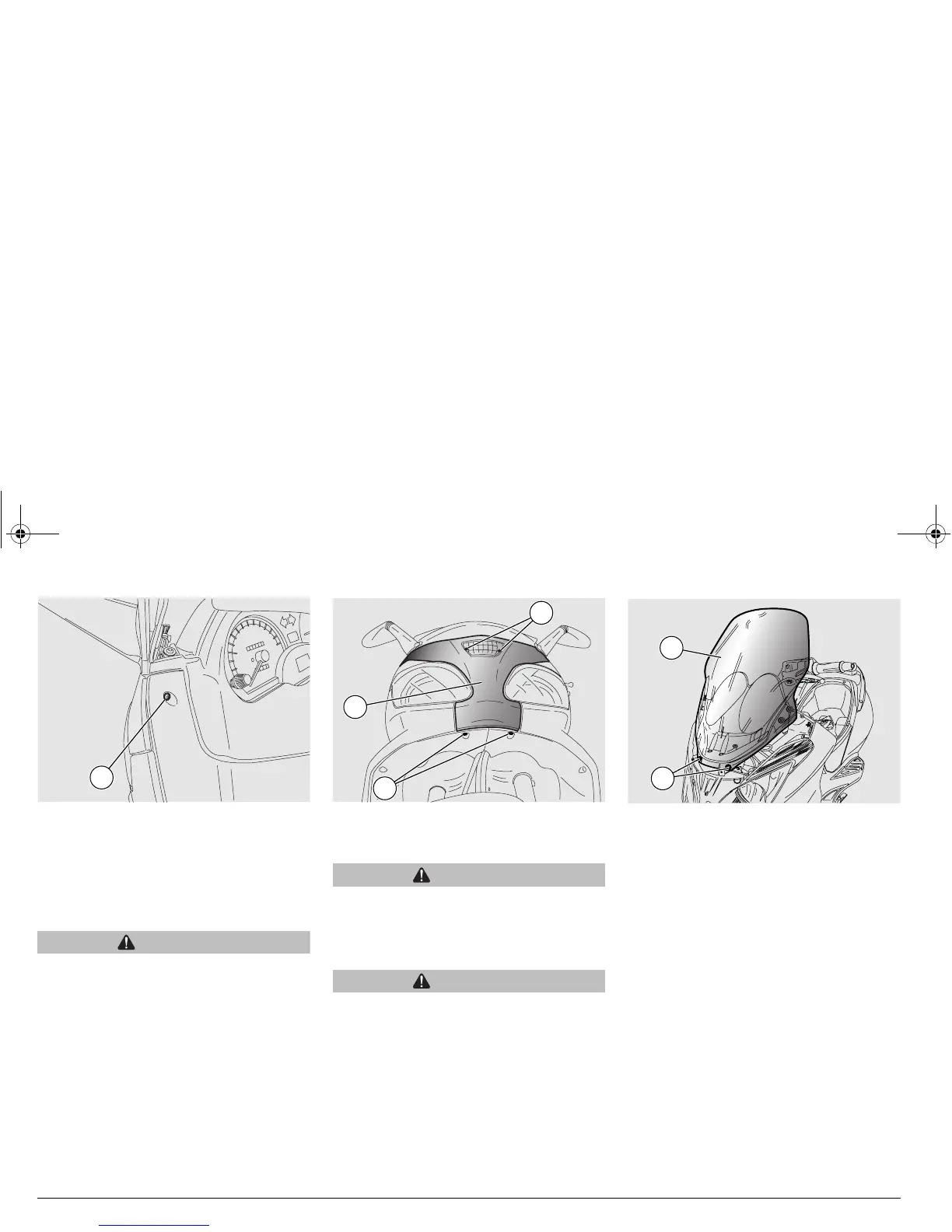

REMOVING THE FRONT COVER
Carefully read page 39
(MAINTENANCE).
u Position the vehicle on the centre stand.
u Release and remove the two screws (6).
CAUTION
Proceed with care.
Do not damage the tabs and/or their
seats.
Handle plastic and paint-finished parts
with care to avoid scratching or
damage.
u Unscrew and remove the two screws (7).
u Unscrew and remove the two screws (8).
CAUTION
Pay attention to the fixing tab clips.
They might come loose during removal.
u Pull the front cover (9) gently to remove.
CAUTION
Ensure that the tabs with the clips
locate correctly into their seats on
refitting.
REMOVING THE HEADLIGHT
FAIRING
Carefully read page 39
(MAINTENANCE).
u Position the vehicle on the centre stand.
u Remove the rear-view mirrors, see page
57 (REMOVING THE REAR-VIEW
MIRRORS).
u Remove the front cover, see page 58
(REMOVING THE FRONT COVER).
u Release and remove the two screws (1)
securing the windshield to the vehicle.
u Remove the windshield (2).
6
7
9
8
2
1
