use and maintenance Scarabeo 500
56
REMOVING THE REAR-VIEW
MIRRORS
Read page 41 (MAINTENANCE)
carefully.
The following instructions apply to both
rear-view mirrors.
◆ Place the vehicle on the centre stand.
NOTE Make sure the individual
components of the left and right rear-view
mirrors do not become mixed up. Store
them away separately.

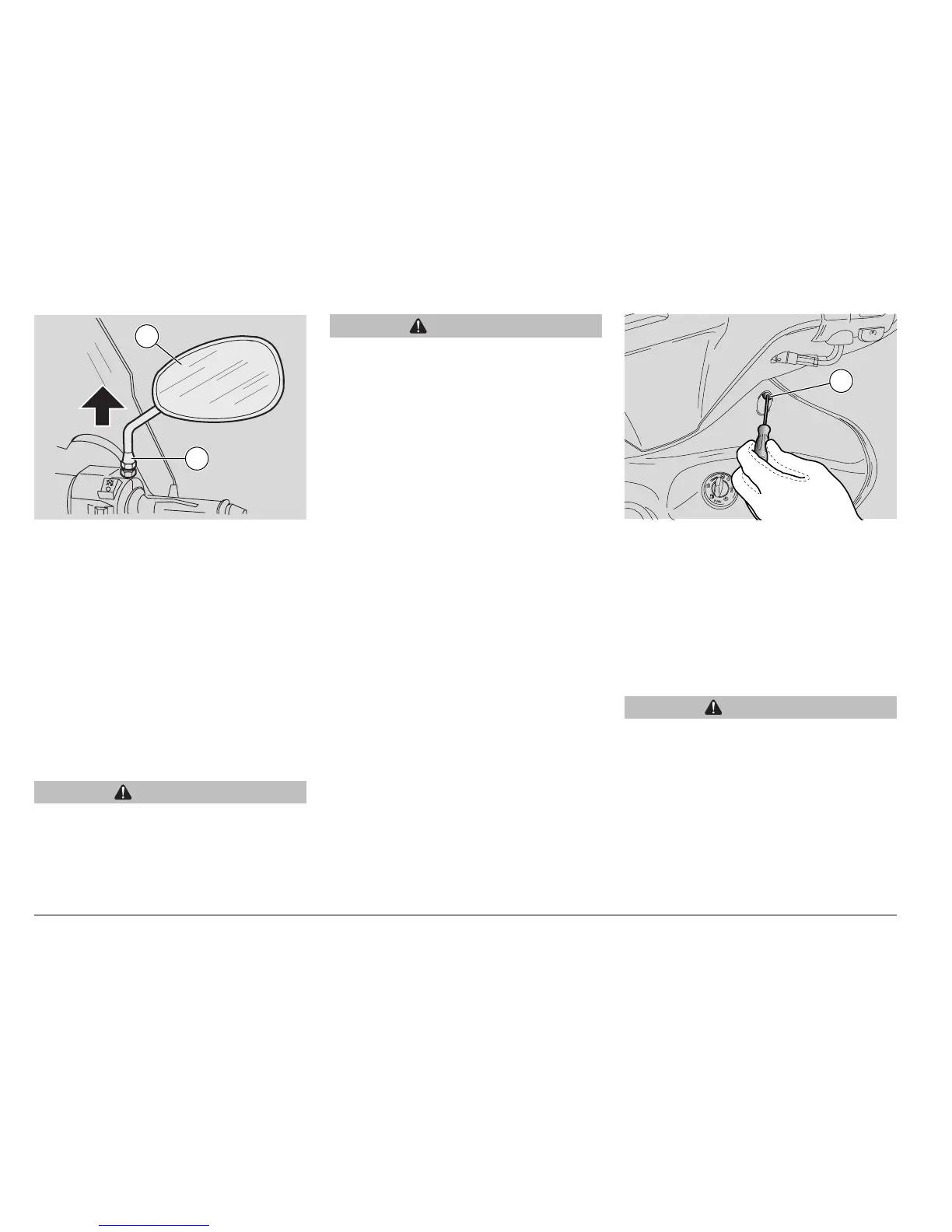

◆ Unscrew the cover (1).
CAUTION
Hold the rear-view mirror (2) in order to
prevent it from falling accidentally.
CAUTION
Handle plastic and paint-finished
components with care to avoid
scratching or damage.
◆ Lift the rear-view mirror (2) to remove.
◆ Collect the cover (1).
REMOVING THE FRONT COVER
Read page 41 (MAINTENANCE)
carefully.
◆ Place the vehicle on the centre stand.
◆ Turn the handlebar fully to the right and
remove the screw (3).
◆ Turn the handlebar fully to the left and
repeat the procedure.
CAUTION
Proceed with care.
Do not damage the fixing tabs and their
seats.
Handle plastic and paint-finished
components with care to avoid
scratching or damage.
1
2
3
