67
use and maintenance Scarabeo 500
NOTE Insert the bulb into the bulb
holder matching the two locating pegs with
their guides in the bulb holder.
◆ Fit a new bulb of equal rating. Ensure it
is positioned correctly.
NOTE Make sure that the protective
shield locates correctly into its seat on
refitting.
CAUTION
Tighten the screws (3) gradually and
moderately or the protective shield will
damage.

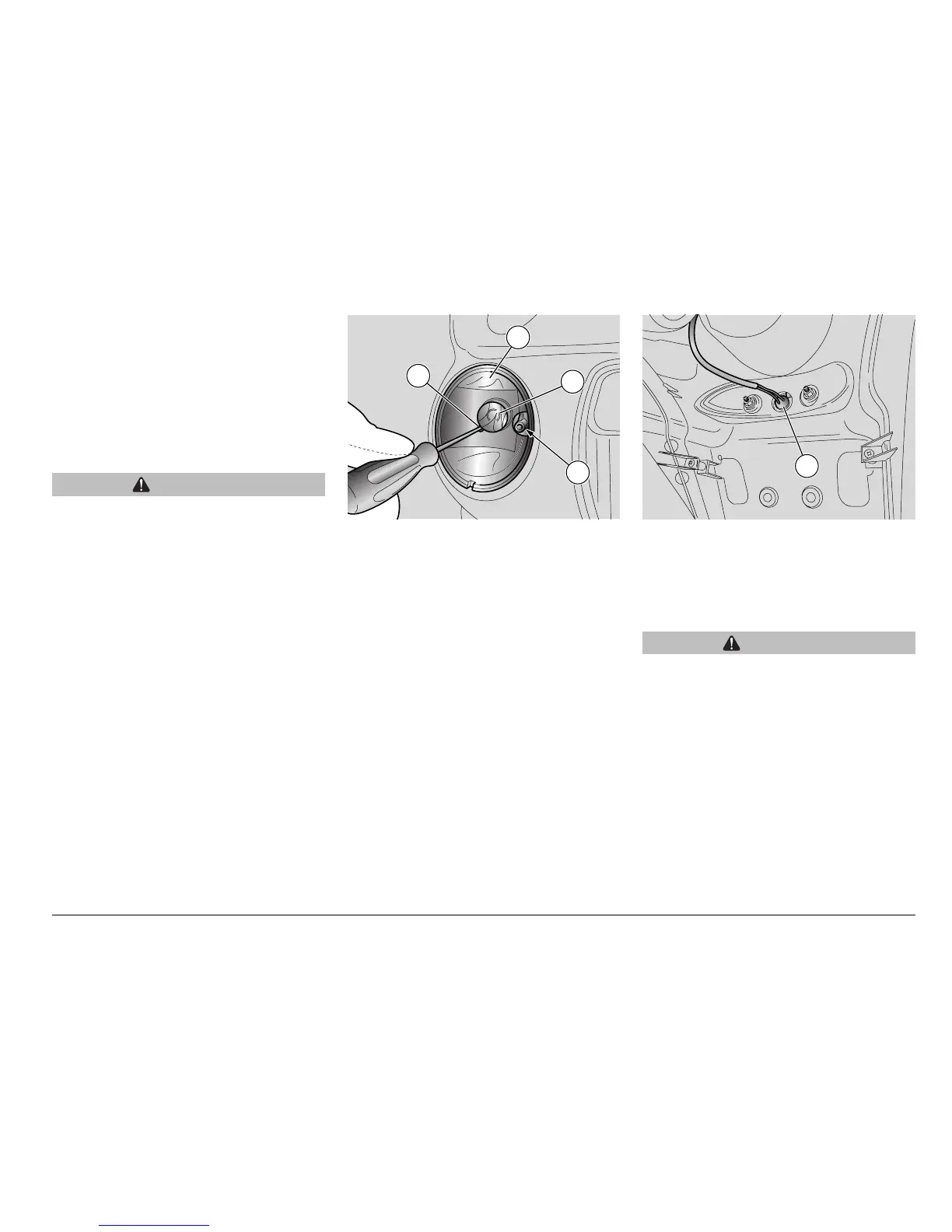

REPLACING THE REAR
DIRECTION INDICATOR BULBS
To replace:
◆ Unscrew the retaining screw (8) and
remove the lens.
◆ Unscrew the screw (9) and remove the
inner lens (10).
◆ Rotate anticlockwise and extract the
bulb from the reflector (11).
REPLACING THE NUMBER PLATE
BULB
Read page 64 (BULBS) carefully.
To replace the bulb:
CAUTION
Do not pull on the wiring to extract the
bulb holder.
◆ Grasp the bulb holder (12) and pull to
extract.
◆ Remove the bulb and fit a new bulb of
equal rating.
11
10
9
8
12
