use and maintenance Scarabeo 500
14

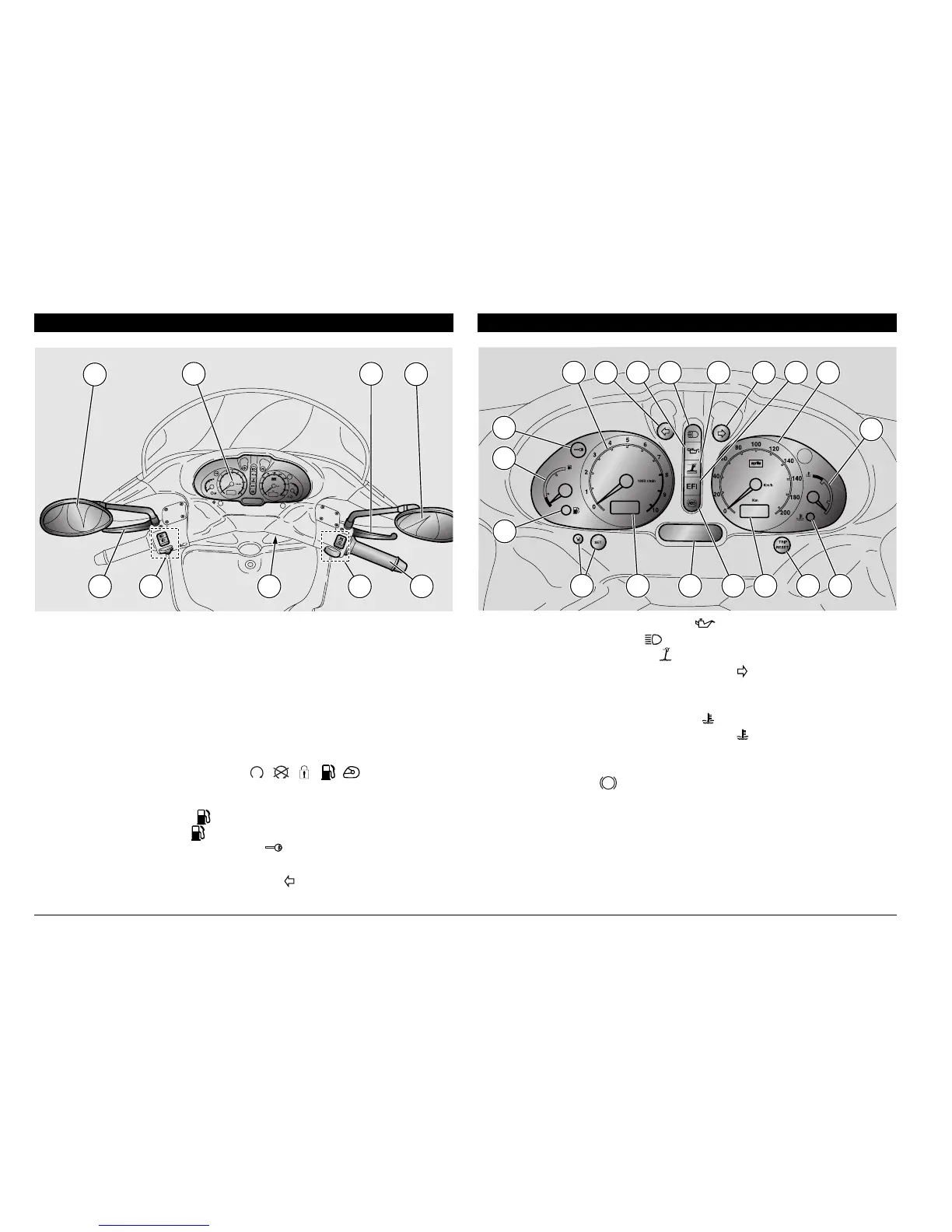

ARRANGEMENT OF THE CONTROLS / INSTRUMENTS
ARRANGEMENT OF THE CONTROLS / INSTRUMENTS - KEY
1) Electric controls on the left side of the handlebar
2) Integral braking lever (operates front and rear brakes)
3) Left rear-view mirror
4) Instruments and indicators
5) Front brake lever
6) Right rear-view mirror
7) Throttle twistgrip
8) Electric controls on the right side of the handlebar
9)Ignition switch /steering lock (----)
INSTRUMENTS AND INDICATORS - KEY
1) Amber low fuel light ( )
2) Fuel level indicator ( )
3) Red anti-theft (IMMOBILIZER) ( ) light
4) Rev counter
5) Green left direction indicator light ( )
6
3
4 5
0
92 781
INSTRUMENTS AND INDICATORS
6) Red engine oil pressure light ( )
7) Blue high beam light ( )
8) Amber side stand light ( )
9) Green right direction indicator light ( )
10) "EFI" warning light
11) Speedometer
12) Coolant temperature indicator( )
13) Red high coolant temperature light ( )
14) Display mode select (15) and reset (17 and 15)
15) Digital odometer
16) Red ABS light( )
17) LCD
18) Digital clock
19) Digital clock mode select and reset buttons
