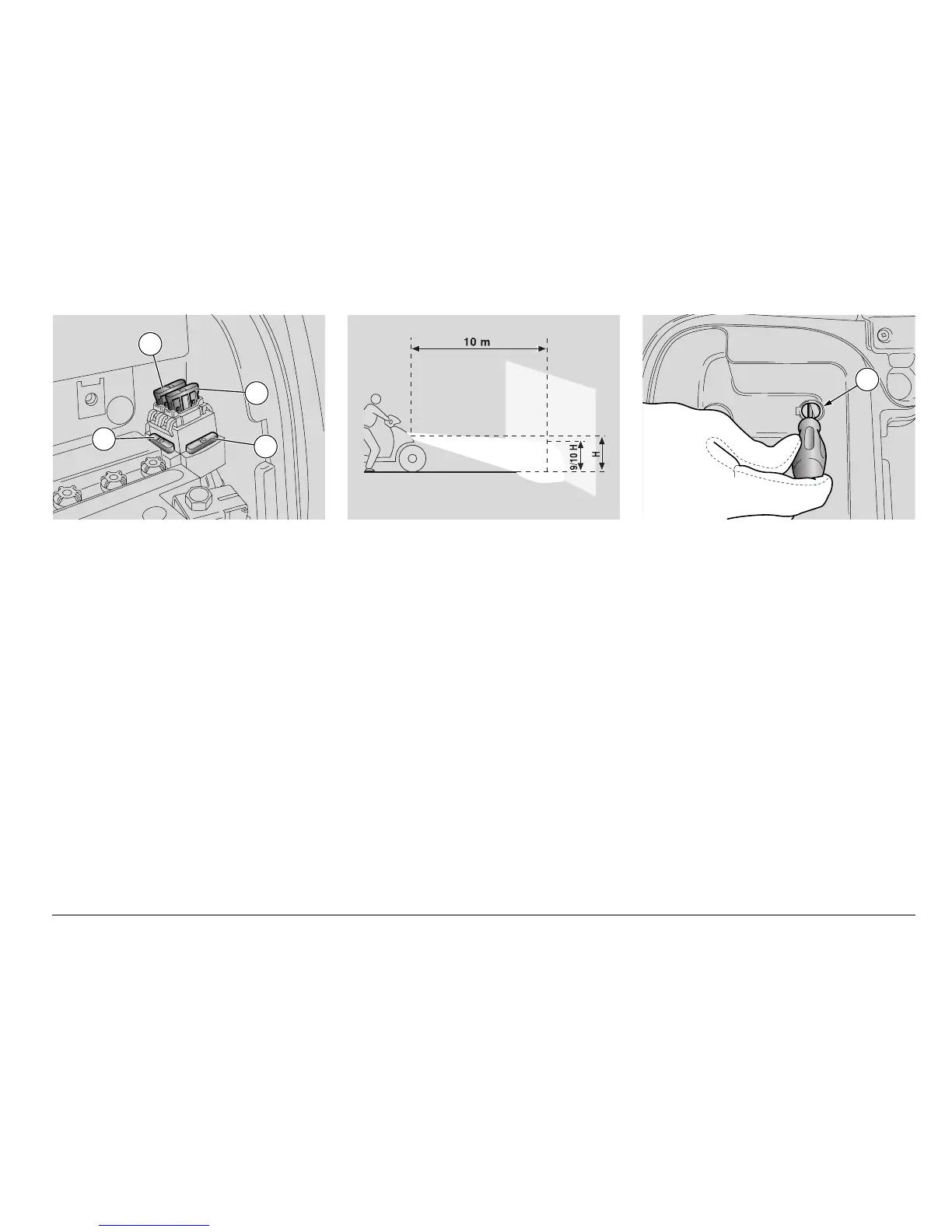

ARRANGEMENT OF MAIN FUSES
(BATTERY COMPARTMENT)
– 30-A fuse (10)
From battery to: ignition switch, fuse (2),
helmet compartment light, cooling fan,
dashboard permanent power supply.
– 20-A fuse (11)
From battery to: voltage regulator, fuse (3),
fuse (5).
– 30-A fuse (12)
Spare fuse.
– 20-A fuse (13)
Spare fuse.
VERTICAL ADJUSTMENT OF THE
HEADLIGHT BEAM
This is a quick beam inspection procedure.
Place the vehicle ten metres away from a
vertical wall. It is important that the vehicle
be on level ground.
Switch on the low beam and sit astride the
vehicle. The light spot on the wall should
be just below the horizontal line of the
headlight (about nine/tenths of overall
height)
To set beam height:
◆ Open the glove compartment and
remove the blanking cap of the adjuster
access hole (14).
◆ Insert a long screwdriver into the
headlight adjuster access hole. Ensure
that the screwdriver locates correctly into
the head of the headlight adjusting
screw.
Turn clockwise to raise the beam.
Turn anticlockwise to lower the beam.
11
10
13
12
14
