use and maintenance Scarabeo 500
64
HORIZONTAL ADJUSTMENT OF
THE HEADLIGHT BEAM
◆ Open the glove compartment and
remove the battery cover, see page 60
(REMOVING THE BATTERY COVER).

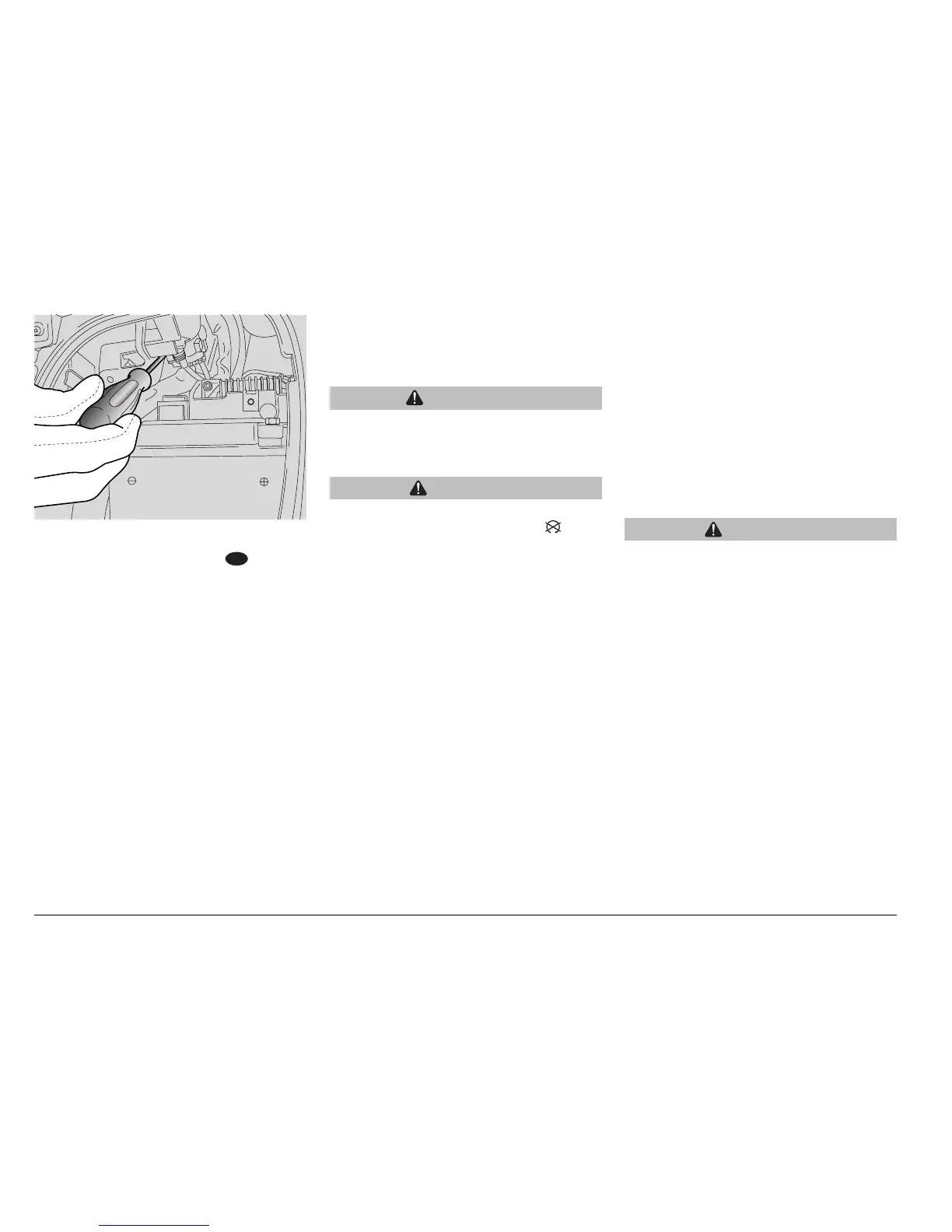

◆ Insert a screwdriver at the position
highlighted in the figure and ensure it
locates correctly into the head of the
headlight adjusting screw.
Adjust beam as follows:
◆ Turn CLOCKWISE to move the beam to
the LEFT (as viewed from riding
position). Rotate ANTICLOCKWISE to
move the beam to the RIGHT (as viewed
from riding position).
BULBS
Read page 41 (MAINTENANCE)
carefully.
WARNING
Fire hazard!
Keep fuel and other flammable products
away from electric components.
CAUTION
Before proceeding to change a bulb,
rotate the ignition switch to “ ” and
allow some time for the bulb to cool
down.
Wear clean gloves or use a clean, dry
cloth to handle bulbs. Do not put your
fingerprints on a bulb, as this may
cause overheating leading to failure.
If you touch a bulb with your fingers,
remove any fingerprints with alcohol to
avoid early failure.
DO NOT PULL ON THE WIRING.
NOTE Check the fuses, see page 62
(REPLACING THE FUSES) before
changing a bulb.
REPLACING THE BULBS OF THE
FRONT DIRECTION INDICATORS
Read paragraph (BULBS) at the side
carefully.
NOTE The indicator bulbs may be
removed without disturbing or removing
the indicator lens or reflector.
To replace the bulbs:
◆ Remove the front cover, see page 56
(REMOVING THE FRONT COVER).
CAUTION
Proceed with care.
Do not damage the tabs and their seats.
◆ Working from the rear of the indicator,
press the two tabs of the bulb holder.
◆ Extract the bulb from its seat.
NOTE Insert the bulb into the bulb
holder matching the two locating pegs with
their guides in the bulb holder.
◆ Fit a new bulb of equal rating. Ensure it
is positioned correctly.
◆ Reverse removal procedure to install the
bulb
USA
