MediaPack SIP User’s Manual 36 Document #: LTRT-65405
Figure 3-10: Lifeline Splitter Pinout & RJ-11 Connector for MP-10x/FXS
1 2 3 4
1 -
2 -
3 -
4 -
Lifeline Tip
Lifeline Ring
Tip
Ring
¾ To cable the MP-10x/FXS Lifeline phone, take these 3 steps:
1. Connect the Lifeline Splitter to port #4 (on the MP-104/FXS or MP-108/FXS) or to port #2 (on
the MP-102/FXS).
2. Connect the Lifeline phone to Port A on the Lifeline Splitter.
3. Connect an analog PSTN line to Port B on the Lifeline Splitter.
Note: The use of the Lifeline on network failure can be disabled using the
‘LifeLineType’ ini file parameter (described in Table 5-37 on page 128).

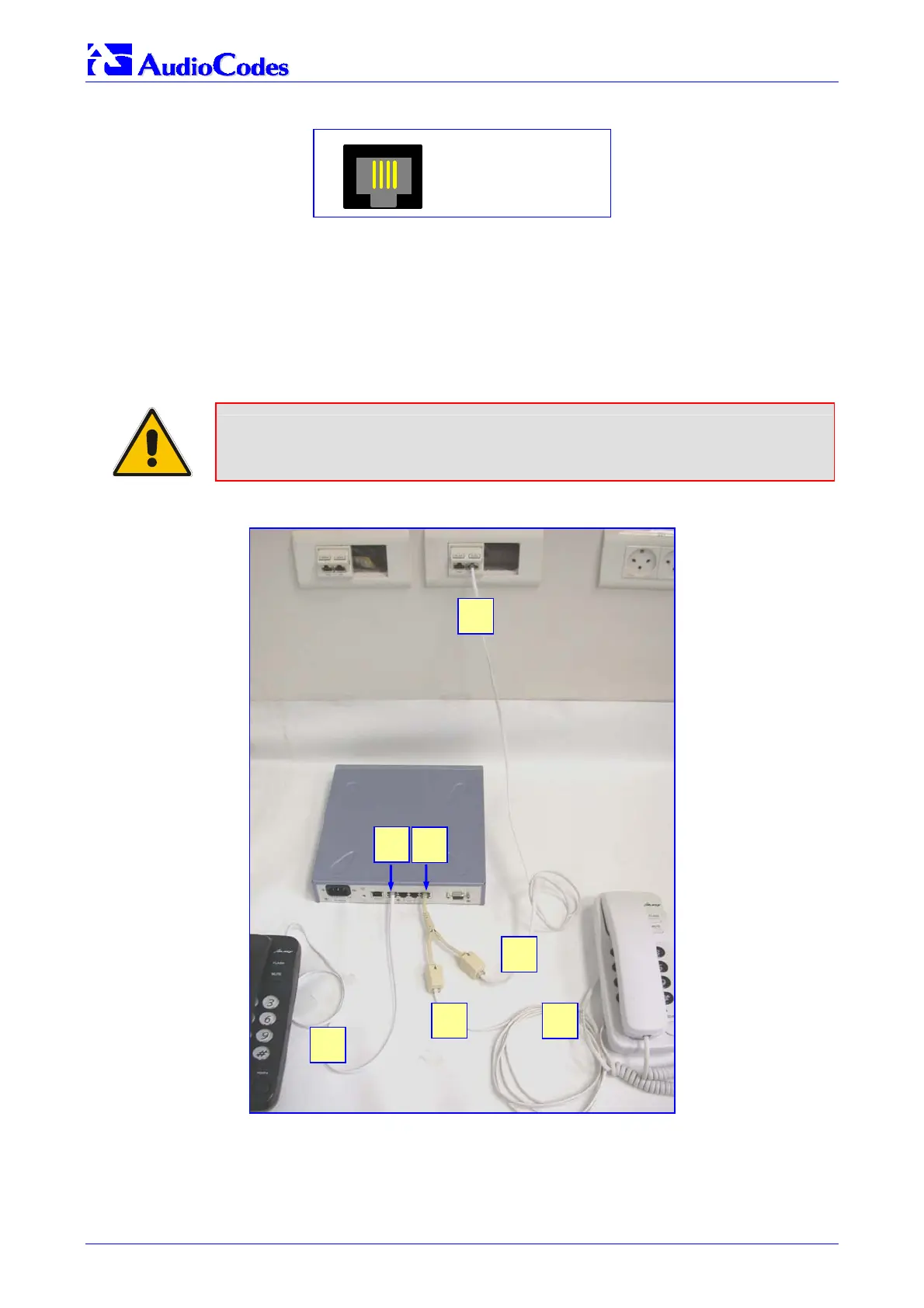

Figure 3-11: MP-104/FXS Lifeline Setup
1
2
3
4
5
6
7
