Bosch rexroth A4VSO 10 Series User Manual

40/72 Installation
BoschRexrothAG, axial piston variable pump A4VSO, RE 92050-01-X-B1/2019.08.23
No gearing forces higher than thepermissible axial and radial forces should act
onthe shaft; ifnecessary, support thegear wheel atthegearbox output separately.
7.4.6 Installation with cardan shaft
To connect the axial piston unit to the drive motor via a cardan shaft:
1. Place theaxial piston unit near theintended installation location. Allow enough
space for thecardan shaft tofit through onboth sides.
2. Place thecardan shaft onthe output shaft ofthedrive motor.
3. Push theaxial piston unit tothe cardan shaft and place thecardan shaft onthe
drive shaft oftheaxial piston unit.
4. Bring theaxial piston unit tothe installation position and fasten it. Details on the
required tools and tightening torques for the mounting bolts can be obtained
from the system manufacturer if required.
7.4.7 Completion of assembly
1. Remove any installed transport screws.
CAUTION! Operation with protective plugs!
Operating theaxial piston unit with protective plugs may result ininjury ordamage
tothe axial piston unit.
▶ Before commissioning, remove all protective plugs and replace them with
suitable, pressure-resistant connecting fittings.
2. Remove thetransport protection.

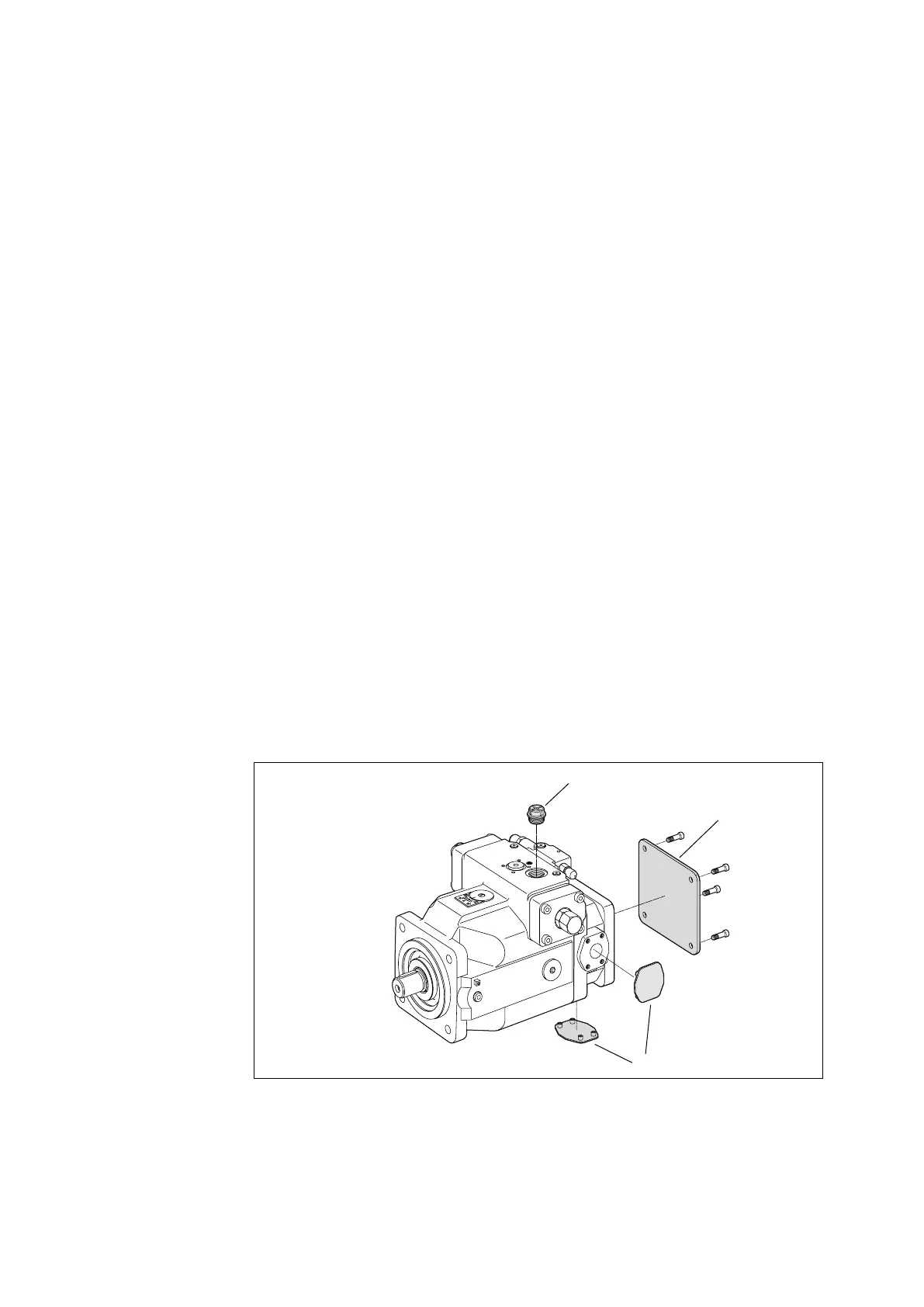

The axial piston unit comes with protective covers(1) and protective
plugs(2).They are not pressure-resistant and have tobe removed prior
toconnection. Use a suitable tool for this to prevent damage to the sealing and
functional surfaces. If sealing orfunctional surfaces are damaged, contact your
BoschRexrothservice partner ortheservice department ofthefactory that
manufactured theaxial piston unit.
2
1
3
For attachment via gear
wheel orhelical gear shaft
