Bosch rexroth ctrlX SAFETY SafeMotion User Manual

254 / 302
ctrlX SAFETY "SafeMotion"
SafeMotion M5
Bosch Rexroth AG
R911404905,
Edition 02
13.1 SafeMotion M5

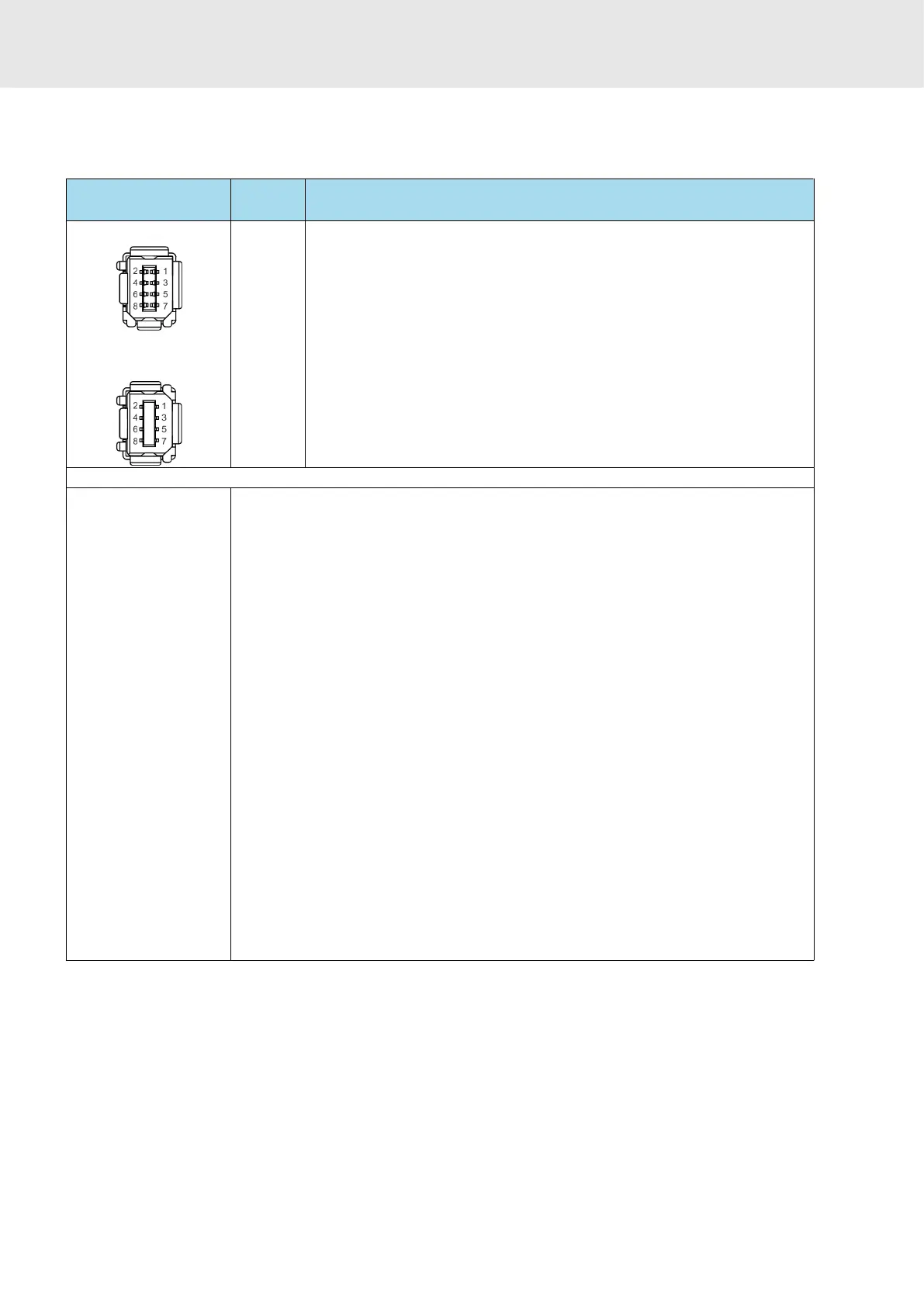

13.1.1 XG42, XG43, Safe Motion safety technology (communication)
View Identifi-
cation
Function
XG42:
XG43:
XG42
XG43
Connection points for safety bus ctrlX SAFETYlink:
XG42: Input
XG43: Output
Connection cable
● Maximum length of one cable between two connection points: 15 m
●
Number of safety zone nodes:
–
maximum: 16
–
minimum: 1
● Ready-made cables available for order:
– RKB0061
Short cables to connect adjacent devices in the control cabinet.
Available lengths: 0.25 m; 0.35 m; 0.55 m
Minimum bending radius in the case of permanent installation: 4xD (=
4x6.3 mm = 25.2 mm)
Minimum bending radius in the case of flexible routing: 8xD (= 8x6.3
mm = 50.4 mm)
Order code for a cable with a length of 0.55 m: RKB0061/00,55
– RKB0062
Long cables to connect remote communication nodes outside the con-
trol cabinet.
Available lengths: 1 m, 2 m, 3 m, … 15 m, 20 m, 30 m, 50 m, 75 m,
100 m
Minimum bending radius in the case of permanent installation: 4xD (=
4x6.3 mm = 25.2 mm)
Minimum bending radius in the case of flexible routing: 8xD (= 8x6.3
mm = 50.4 mm)
Order designation for a cable with a length of 5 m: RKB0062/005,0
