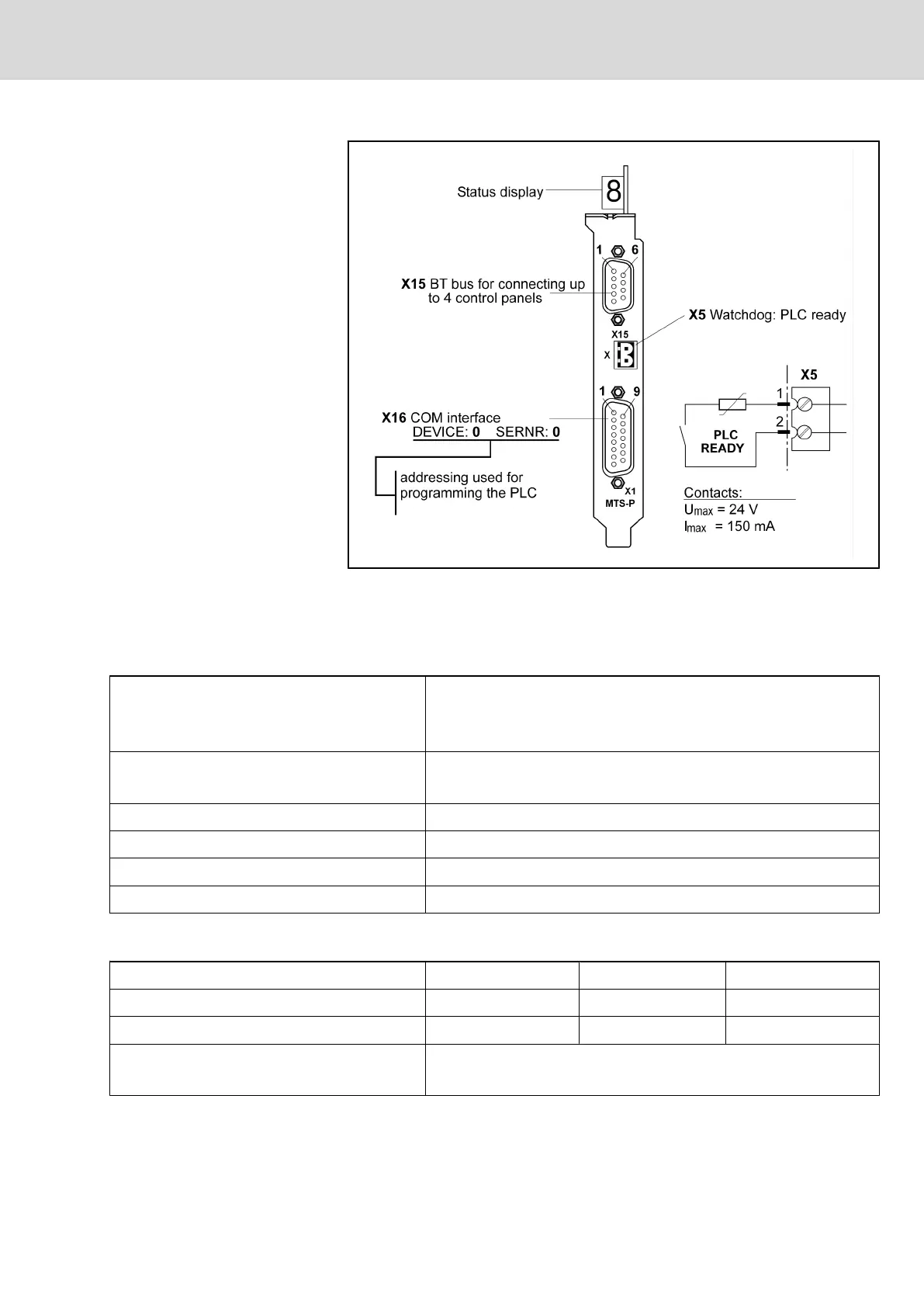

Fig.9-3: Front view MTS-P01.2 and MTS-P02.2
9.2 Technical Data
9.2.1 General Information
Humidity: 75 %, non-condensing (operation)
95 %, non-condensing (transport)
DIN 40 040 class F
Air pressure: 860 to 1080 hPa, 1500 m (operation)
660 to 1080 hPa, 3500 m (transport)
Surrounding air temperature in operation: 0 to 50°C, DIN 40 040 class KV
Storage temperature: -20°C to +70°C
Dimensions (WxHxD): 22 mm x 145 mmm x 295 mm
Weight: approx. 0.3 kg
9.2.2 Supply Voltage
Nominal value: +5 V +12 V -12 V
Permissible ripple: 50 mV 120 mV 120 mV
Permissible voltage range: +4,875 +11.4 V .....+12.6 V -12.6 V .....-11.4 V
Max. current consumption (+5V): (MTS-P01.2)
(MTS-P02.2)
0.6 A (+ supply voltage for PC/104 modules up to max. 2.5A)
1.8 A (+ supply voltage for PC/104 modules up to max. 2.5A)
Project Planning Manual | Rexroth MTA 200 Electric Drives
and Controls
| Bosch Rexroth AG 109/135
PLC Modules MTS-P01.2 and MTS-P02.2
