Application Example with BTA 10/20 and BTC 06 Hand-held Terminal

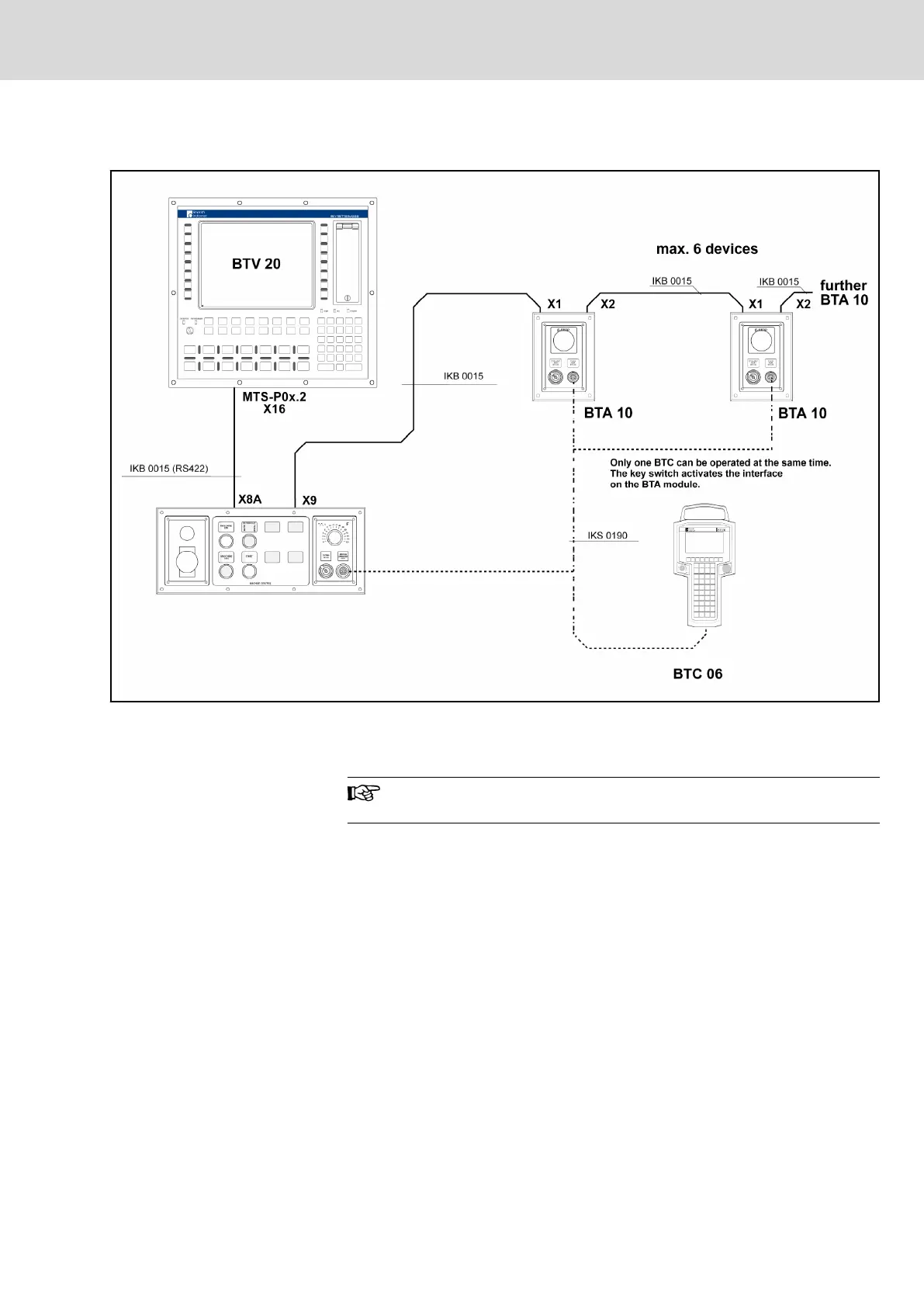

Fig.4-43: Device arrangement
The BTA 20 is to be connected directly to the X16 connector of the used PLC
module via the IKB0015 cable.
Only RS422 communication can be established between the devi‐
ces.
Further notes regarding the connection of the BTC 06 hand-held terminal are
in chapter 9 "PLC Modules MTS-P01.2 and MTS-P02.2" on page 107.
Project Planning Manual | Rexroth MTA 200 Electric Drives
and Controls
| Bosch Rexroth AG 51/135
Machine Operator Terminal BTV 20.4A
