Assembled Interface Connectors
For RS422 and RS485 communication connectors are available that include a
termination in the housing. The cable can be mounted with screw terminals.
The figure shows the pin assignment of the both connectors.
The table in chapter 4.8.3 "Accessories" on page 58 shows when which con‐
nector housing for interface cables is used .

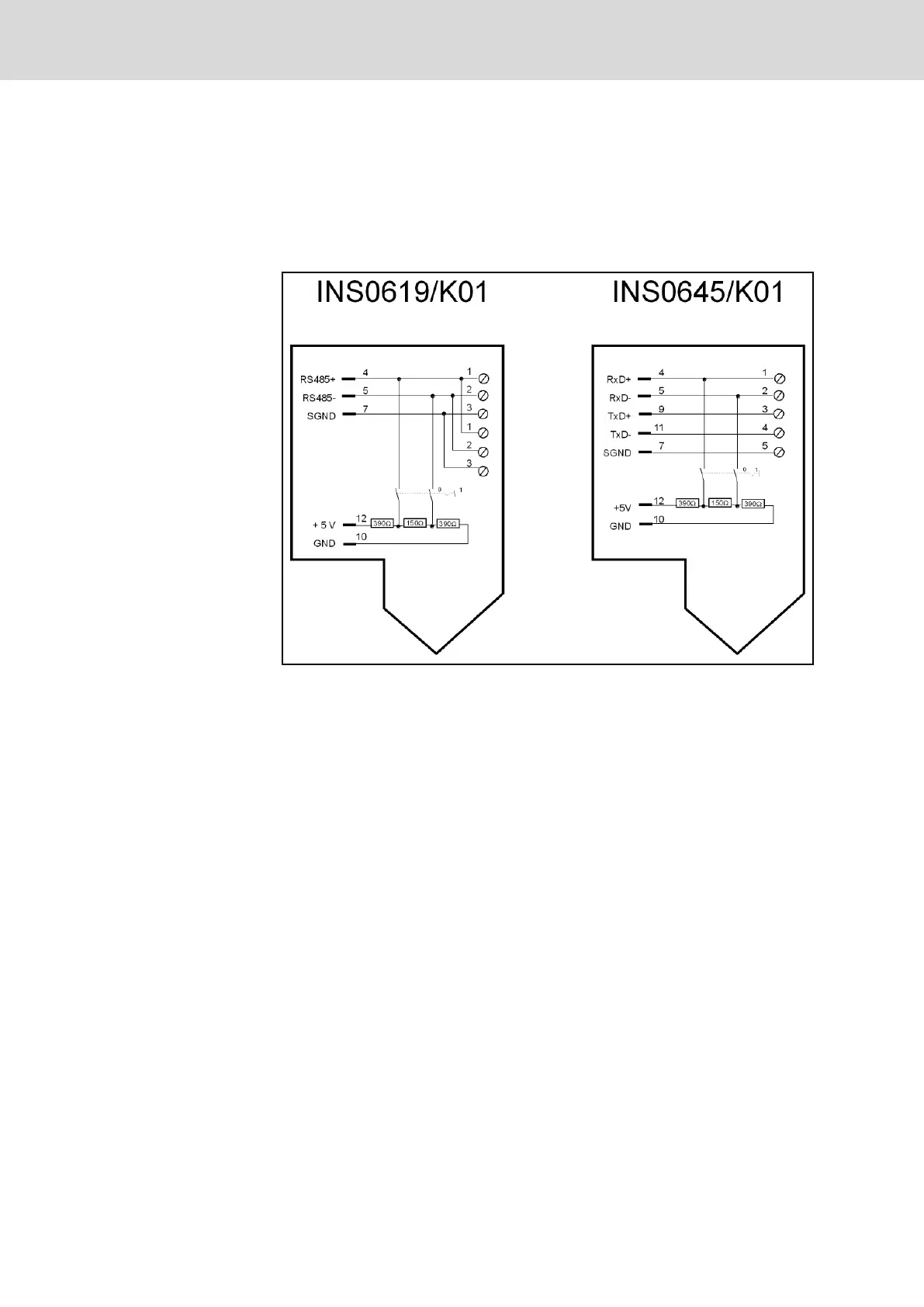

Fig.4-46: Pin assignment of the assembled connector housing
The termination can be activated by a switch.
54/135 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth MTA 200 | Project Planning Manual
Machine Operator Terminal BTV 20.4A
