Pin Designation Pin Designation
1 Video Signal Red 2 Video Signal Green
3 Video Signal Blue 4 N.C.
5 DIG-GND 6 ANA-GND
7 ANA-GND 8 ANA-GND
9 VCC 10 DIG-GND
11 N.C. 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
Fig.4-29: Pin assignment of the SVGA screen connection
Graphics card
AGP graphics card based on ATI Rage
Mobility.
Fig.4-30: Graphics card in BTV 20.3

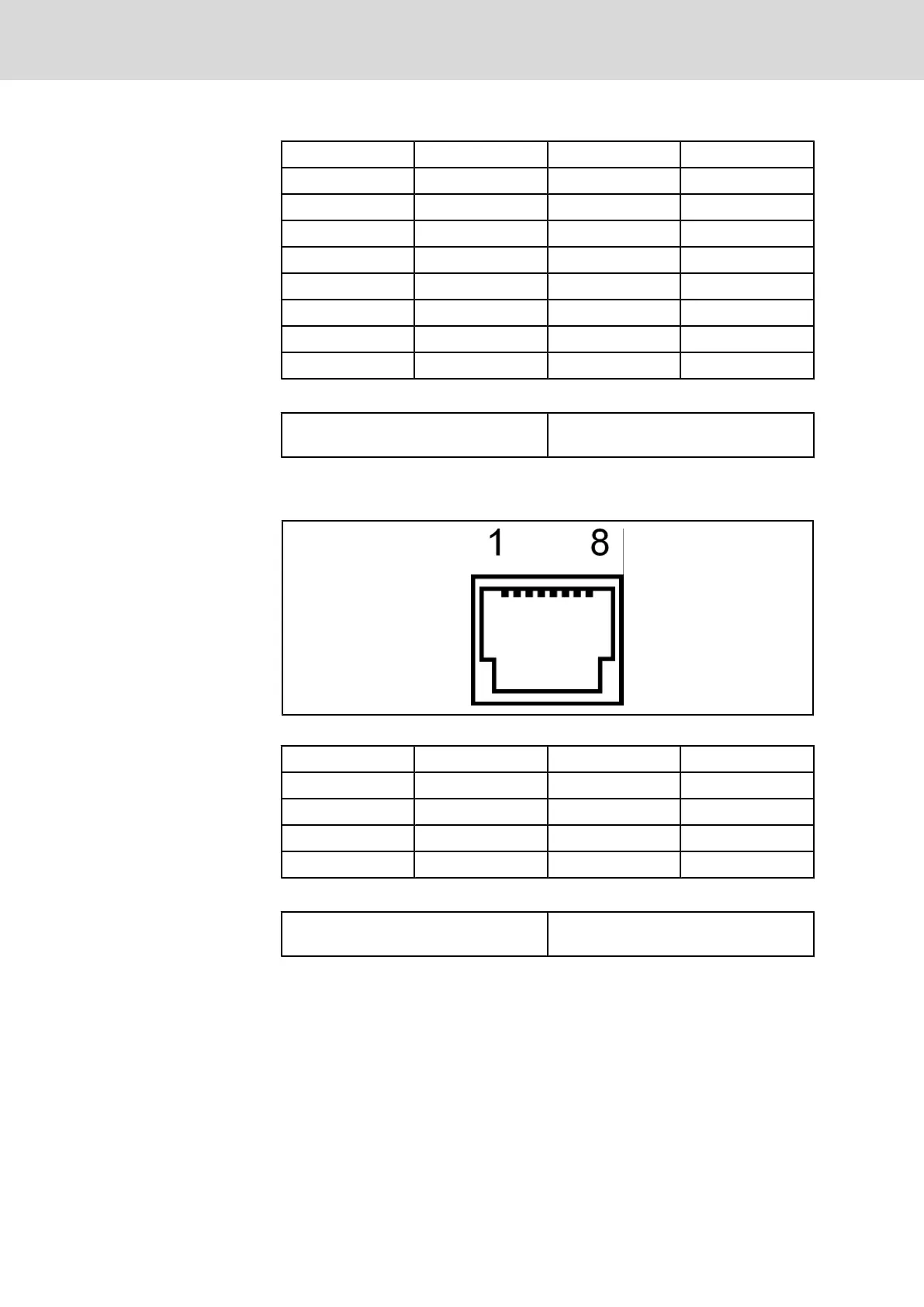

Ethernet Interface (10 Base-T / 100 Base-Tx)
Fig.4-31: Ethernet interface
Pin Designation Pin Designation
1 TxD+ 2 TxD-
3 RxD + 4 N.C.
5 N.C. 6 RxD-
7 N.C. 8 N.C.
Fig.4-32: Pin assignment of the Ethernet interface
Network card
Intel(R) 82559ER PCI 10BASE-T /
100BASE-Tx
Fig.4-33: Network card in BTV 20.4
USB Interface
Universal serial bus with "USB Legacy Keyboard" and "USB-floppy-boot-sup‐
port". Compatible with version 1.0 of the USB standard.
46/135 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth MTA 200 | Project Planning Manual
Machine Operator Terminal BTV 20.4A
