4.2.3 Keys General Information
General Information

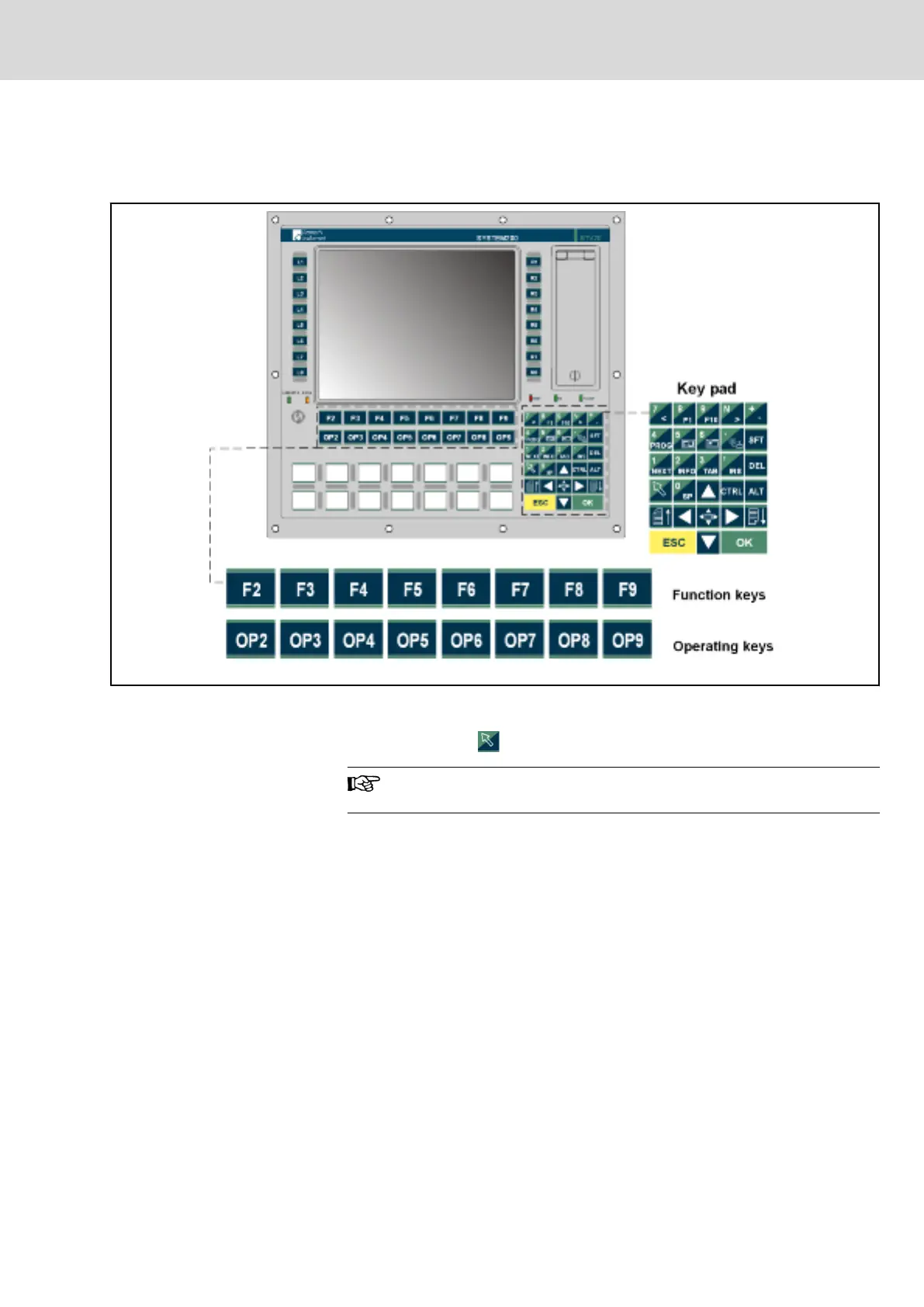

Fig.4-5: Position of OP keys and F keys
The second function of double assigned keys can be triggerd by the shortcut
"Arrow key" (Shift) .
The OP key row can also be individually labeled by slide-in strips
(see chapter 4.2.6 "Replacing the Slide-in Strips" on page 31).
Explanation and Replication of Keys
The BTV 20 keys can be replicated with a PC keyboard by the following short‐
cuts :
Project Planning Manual | Rexroth MTA 200 Electric Drives
and Controls
| Bosch Rexroth AG 27/135
Machine Operator Terminal BTV 20.4A
