Brother JS1410 User Manual

Application of
Assembly
3 - 56
Main motor unit
Application o
f
Assembly
Application of
Assembly

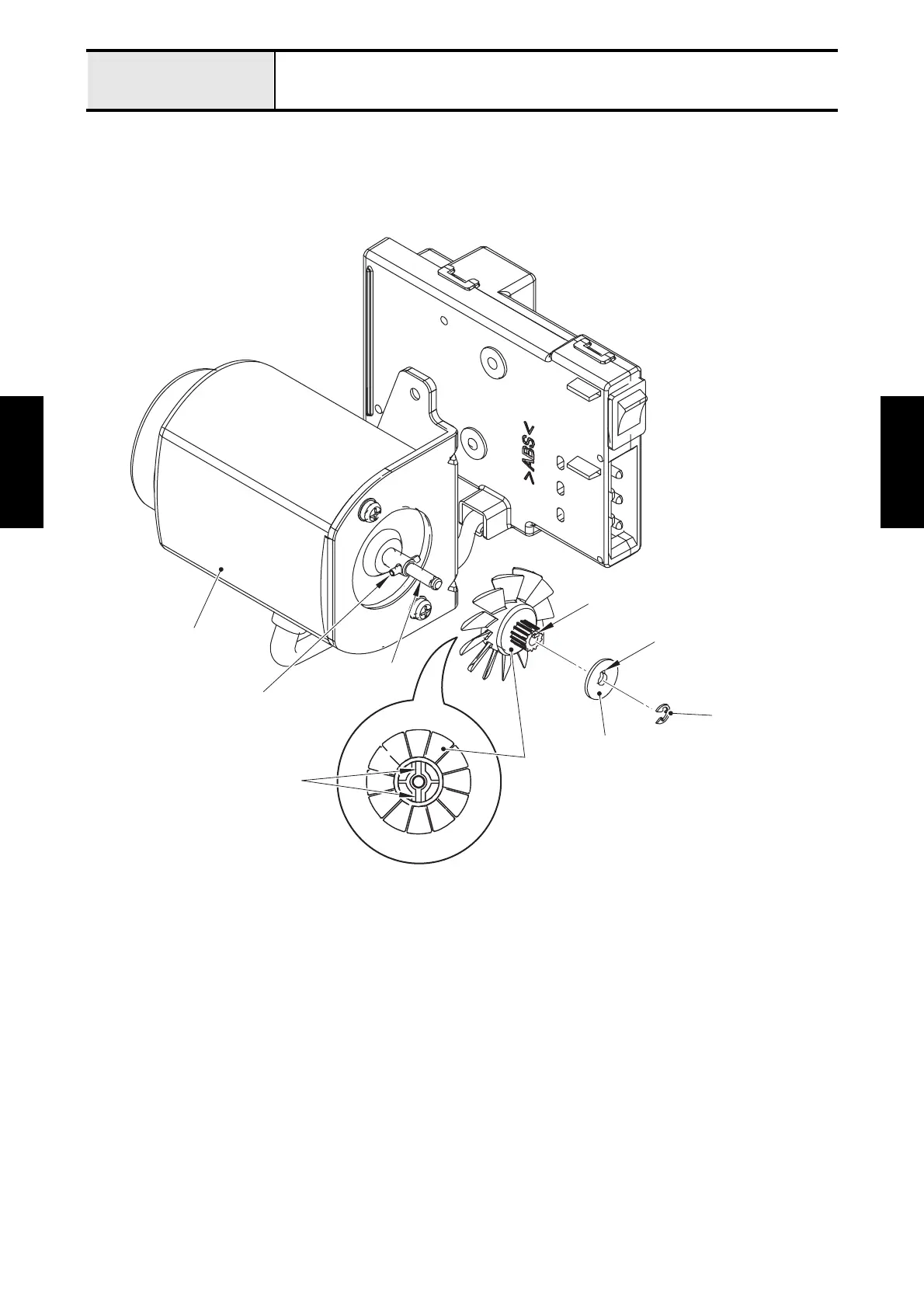

1 Assembly of Motor 3P supply assy
1. Insert the motor T-pulley into the shaft of motor 3P supply assy, and insert the pin into the grooves of
motor T-pulley. And then align the tab of motor T-pulley with the notch part of frange, and set it. And
secure them with the retaining ring E3.
Motor 3P supply assy
Retaining ring E3
Frange
Shaft
Motor T-pulley
Pin
Grooves
Notch part
Tab
