Application of
Disassembly
3 - 4
Main frame and Covers
Application o
f
Disassembly
Application of
Disassembly

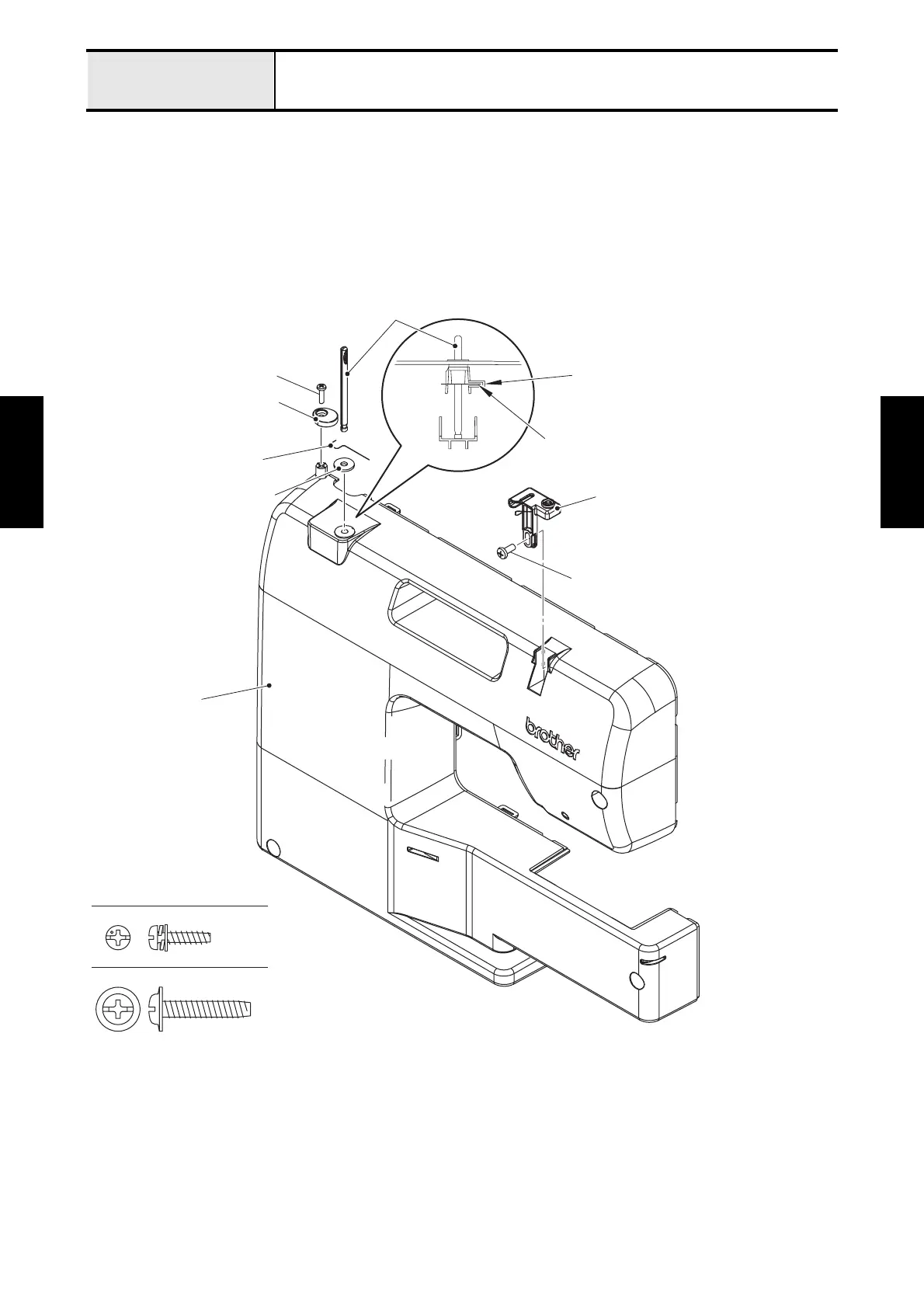

2 Disassembly of Rear cover assy
1. Remove the spool pin from the rear cover while pulling the spool pin spring.
2. Remove the spool pin spring from the rear cover.
3. Remove the spool pin stand from the rear cover.
4. Remove the screw (taptite, pan P (S/P W) 3X12) to remove the bobbin presser from the rear cover.
5. Remove the screw (taptite, cup P M4X20) to remove the thread guide assy from the rear cover.
Taptite, Cup P M4X20
Taptite, Pan P (S/P W) 3X12
Taptite, pan P (S/P W) 3X12
Thread guide assy
Taptite, cup P M4X20
Bobbin presser
Spool pin spring
Spool pin stand
Spool pin spring
Positioning groove
Spool pin
Rear cover
