Basic of Disassembly
2 - 8
Main motor unit
Basic of
Disassembly
Basic of
Disassembly

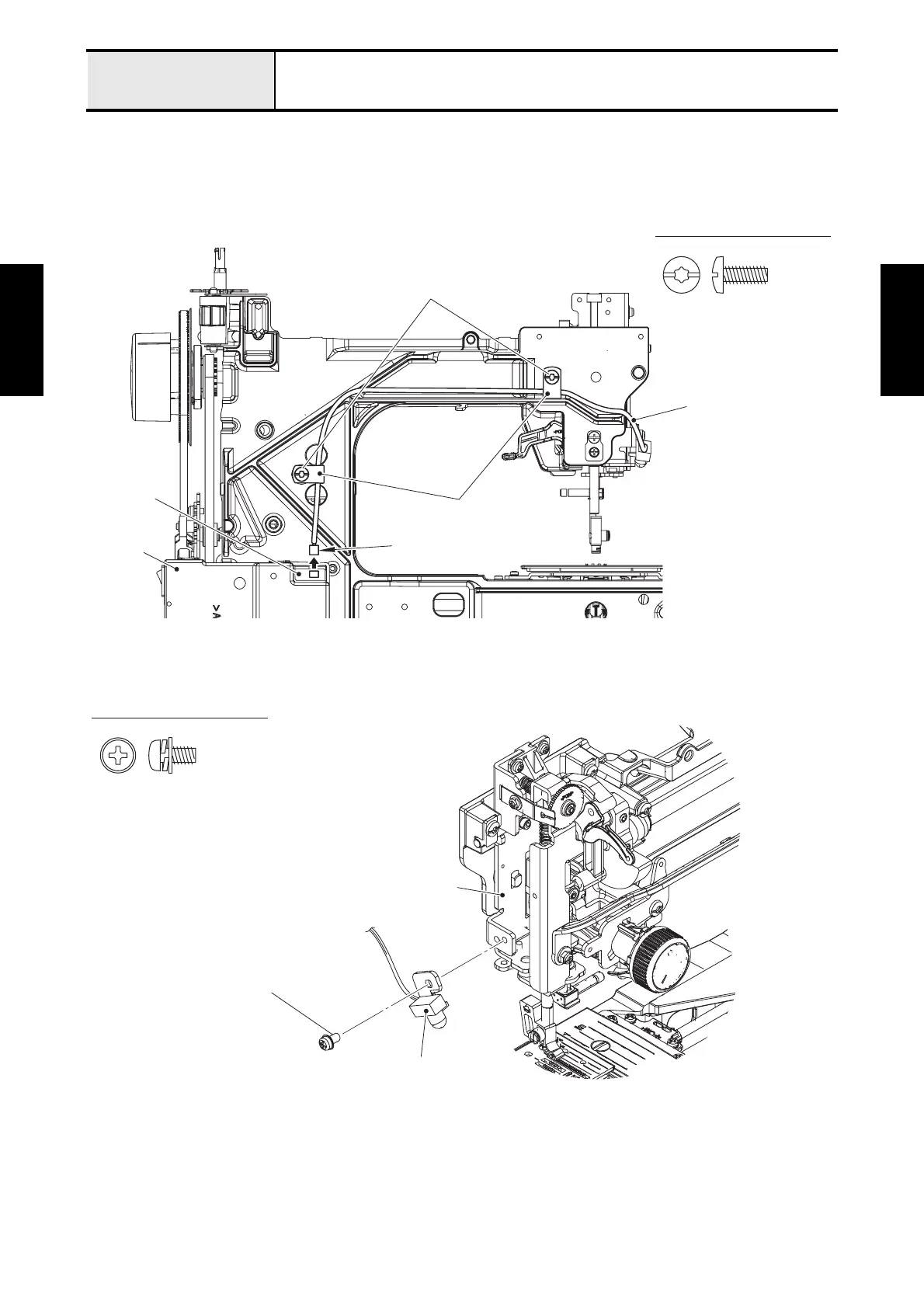

1 Removal of LED lamp assy
1. Remove the two screws (taptite, bind S M4X10) to remove the two cord clamps from the arm bed, and
then remove the two cord clamps from the lead wire of LED lamp assy.
2. Disconnect the connector of LED lamp assy from the PCB of motor 3P supply assy.
3. Remove the screw (screw, pan (S/P washer) M4X8) to remove the LED lamp assy from the base holder
assy.
Taptite, Bind S M4X10
Taptite, bind S M4X10
Lead wire of LED
lamp assy
PCB
Connector of LED
lamp assy
Cord clamps
Motor 3P
supply assy
Screw, Pan (S/P washer) M4X8
Base holder assy
Screw, pan (S/P washer) M4X8
LED lamp assy
