Basic of Assembly
2 - 42
Main motor unit
Basic of
Assembly
Basic of
Assembly

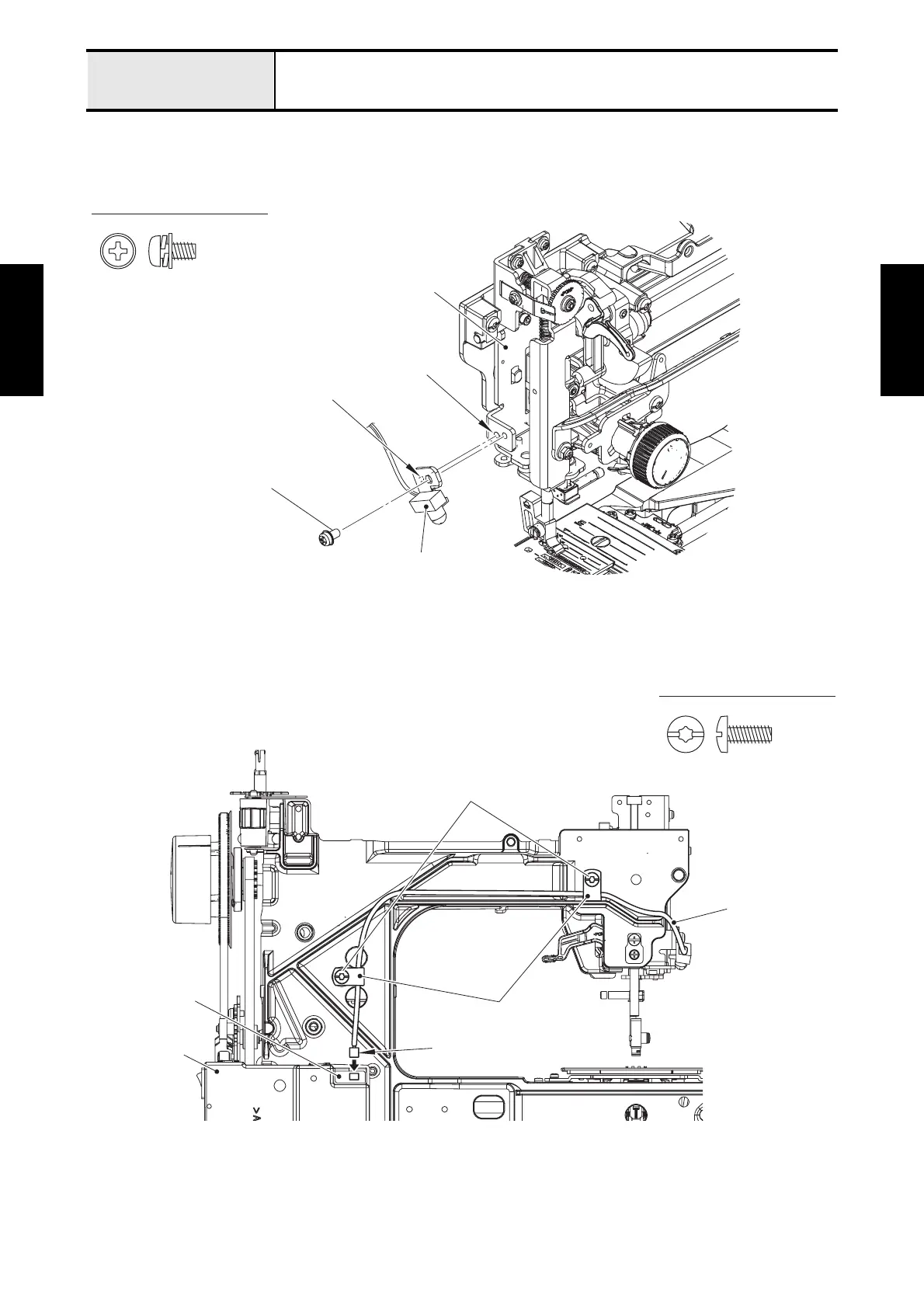

2 Attachment of LED lamp assy
1. Align the boss of LED lamp assy with the positioning hole of base holder assy, and attach it with the
screw (screw, pan (S/P washer) M4X8).
2. Connect the connector of LED lamp assy to the PCB of motor 3P supply assy.
3. Set the cord clamp to the lead wire of LED lamp assy, and attach it to the arm bed with the screw
(taptite, bind S M4X10). (2 locations)
Screw, Pan (S/P washer) M4X8
Positioning hole
Boss
Screw, pan (S/P washer) M4X8
LED lamp assy
Base holder assy
Taptite, Bind S M4X10
Taptite, bind S M4X10
Lead wire of LED
lamp assy
PCB
Connector of LED
lamp assy
Cord clamps
Motor 3P supply assy
