Brother JS1410 User Manual

Basic of Assembly
2 - 24
Bobbin winder, Upper shaft, Needle-presser module
Basic of
Assembly
Basic of
Assembly

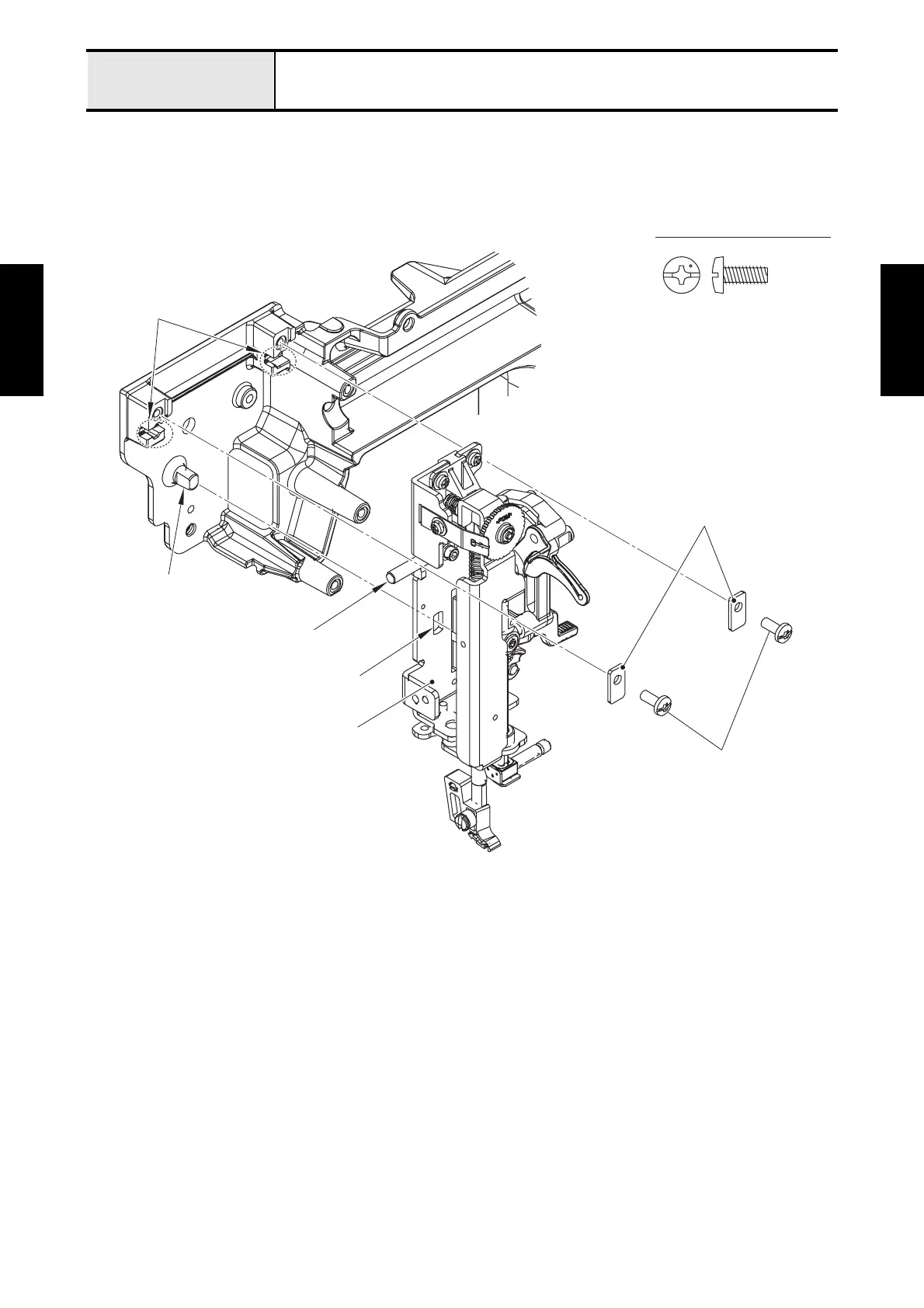

1 Attachment of Needle-presser module
1. Set the shaft of needle-presser module to the two mounting positions on arm bed, and insert the tab of
arm bed into the positioning hole of needle-presser module.
2. Attach the presser plate to the arm bed with the screw (screw, bind M4X10). (2 locations)
Screw, Bind M4X10
Mounting positions
Shaft
Presser plates
Screw, bind M4X10
Positioning hole
Needle-presser module
Tab
