Basic of Disassembly
2 - 9
Main motor unit
Basic of
Disassembly
Basic of
Disassembly

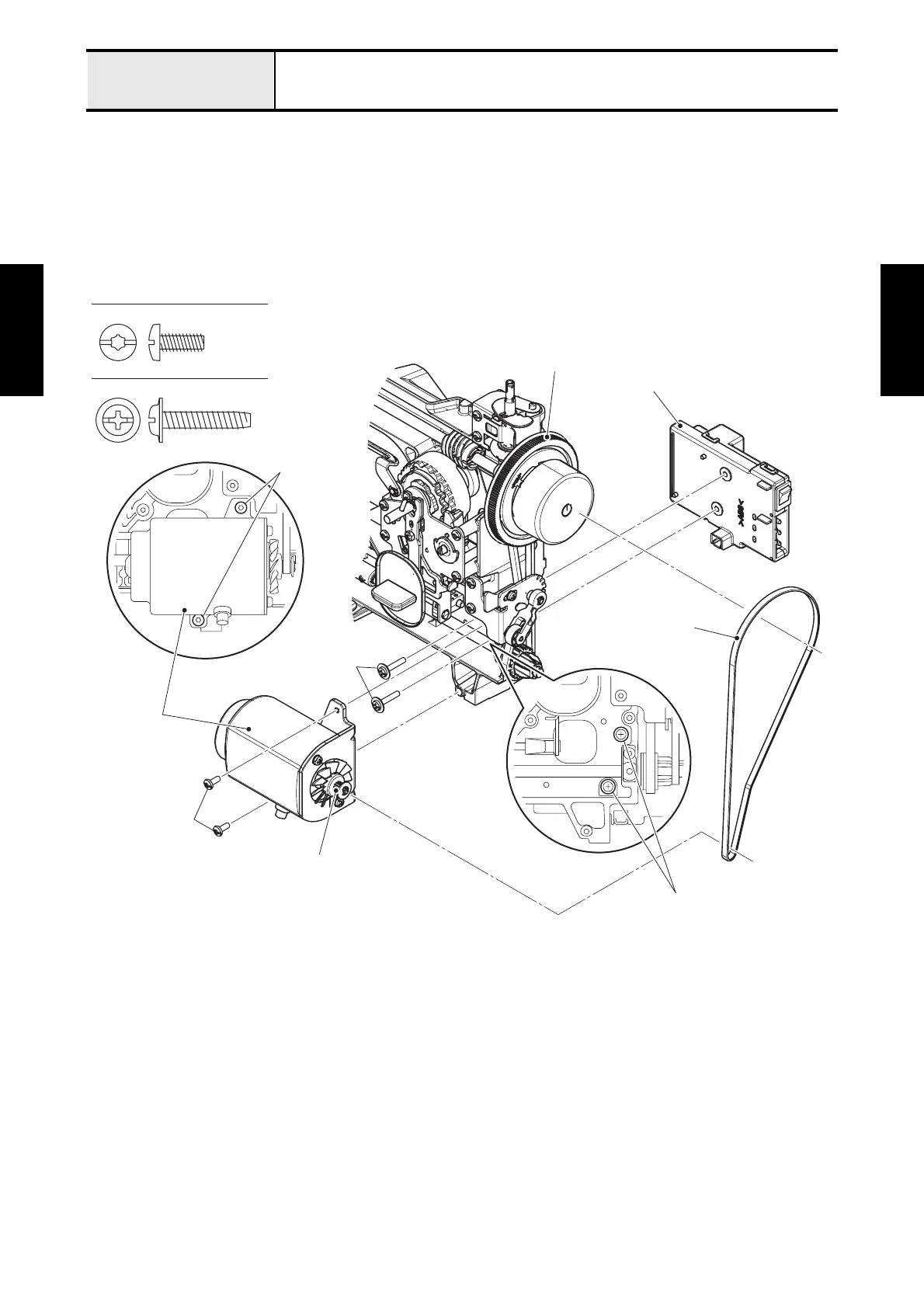

2 Removal of Motor 3P supply assy
1. Remove the timing belt from the T pulley and motor T-pulley.
2. Remove the two screws (taptite, bind S M4X10) to remove the motor assy of motor 3P supply assy
from the arm bed.
3. Remove the two screws (taptite, cup P M4X20) to remove the 3P socket unit of motor 3P supply assy
from the arm bed.
→Refer to 3 - 7 Disassembly of Motor 3P supply assy.
Taptite, Cup P M4X20
Taptite, Bind S M4X10
Motor T-pulley
Taptite, cup P
M4X20
Taptite, bind S
M4X10
Motor assy
Timing belt
3P socket unit
Taptite, bind S
M4X10
Taptite, cup P M4X20
T pulley
