Basic of Assembly
2 - 37
Feed unit / Feed control
Basic of
Assembly
Basic of
Assembly

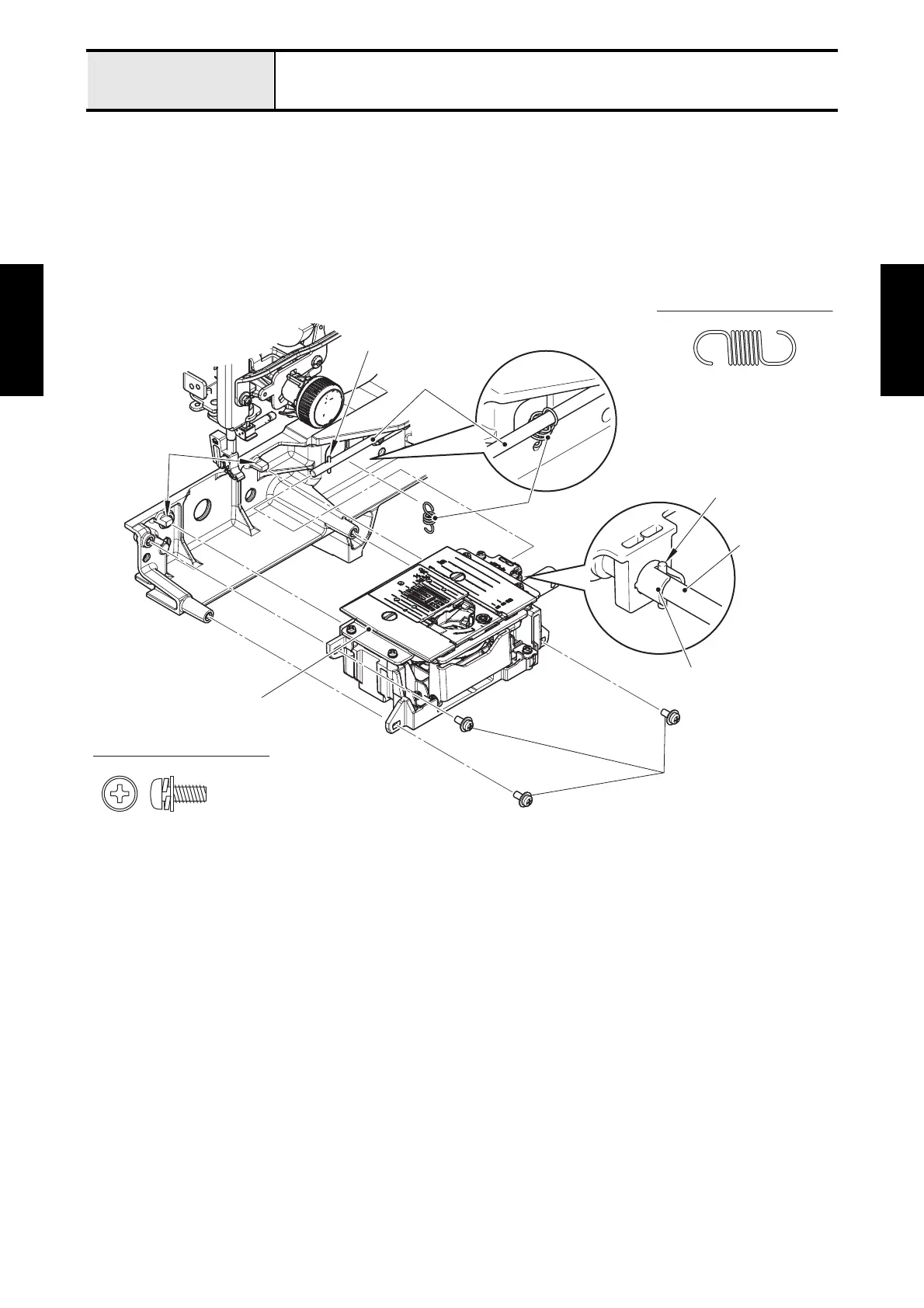

3 Attachment of Feed module
1. Insert the feed adjuster into the feed adjusting shaft of feed connecting lever assy, and set the pin of the
feed adjusting shaft to the two slits of feed adjuster. And insert the two positioning holes of back side of
feed module into the two tabs of arm bed, and set the feed module to the arm bed, and secure it with
the three screws (screw, pan (S/P washer) M4X10).
2. Attach the spring (XF5134) to the feed adjusting shaft of feed connecting lever assy and the arm bed as
shown in the illustration below.
→Refer to 3 - 45 Assembly of Feed module.
Screw, Pan (S/P washer) M4X10
Spring (XF5134)
Pin
Screw, pan
(S/P washer) M4X10
Tabs
Feed module
Feed adjusting
shaft
Feed adjuster
Pin
Feed adjusting
shaft
Spring
(XF5134)
