Basic of Disassembly
2 - 12
Feed unit / Feed control
Basic of
Disassembly
Basic of
Disassembly

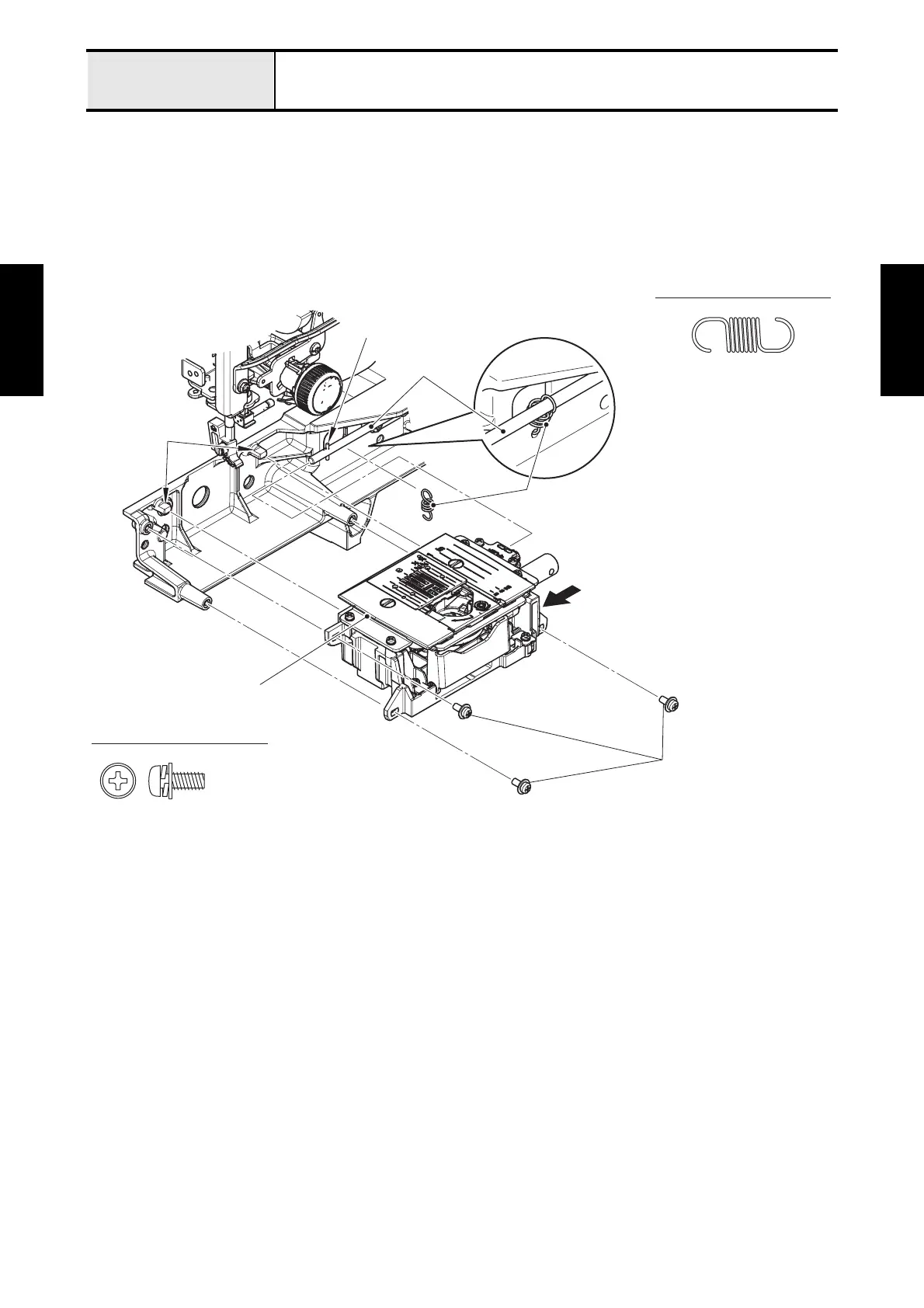

2 Removal of Feed module
1. Remove the spring (XF5134) from the feed adjusting shaft of feed connecting lever assy and the arm
bed.
2. Remove the three screws (screw, pan (S/P washer) M4X10) from the feed module. And lift up the feed
module to remove it from the two bosses on arm bed, and slide it in the direction of the arrow to remove
the feed adjuster of feed module from the feed adjusting shaft of feed connecting lever assy.
→Refer to 3 - 11 Disassembly of Feed module.
Screw, Pan (S/P washer) M4X10
Spring (XF5134)
Feed adjusting
shaft
Screw, pan
(S/P washer) M4X10
Bosses
Feed module
Pin
Spring
(XF5134)
