Brother JS1410 User Manual

Application of
Assembly
3 - 32
Bobbin winder, Upper shaft, Needle-Presser module
Application o
f
Assembly
Application of
Assembly

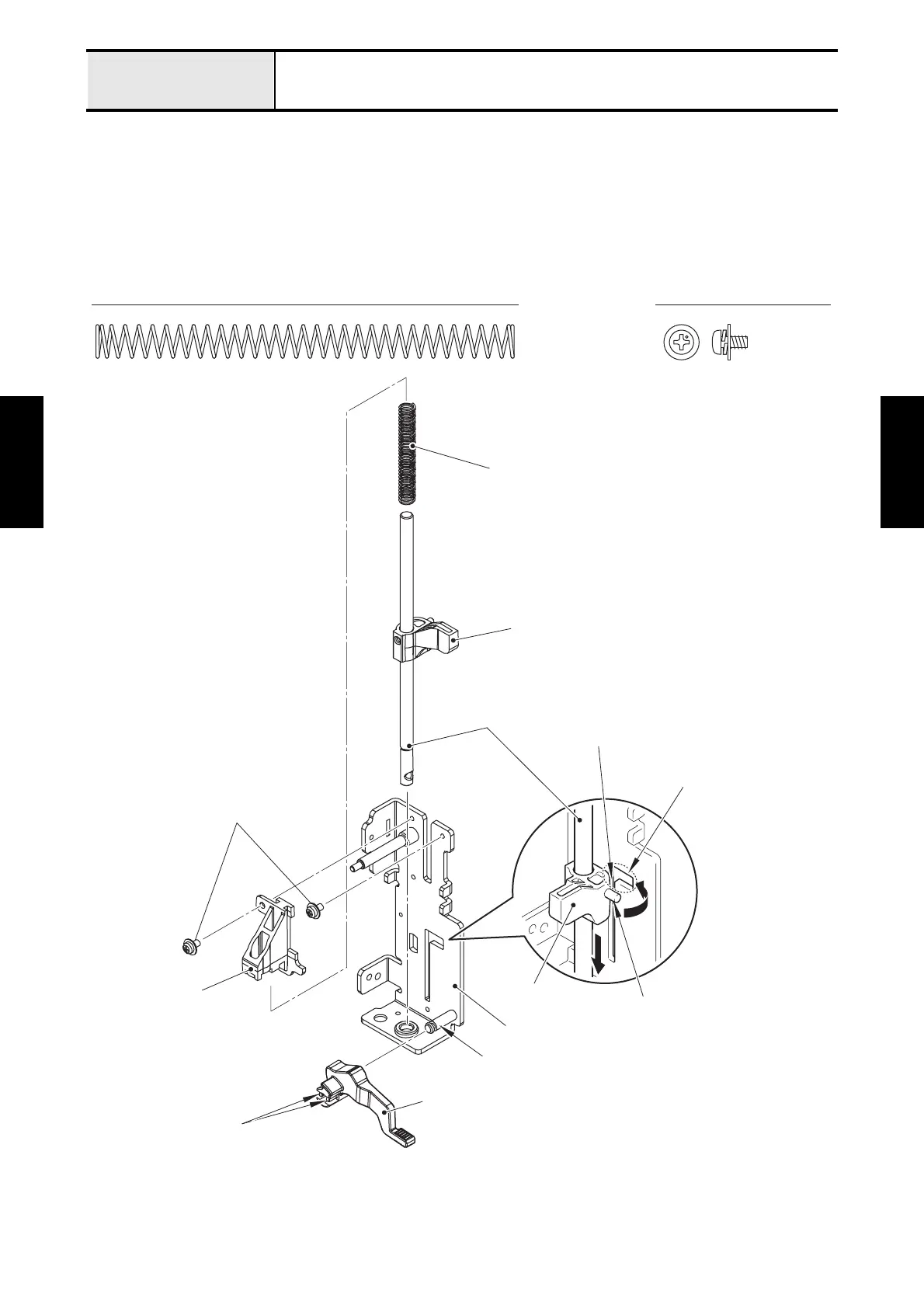

2 Assembly of Needle-presser module
1. Set the presser foot lifter to the shaft of base holder assy, and secure it with the two hooks.
2. Insert the presser bar sub assy into the base holder assy, and slide it to the position where the presser
bar clamp pin matches the notch part. And turn the presser bar sub assy to the direction of the arrow 90
degrees, and align the pin with the groove. And slide the presser bar sub assy to the direction of the
arrow.
3. Set the spring (XC4900) to the presser bar sub assy. And set the presser bar guide to the base holder
assy and the presser bar sub assy, and secure it with the two screws (screw, pan (S/P washer) M3X6).
Screw, Pan (S/P washer) M3X6
Spring (XC4900)
Spring (XC4900)
Presser bar sub assy
Base holder assy
Shaft
Presser foot lifter
Hooks
Screw, pan (S/P washer) M3X6
Presser bar guide
Groove
Presser bar clamp pin
Notch part
Presser bar clamp
Presser bar clamp
