Application of
Disassembly
3 - 10
Feed unit
Application o
f
Disassembly
Application of
Disassembly

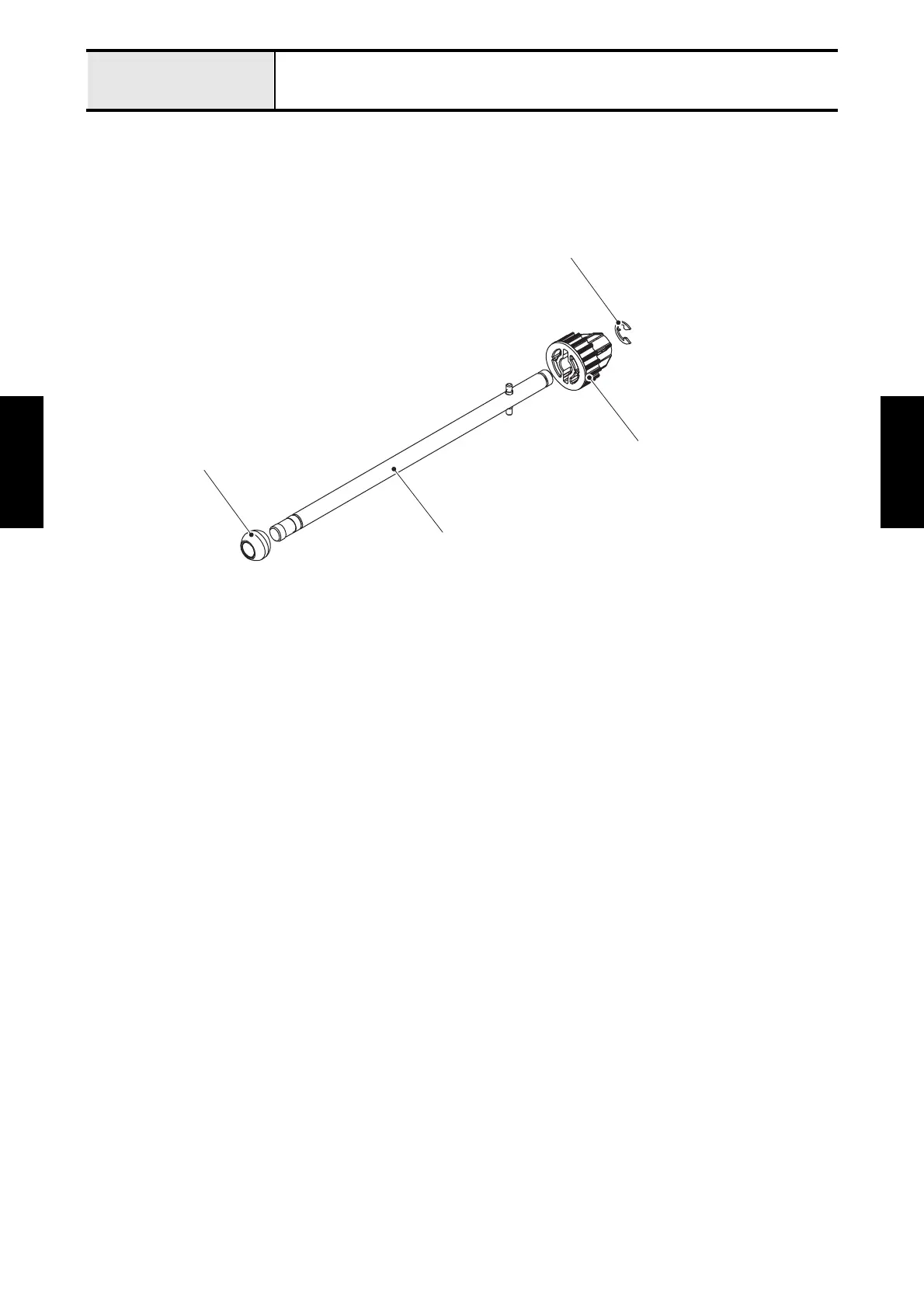

2 Disassembly of Lower shaft B assy
1. Remove the lower shaft bushing from the lower shaft B sub assy.
2. Remove the retaining ring E6 to remove the timing pulley D from the lower shaft B sub assy.
Retaining ring E6
Timing pulley D
Lower shaft B sub assy
Lower shaft bushing
