Brother MFC-J2330DW Service Manual

3-13
Confidential

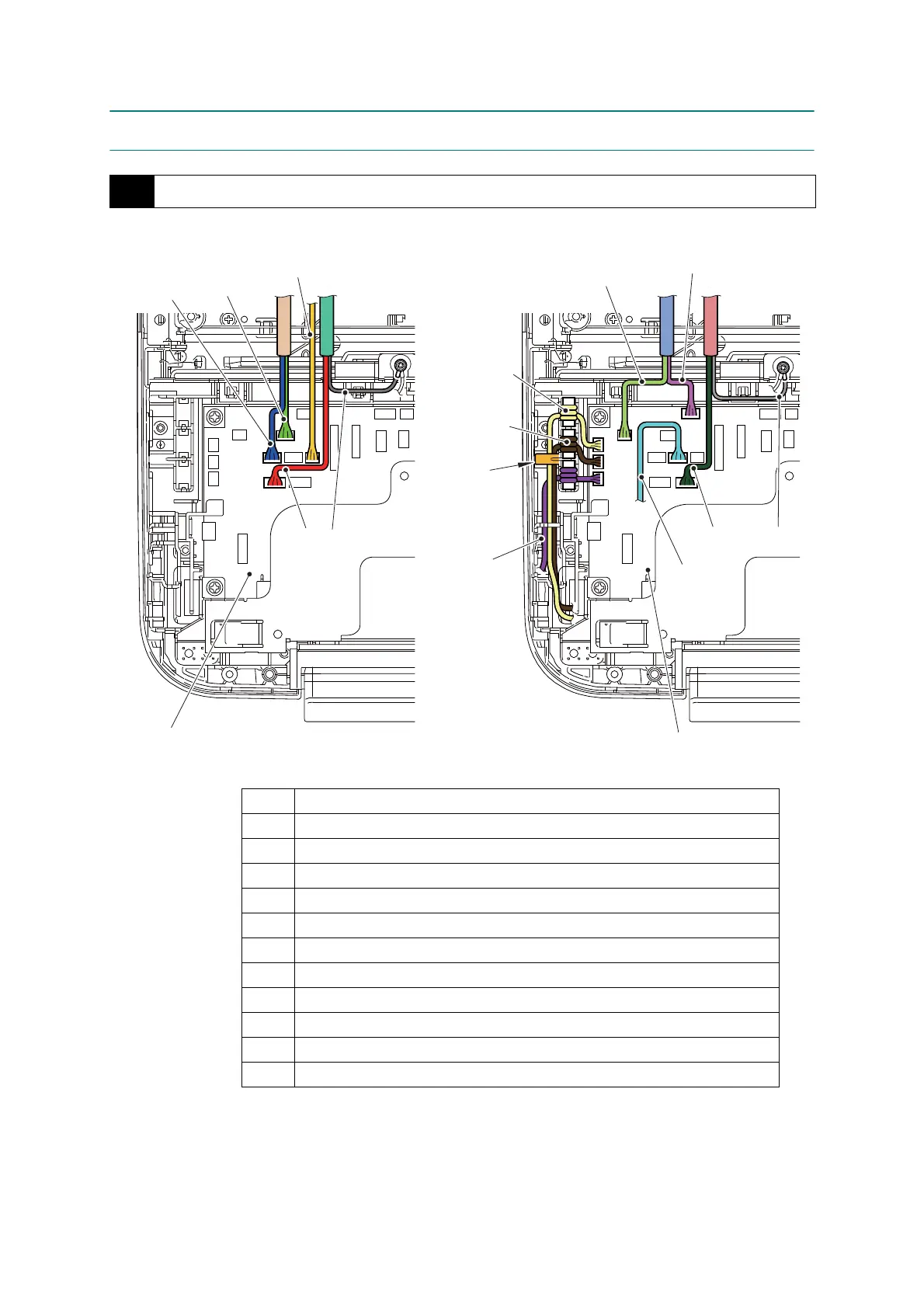

7 ROUTING OF HARNESSES AND INK SUPPLY TUBES
1 Main PCB
No. Harness name
1 ADF document detection sensor harness
2 Document scanning position sensor harness ASSY
3 ADF cover sensor harness
4 ADF motor harness
5 Carriage motor harness
6 ASF motor harness
7 PF motor harness
8 Document cover sensor harness
9 MP paper detection sensor harness
10 Document scanner sensor harness
11 FB motor harness
1
2
3
4
8
5
11
10
7
6
Main PCB
9
Main PCB
ADF FG wire
Cable
FB FG wire
guide
