3-76
Confidential

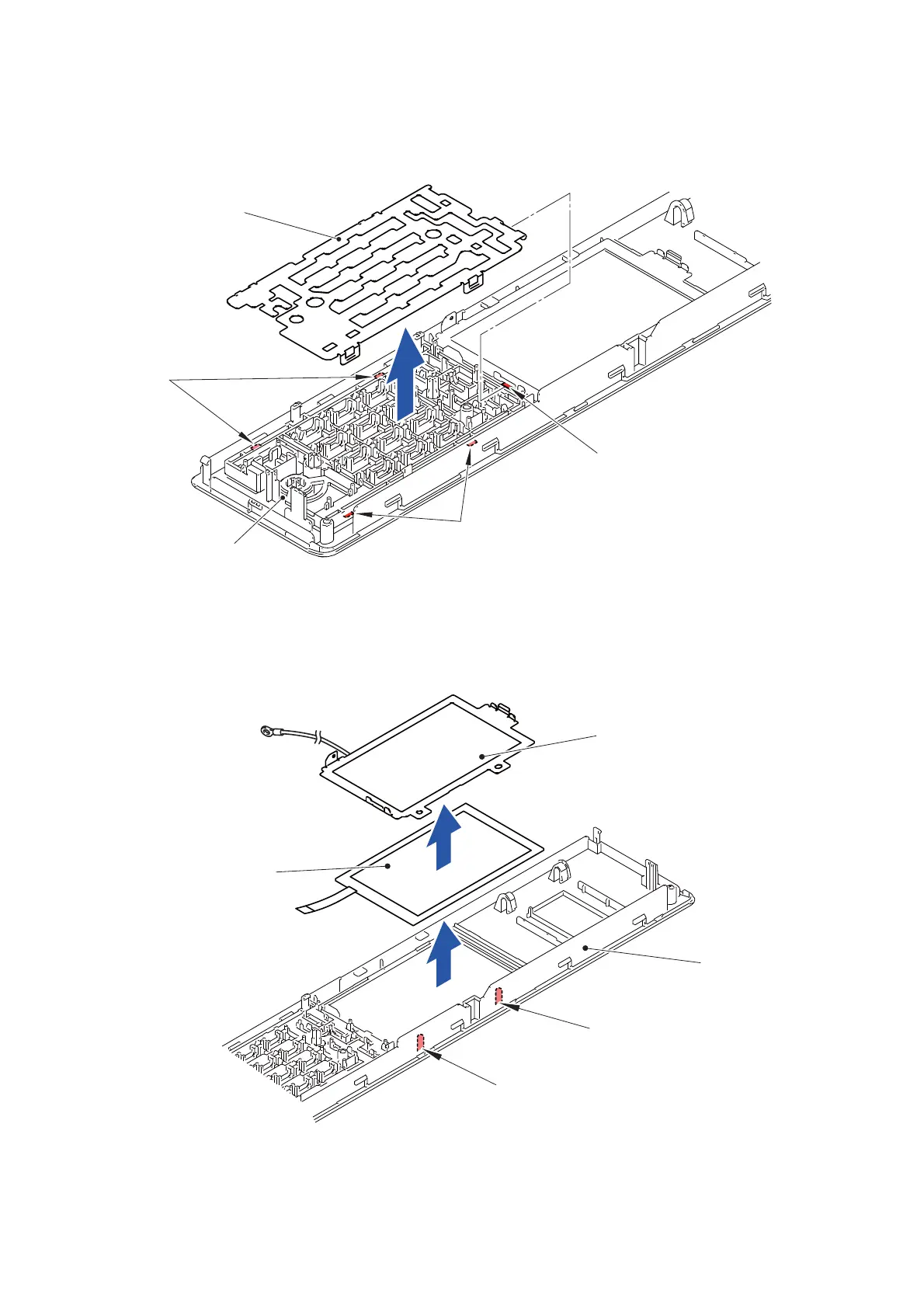

9.30 Touch Panel
(1) Release the five Hooks and remove the Antistatic plate from the Key holder ASSY.
Fig. 3-76
(2) Remove the Touch panel plate from the Panel upper cover.
(3) Remove the Touch panel from the Panel upper cover.
Fig. 3-77
Hooks
Hooks
Hook
Antistatic plate
Key holder ASSY
2
3
Touch panel plate
Touch panel
Panel upper
Boss
Boss
cover
