3-33
Confidential

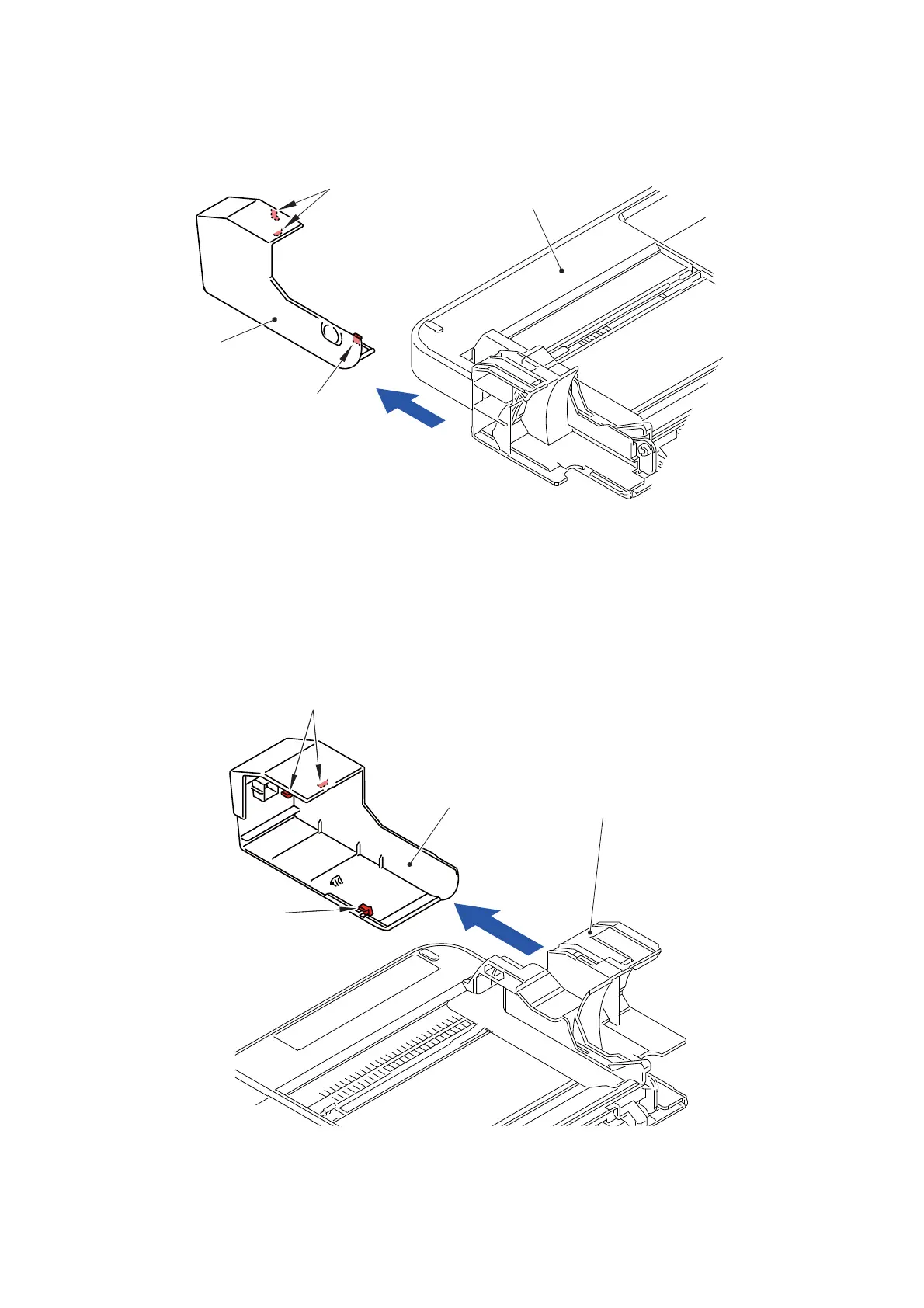

(3) Release the three Hooks and remove the MP side cover L from the Paper support
ASSY.
Fig. 3-3
9.3 MP Side Cover R
(1) Release the three Hooks and remove the MP side cover R from the Paper support
ASSY.
Fig. 3-4
Paper support ASSY
Hooks
MP side cover L
Hook
Hooks
Paper support ASSY
MP side cover R
Hook
