3-100
Confidential
(9) Release the two Hooks and remove the Switchback sensor PCB from the Main
body.

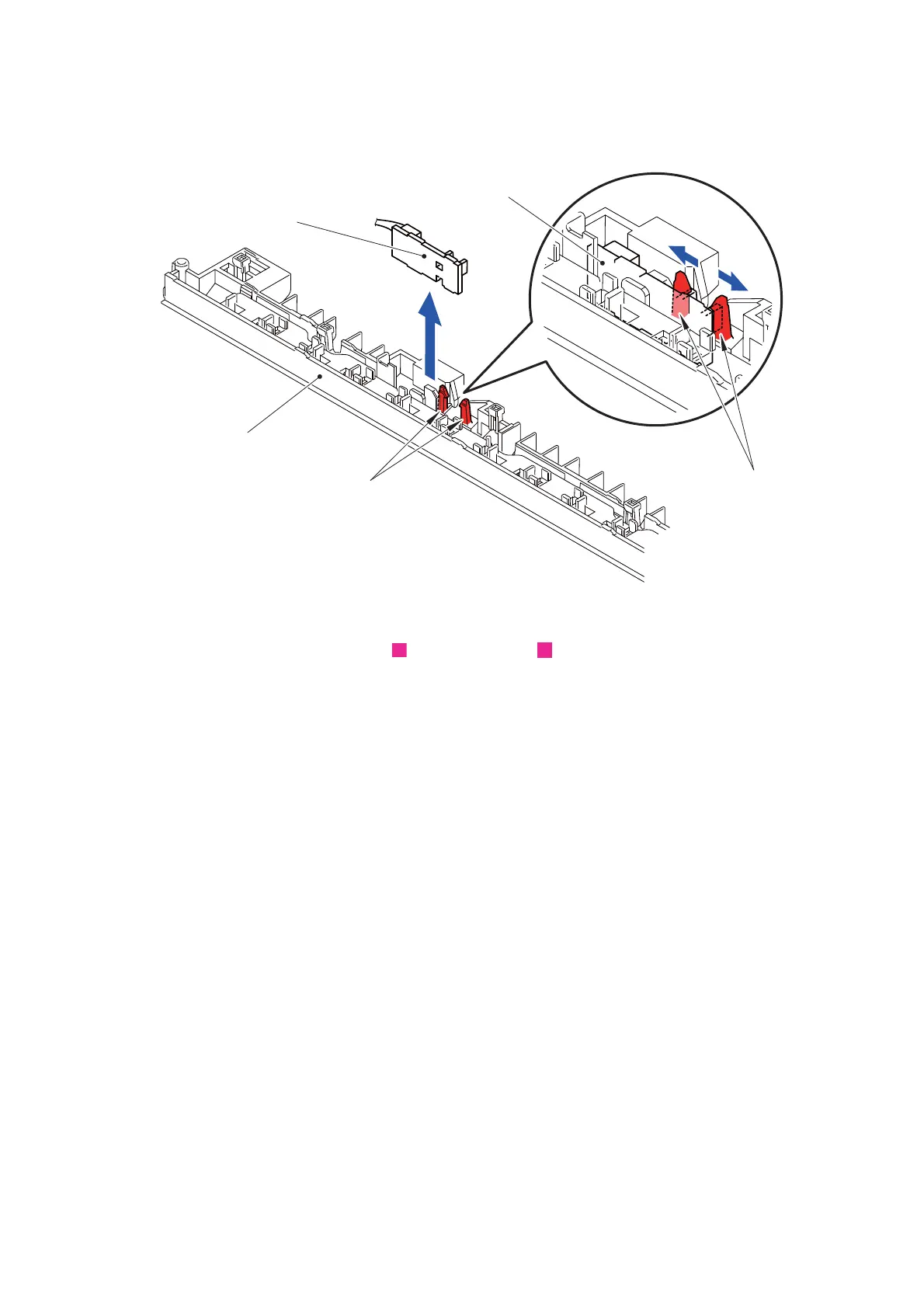

Fig. 3-117
Routing of harnesses: See “ Lower cover”, “ Switchback sensor PCB”.
Hooks
Switchback sensor PCB
Hooks
Switchback sensor PCB
Switchback sensor PCB
Main body
10
