3-110
Confidential
9.48 Power Supply PCB ASSY
(1) Remove the screw (TAPTITE CUP B M3x10) from the Lower cover.
(2) Release the Hook and remove the Power supply unit from the Lower cover.

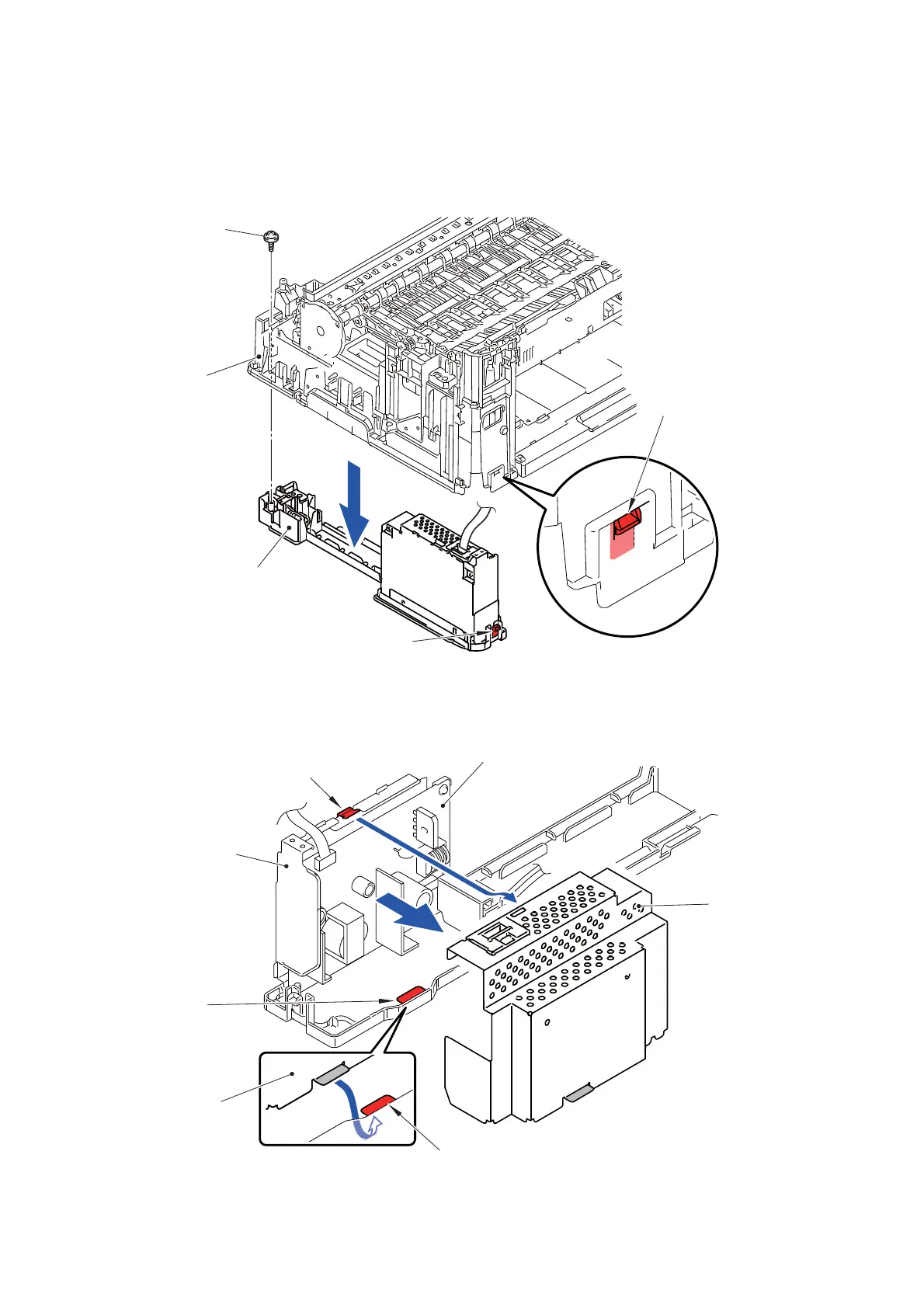

Fig. 3-133
(3) Release the two Hooks and remove the Power supply shield from the Power
supply unit.
Fig. 3-134
Hook
Hook
TAPTITE CUP
Lower cover
B M3x10
Power supply unit
Hook
Hook
Hook
Power supply PCB ASSY
Power supply
Power supply
Power supply unit
shield
shield
