3-64
Confidential
9.23 Upper Cover

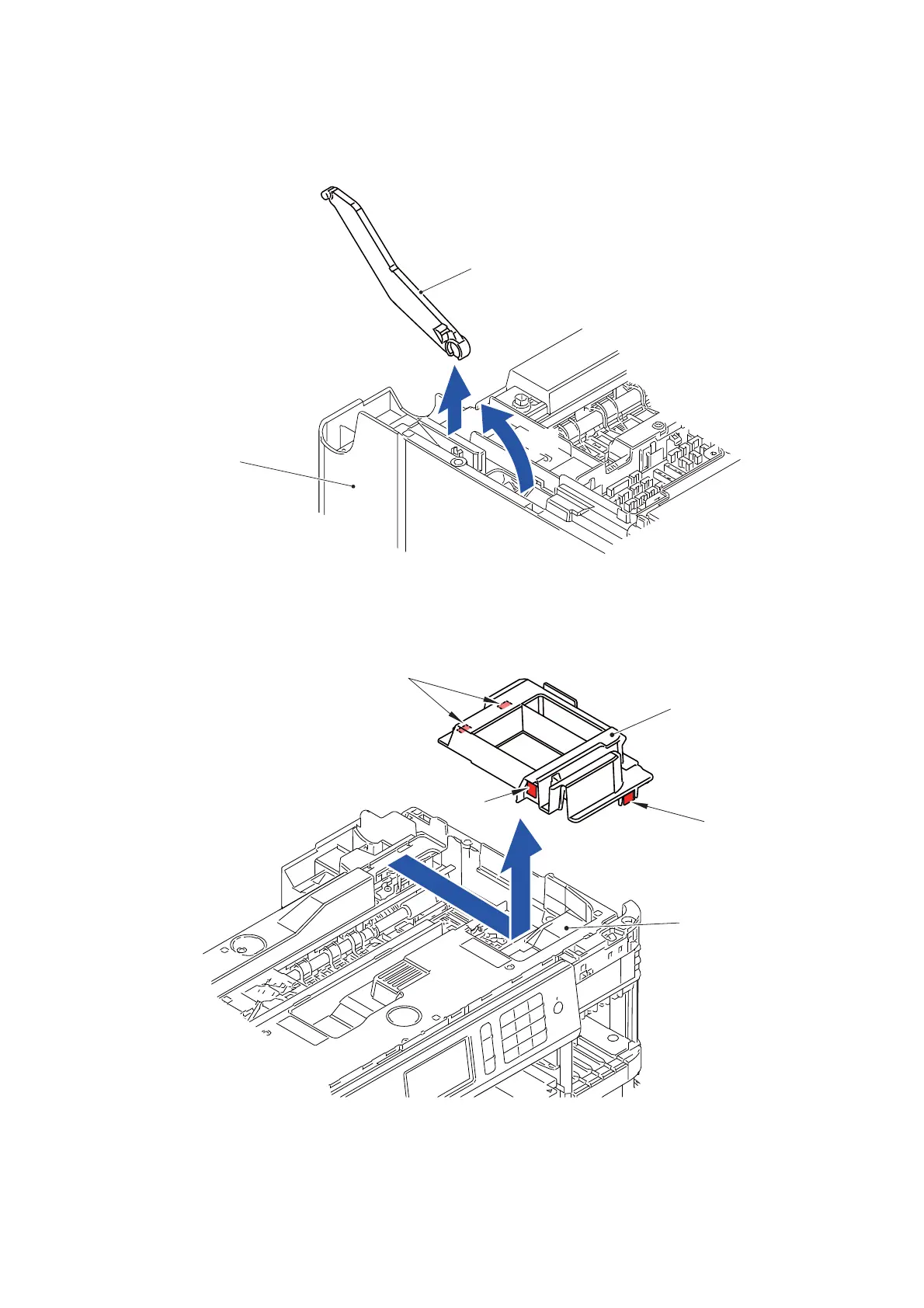

(1) Remove the FB stopper from the Upper cover in the order of the arrow 1a and 1b.
Fig. 3-56
(2) Release the four Hooks and remove the Edge cover from the Upper cover.
Fig. 3-57
Upper cover
FB stopper
1b
1a
Edge cover
Hooks
Upper cover
Hook
Hook
