9.39 Ink Absorber Felt (For Ink Refill ASSY)/Ink Absorber Felt (For Ink Refill
ASSY)2
(1) Remove the Ink absorber felt (For ink refill ASSY) from the Lower cover.
(2) Remove the Ink absorber felt (For ink refill ASSY)2 from the Lower cover.
(3) Remove the other Ink absorber felt (For ink refill ASSY)2 in the same way.

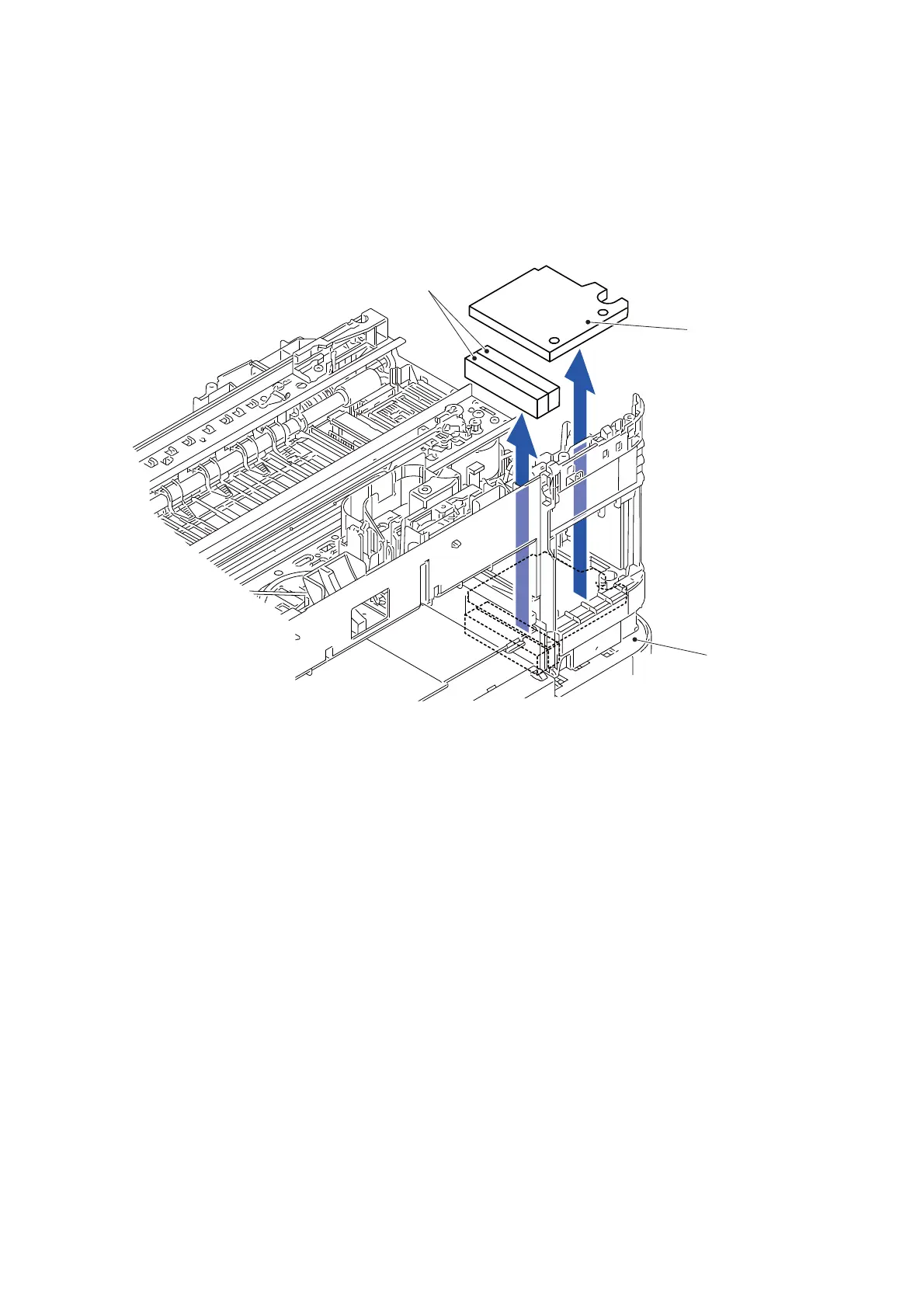

Fig. 3-104
Ink absorber felt
Lower cover
(For ink refill ASSY)
Ink absorber felt
(For ink refill ASSY)2
