3-105
Confidential

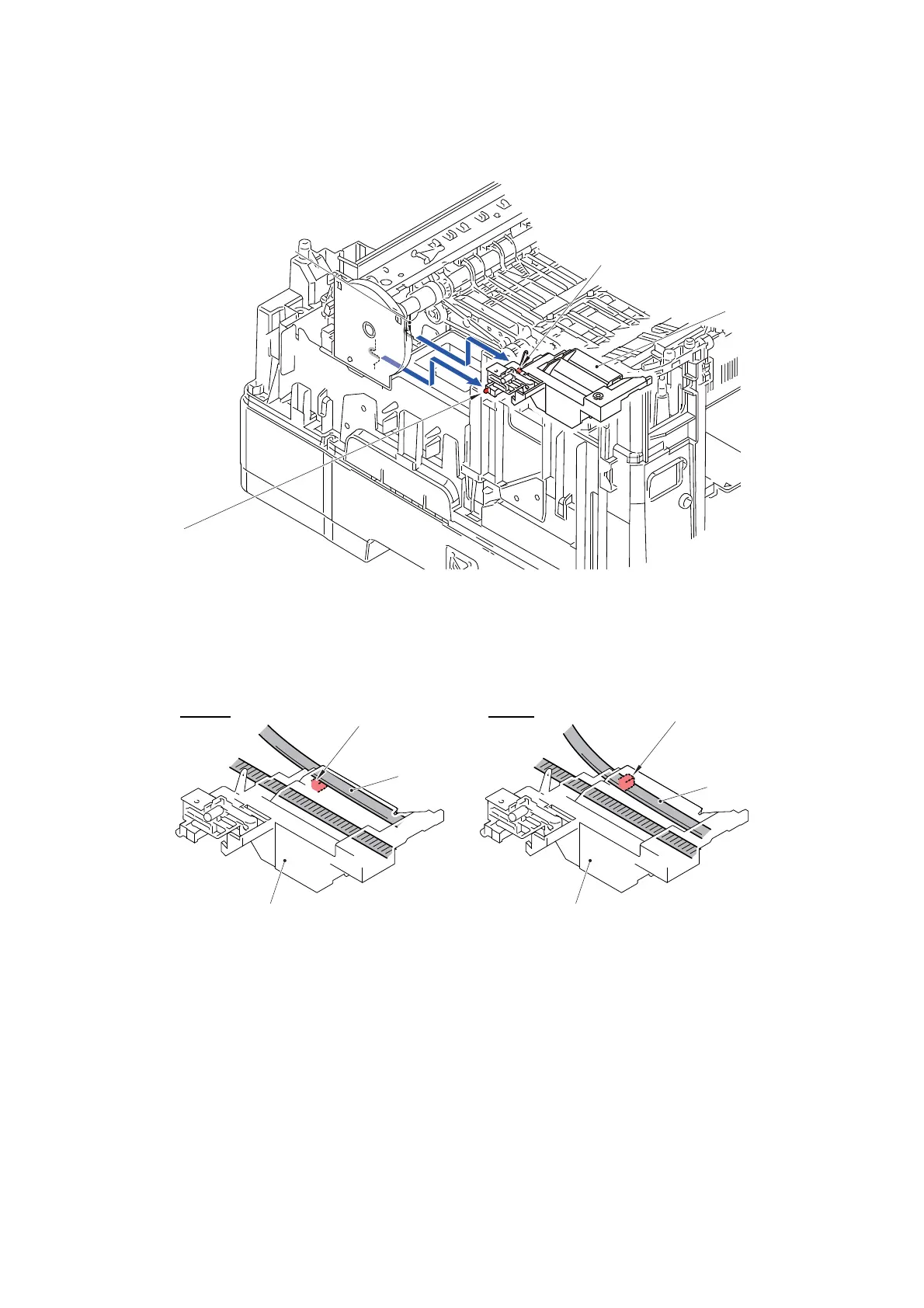

9.45 Flushing Base
(1) Remove the Flushing base from the PF motor frame.
Fig. 3-125
Assembling Note: Assemble not to put the section “A” of the Flushing base over the
Switchback roller belt.
Fig. 3-126
Boss
Boss
Flushing base
PF motor frame
Flushing base
Flushing base
WrongCorrect
Switchback
roller belt
Switchback
roller belt
“A”
“A”
