3-84
Confidential

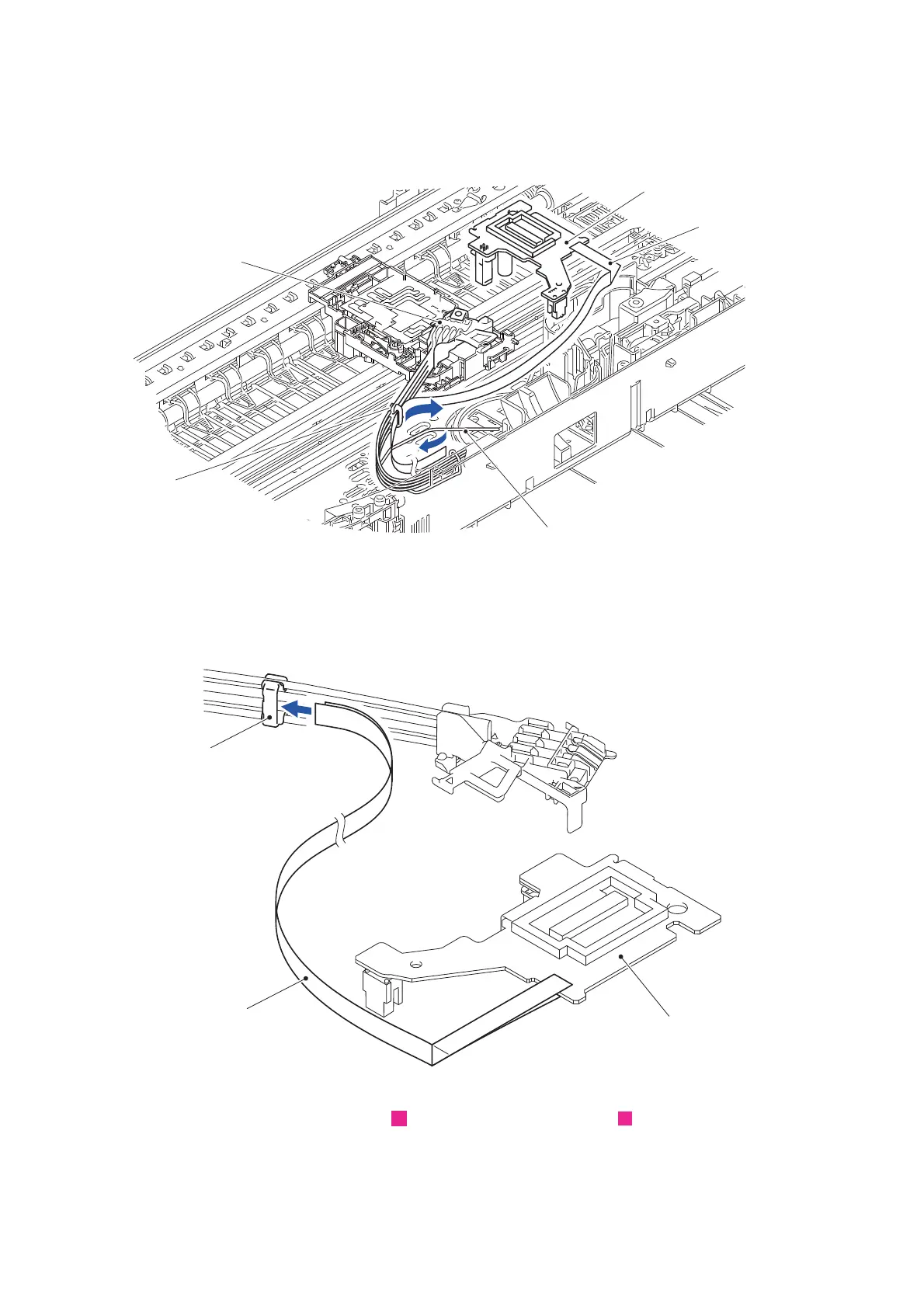

(11)Release the wiring of the Flat cable of the Carriage PCB ASSY and pull it out from
the Tube clamp.
Fig. 3-91
Note: When assembling the Flat cable of the Carriage PCB ASSY, be careful about the
front side and reverse side of the Flat cable.
Fig. 3-92
Routing of harnesses: See “ Main PCB/Modem PCB”, “ Head/carriage unit”.
Carriage PCB ASSY
Tube
Tube
Head joint
support wire
Flat cable of the
Carriage PCB ASSY
clamp
Tube clamp
Flat cable of the
Carriage PCB ASSY
Carriage PCB ASSY
3
