BRP Evinrude E-TEC G2 150 HP User Manual

20
Networks
Specifications
NMEA 2000 Network
Cable Requirements
NMEA 2000 specifies the following requirements:
NMEA 2000 specifies the following wire colors:
• Power supply (+VDC): Red
• Ground (–VDC): Black
• Shield (Drain): Bare
• Data HI (Signal): White
• Data LOW (Signal): Blue
Grounding Requirements
Identify which battery supplies power to the net-
work. Connect all power supply batteries in paral-
lel. Ground the NMEA 2000 network directly to the
negative terminal of the PRIMARY or power sup-
ply battery.
See Battery Installation on p. 30.
Linear Architecture
Linear describes the NMEA 2000 network as con-
nected in a line. Assemble NMEA 2000 networks
using a “linear” architecture. Maintain the linear
architecture whenever a t-connector, buss cable,
or device is added.
Number of Devices
50 maximum.
Network Buss Length
328 ft. (100 m) maximum.
Device Cable Lengths
Individual device cable lengths: 19 ft. (6 m) maxi-
mum. Total device cable length: 256 ft. (78 m).
Refer to the current NMEA 2000 Network Guide.
NMEA 2000 Cable (Light/Micro Buss)
Maximum Current 4 AMPS
Resistance - Power Wire(s) 5.40 Ω per 100 M
Power Wire Size 22 AWG
Data Wire Size 24 AWG

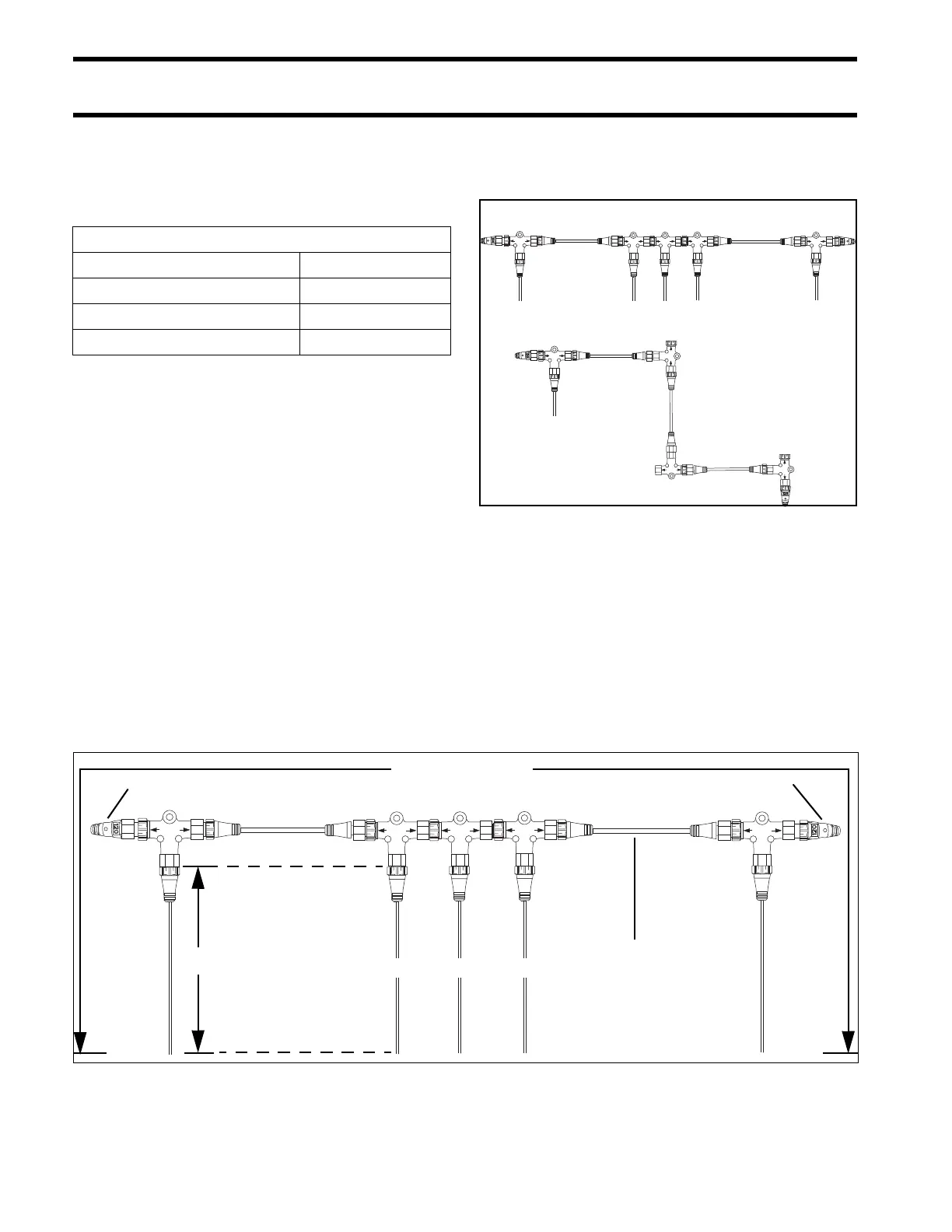

NMEA 2000 Network Linear Architecture
008634
DEVICE
DEVICE
BUSS
BUSS
DEVICE
DEVI
CE
BUSS
B
USS
DEVICE
DEVICE
BUS
S
BUSS
DEVICE
DE
V
ICE
B
U
S
S
B
US
S
DEVICE
DEVICE
BUSS
BUSS
DEVICE
DEVICE
BUSS
BUSS
DEVICE
DEVICE
BUSS
BUSS
DEVICE
DEVICE
BUSS
BUSS
DEVICE
DEVICE
BUSS
BUSS
Correct
Not Correct
DEVICEDEVICE
BUSSBUSS
DEVICEDEVICE
BUSSBUSS
DEVICEDEVICE
BUSSBUSS
DEVICEDEVICE
BUSSBUSS
DEVICEDEVICE
BUSSBUSS
Terminator
Terminator
328 ft. (100 m) Max.
Device cables
19 ft. (6 m) Max.
Buss cable
008635
