Boat Rigging
Battery Installation

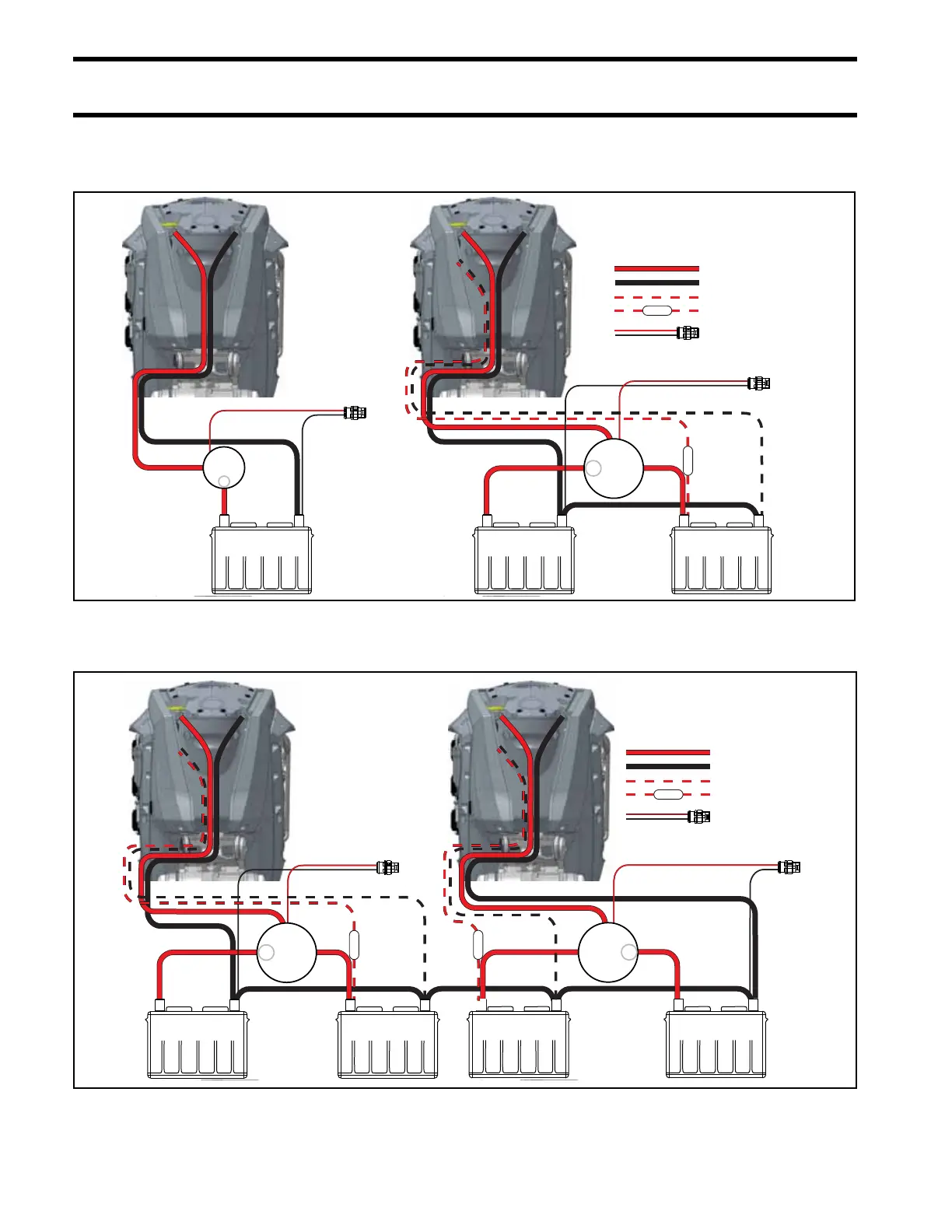

Battery and Switch Wiring Diagrams (Typical)
Single outboard
Two outboards: One starting battery, one accessory battery each
OFF
ON
+
_
1
2
OFF
BOTH
+
_
+
_
#1
#2#1
Positive (+) Battery Cable
Negative (–) Battery Cable
Accessory Charge Wire
50 Amp Fuse
Network Power Cable
1. Single starting battery with ON/OFF switch
2. Two starting batteries with Auxiliary charging kit
009133
+
_
1
2
OFF
BOTH
+
_
#1#2
+
_
1
2
OFF
BOTH
+
_
#2#1
Positive (+) Battery Cable
Negative (–) Battery Cable
Accessory Charge Wire
50 Amp Fuse
Network Power Cable
009132
