Outboard Rigging
Rigging Center Access
Rigging Center Access

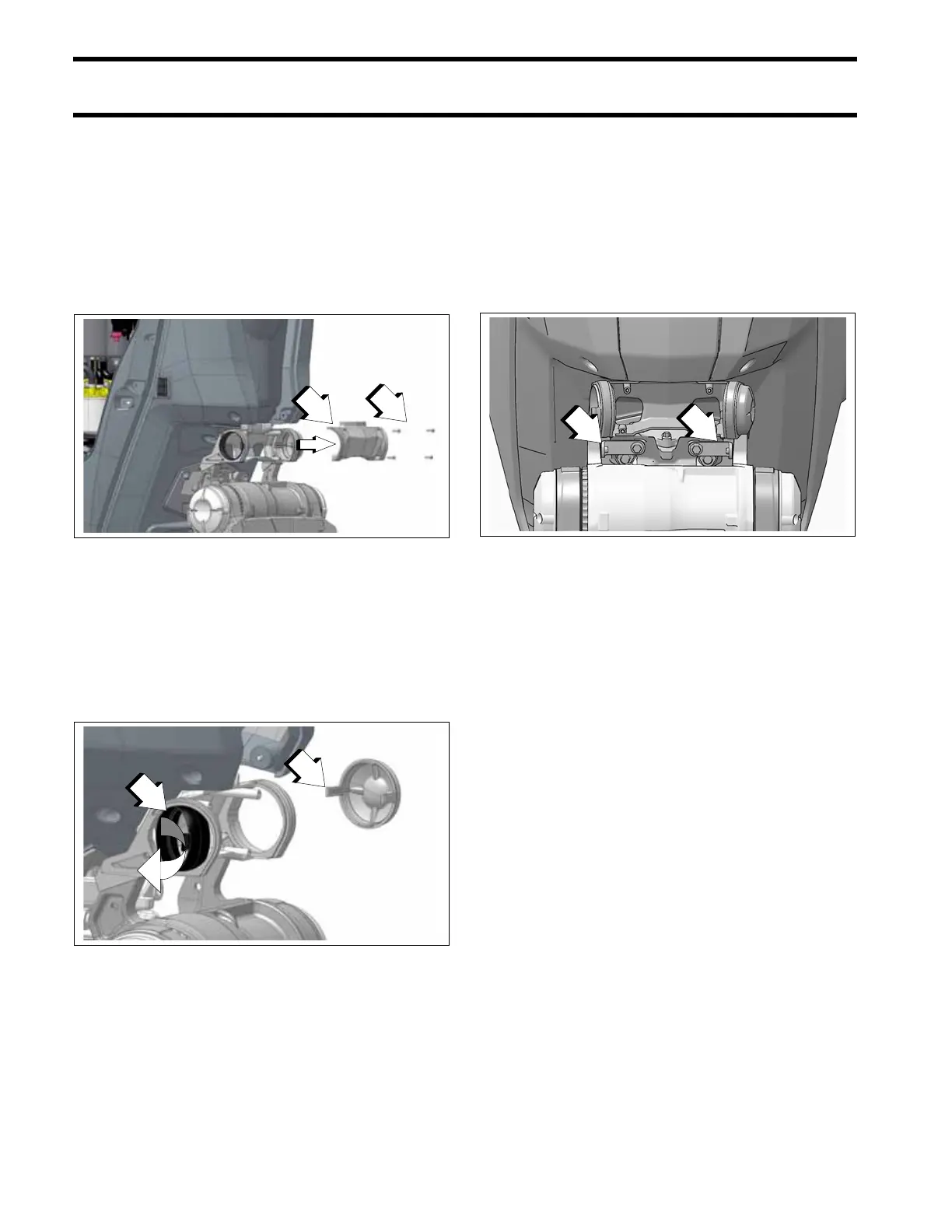

Evinrude E-TEC G2 models utilize a central rig-
ging center. All buss cables, hydraulic steering,
fuel and oil hoses and other rigging enter the rig-
ging center through a cable entryway.
Remove four screws from the cable entry cover.
Remove the cover.
The cable entryway is set up for starboard cable
entry but can be adapted for port cable entry.
Rotate the rigging hose retainer 90° and pull to
remove. Carefully squeeze the end cap at the tab
locations and pull to remove. Reinstall the retainer
and end cap into the desired locations.
Shipping Brackets
Remove the shipping brackets from the steering
arm and stern bracket.
IMPORTANT: Save the screws attaching the
shipping brackets to the steering arm. This screw
is used with the steering lock tool to bleed the hy-
draulic steering system.
1. Four screws
2. Cable entry cover
009106
1. Rigging hose retainer
2. End cap tab
009117-3
1. Shipping brackets
009107
