61
Outboard Rigging
Rigging Hose
4
Rigging Hose
Rigging Hose Requirement
Rigging Hose Length
Determine the length of the rigging hose BEFORE
installing cables and hoses through the rigging
hose.
Then determine the lowest point of the rigging
hose in the installed position.
Use a drill and drill bit to make three 3/8 in.
(10 mm) drain holes in the rigging hose:
• make the first drain hole at the lowest point.
• make the second and third drain hole 1.5 in.
(38 mm) each side of the first drain hole.

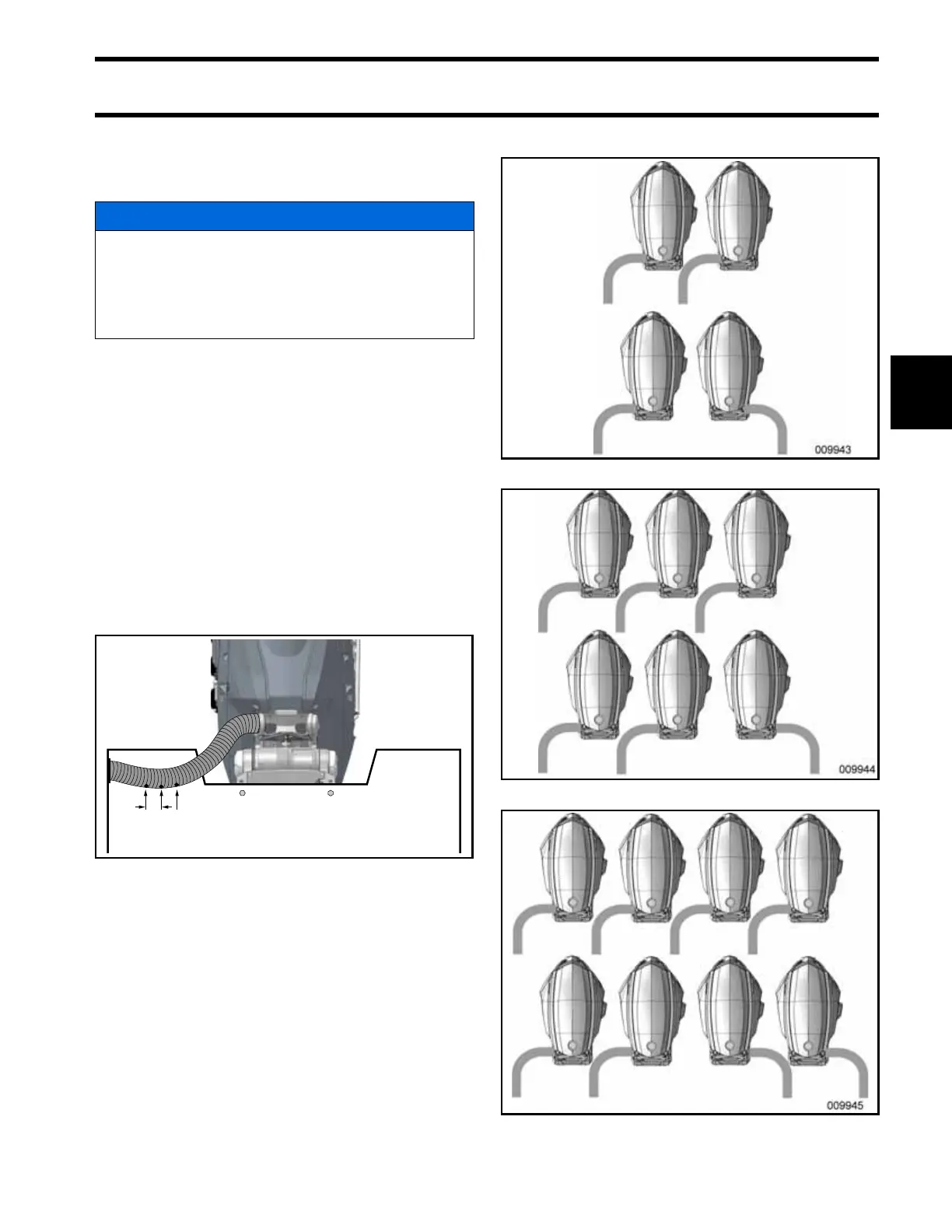

Rigging Hose Installation Options
Allow one rigging hose per engine. The rigging
hose can enter from the starboard or port side.
When rigging multiple engines additional options
are available, shown are some suggestions:
Two Engines
Three Engines
Four Engines
NOTICE
A 12 in. (304.8 mm) or longer length of rigging
hose such as P/N 770392, or P/N 770393 is
REQUIRED to prevent damage to buss cables,
hoses, harnesses or other wiring entering the
outboard rigging center.
Drain Holes
To Next Page
