BRP Evinrude E-TEC G2 150 HP User Manual

37
Boat Rigging
Fuel System Requirements
1
2

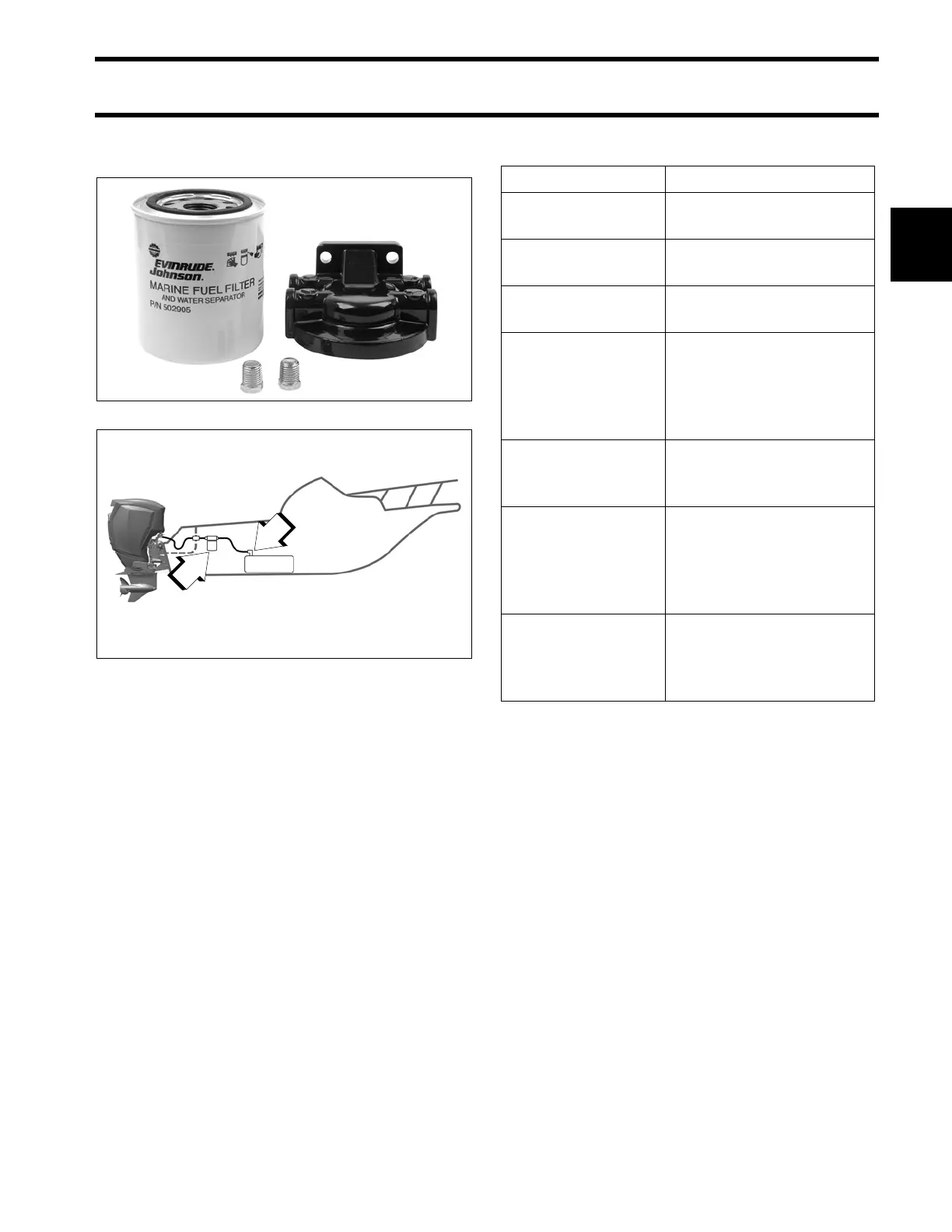

Fuel Filter Kit, P/N 174176, meets all require-
ments for a water-separating fuel filter.
Fuel Flow Requirements
174176
Typical Fuel Supply Configuration
1. Water separating fuel filter
2. Anti-siphon valve, in fuel pick-up of tank
009087
2
1
150 – 300 HP
Fuel tank pickup
tube; minimum ID
3/8 in. (9.5 mm)
Fuel fittings;
minimum ID
9/32 in. (7.1 mm)
Fuel supply hoses;
minimum ID
3/8 in. (9.5 mm)
Fuel tank pickup
screen
100 mesh, 304 grade
stainless steel wire,
0.0045 inch (0.1143 mm)
wire diameter, 1 inch (25
mm) long
Antisiphon valve 2.5 in. (63.5 mm) Hg maxi-
mum pressure drop at 20
gph (76 l/hr) flow
Remote fuel filter 0.4 in. Hg maximum pres-
sure drop at 20 gph (76
l/hr) flow,
150 in.
2
(1290 cm
2
) of filter
area
Maximum fuel pump
lift height
Fuel pump should not be
located more than 30 in.
(76.2 cm) above bottom of
fuel tank
