4. From the Device List select Disconnect Device.
2. From the Device List select the EMM for the
next engine.
3. Repeat steps 3, 4 and 6 through 9 for each
engine.
4. After engine identity has been set for each
engine, turn the key switch OFF and back ON
to complete the procedure.
Water Pressure Connection
To send water pressure data to the EMM, along
with an NMEA 2000 display, install 50 psi Water
Pressure Transducer Kit, P/N 5008640.
Water pressure readings in excess of 40 psi (275
kPa) are possible at boat speeds in excess of
50 mph (80 kph/43 kts).
IMPORTANT: Use the fittings and hose supplied
with the kit. Do NOT install the transducer directly
into the block.
66° V6 Models
Install the water pressure transducer to the acces-
sory water pressure hose located beneath the fuel
filter. Refer to the installation instructions provided
with the water pressure transducer kit.
74° V6 Models
Remove the accessory water pressure plug from
the engine to install the water pressure trans-
ducer. The plug is located behind the oil supply
hoses. Refer to the installation instructions pro-
vided with the water pressure transducer kit.

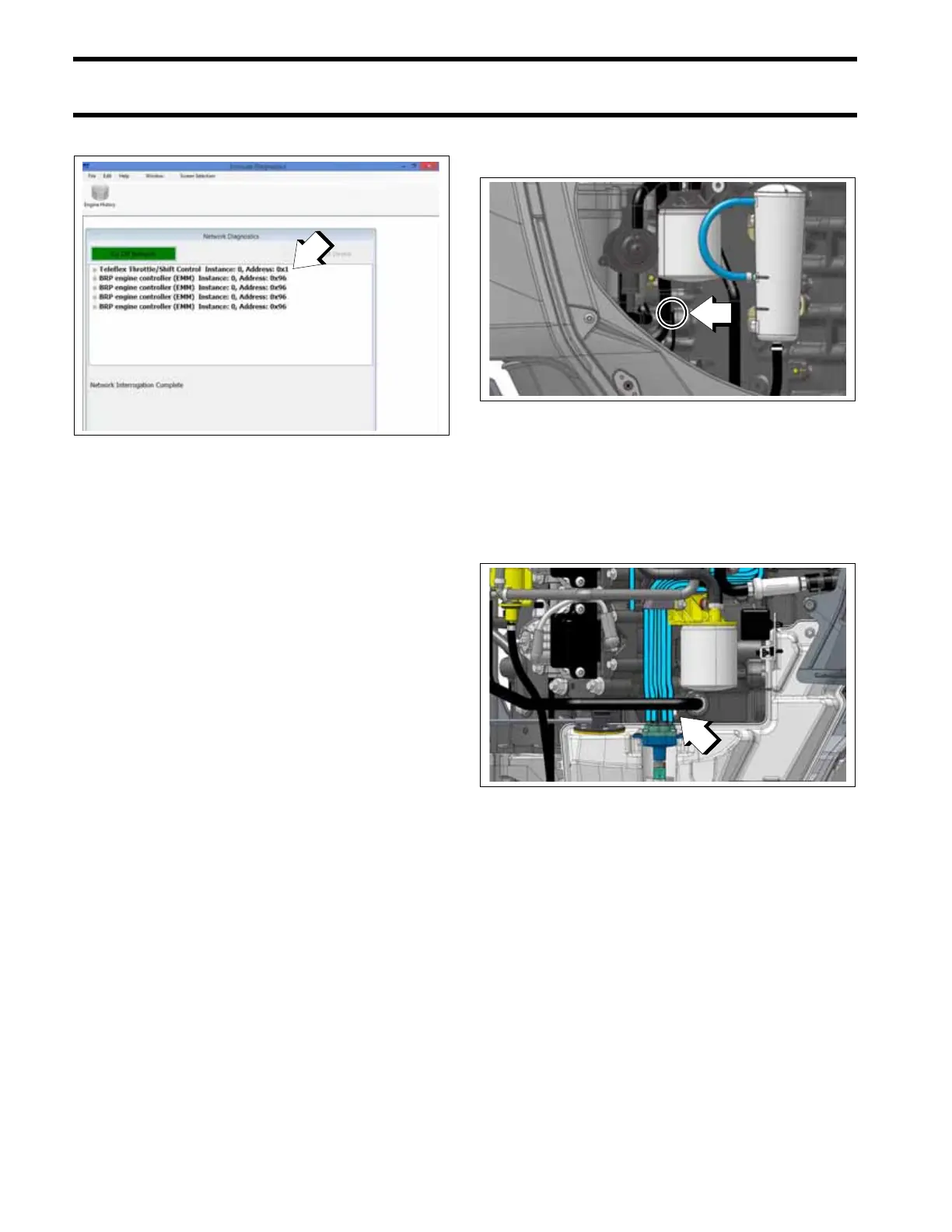

1. Device List
009161
1. Accessory water pressure hose
009891
1. Accessory water pressure plug
009119
