BRP Evinrude E-TEC G2 150 HP User Manual

48
Outboard Installation
Transom Measuring and Drilling
Transom Measuring and
Drilling

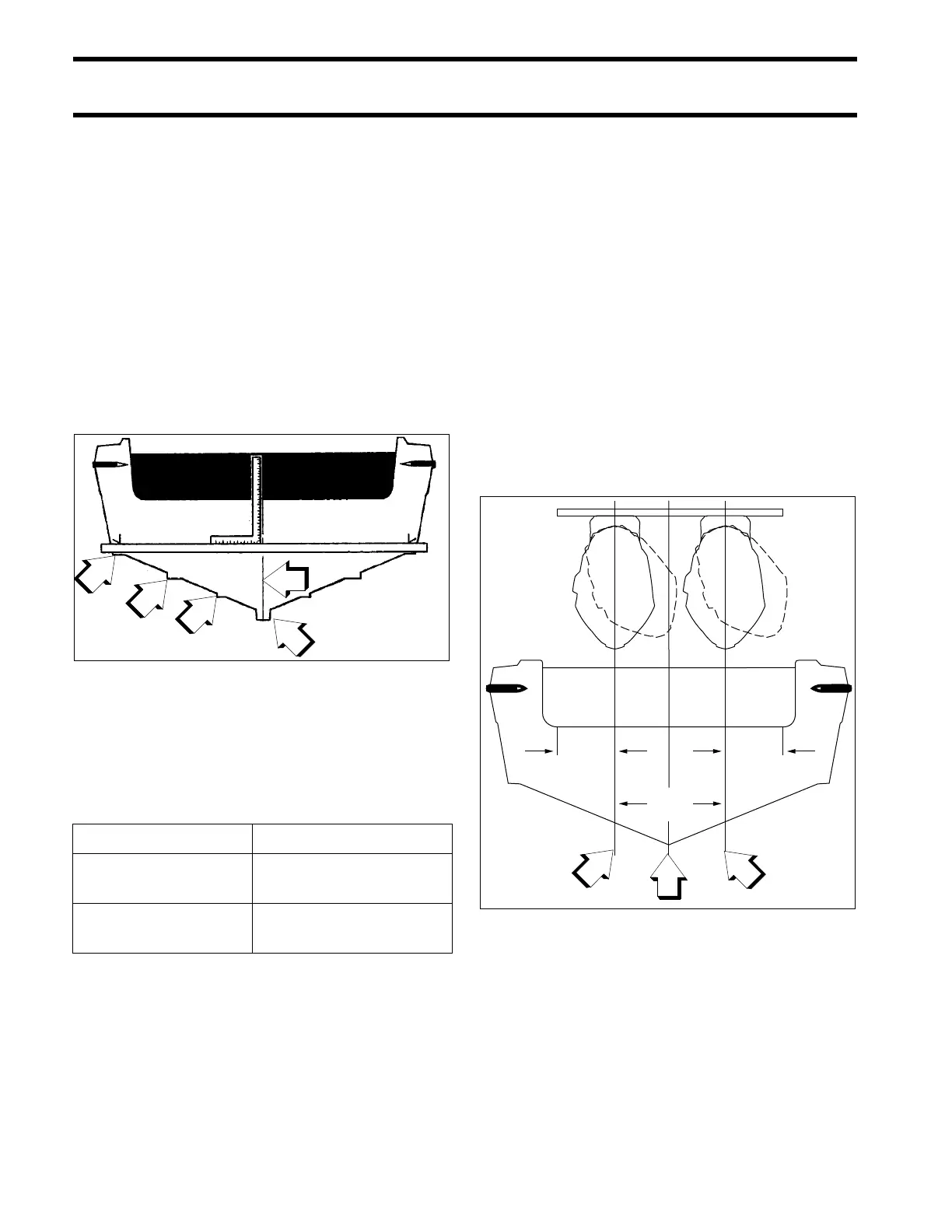

Hull Centerline
Use the chines of the boat as reference points to
locate the centerline of the boat transom.
Use a straightedge to draw a line connecting the
port and starboard chines.
Use a framing square to accurately place a verti-
cal line on the transom. The centerline of the hull
should be in line with the keel, and perpendicular
to the midpoint of the line connecting the chines.
Multiple Outboard Centerlines
Evinrude E-TEC G2 outboards require centerline
spacing of:
Some applications may require changes in this
dimension to avoid strakes, to adjust for transom
height, or for performance reasons. Best perfor-
mance can be determined only through testing.
Refer to boat manufacturer for recommendations.
Increase the spacing if the standard spacing does
not allow full steering travel in a particular installa-
tion.
The top edge of the transom should be more than
twice the width of the dual-outboard centerline
spacing dimension. Bracket installations may not
require this consideration.
Measure the transom for dual-outboard spacing
after the centerline of the hull is established.
Divide the spacing dimension by two. Use the
resulting number to space the outboard center-
lines from the hull centerline.
EXAMPLE: A 28 in. (771 mm) dual-outboard
spacing would result in two outboard centerlines,
each 14 in. (355 mm) from the hull centerline.
1. Chine
2. Strake
3. Keel
4. Hull centerline
DR5568
Outboard Model Centerline
150 – 200 HP
66° V6
27.5 in. (698.5 mm)
200 H.O.–300 HP
74° V6
28 in. (711 mm)
1
2
3
4
2
1. Port centerline
2. Hull centerline
3. Starboard centerline
009096
1
2
3
