125
Chapter 7: Configuring IP Information
Configuring Layer 2
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
7

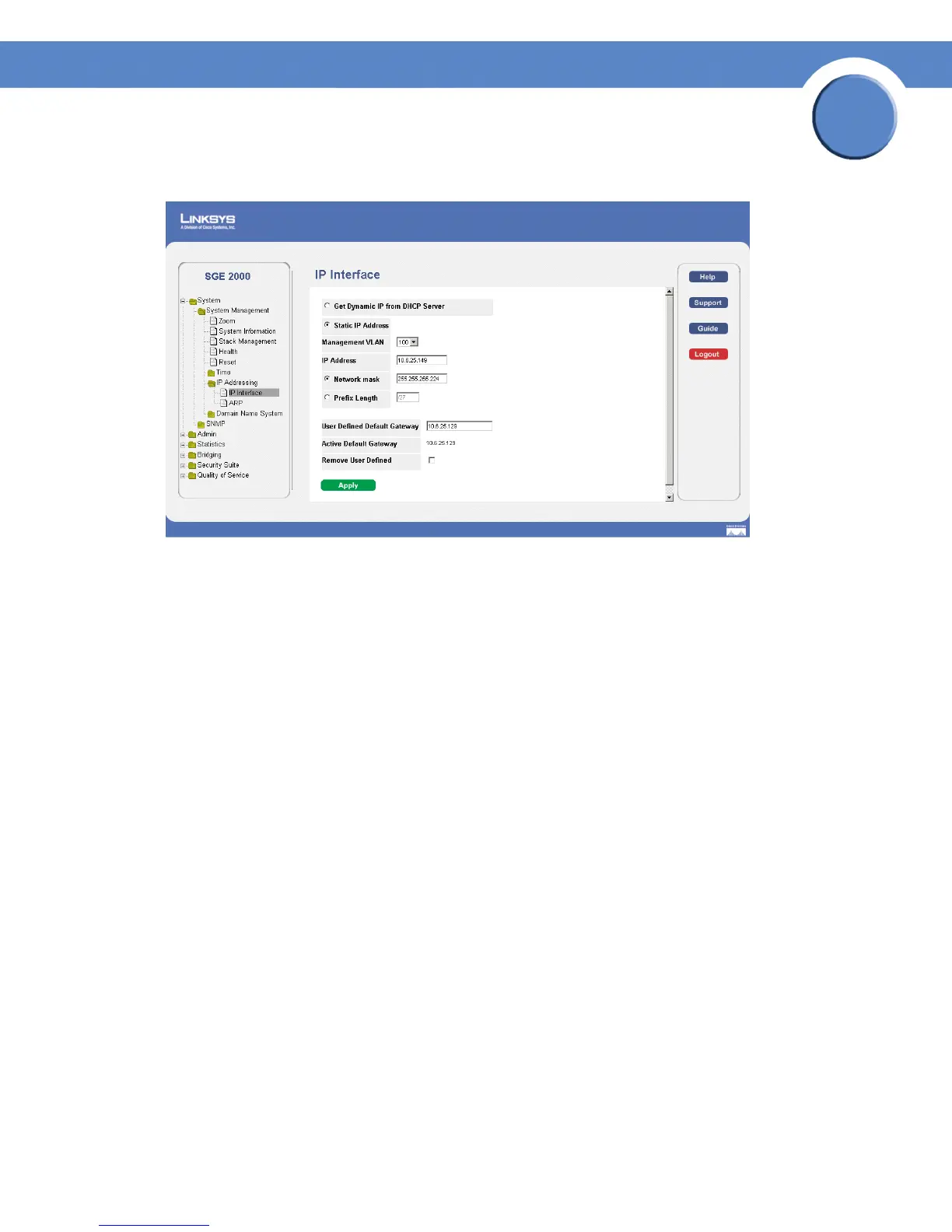

IP Interface Page
The IP Interface Page contains the following fields:
• Get Dynamic IP from DHCP Server — Retrieves the IP addresses using DHCP.
• Static IP Address — Displays the currently configured IP address. IP addresses are either
configured on the Default VLAN or are user-defined.
• Management VLAN — Sets the management VLAN. The switch uses this VLAN to watch for
management packets from Telnet and web browser management sessions.
• IP Address — Indicates the IP address.
• Network Mask — Displays the currently configured IP address mask.
• Prefix Length —
Specifies the number of bits that comprise the source IP address prefix, or the
network source IP address mask.
• User Defined Default Gateway — Defines the default gateway IP address.
• Active Default Gateway — Indicates if the default gateway is active.
• Remove User Defined — Removes the selected IP address from the interface. The possible field
values are:
– Checked — Removes the IP address from the interface.
– Unchecked — Maintains the IP address assigned to the Interface.
ARP
The Address Resolution Protocol (ARP) is a TCP/IP protocol that converts IP addresses into physical
addresses. The ARP table is used to maintain a correlation between each MAC address and its
