Chapter 10: Configuring Spanning Tree
Defining Multiple Spanning Tree
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
10

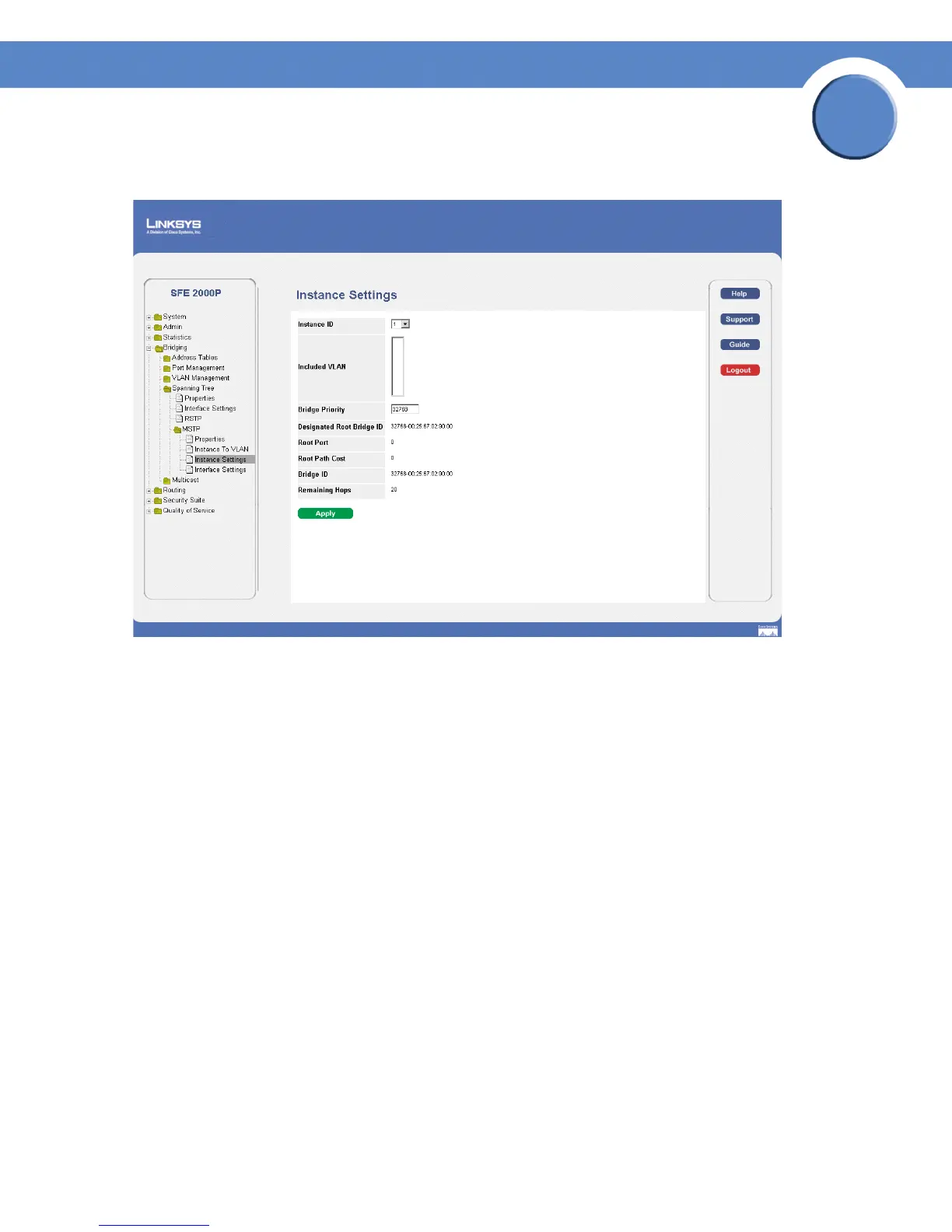

MSTP Instance Settings Page
The MSTP Instance Settings Page contains the following fields:
• Instance ID — Defines the VLAN group to which the interface is assigned.
• Included VLAN — Maps the selected VLAN to the selected instance. Each VLAN belongs to one
instance.
• Bridge Priority — Specifies the selected spanning tree instance device priority. The field range is 0-
61440
• Designated Root Bridge ID — Indicates the ID of the bridge with the lowest path cost to the
instance ID.
• Root Port — Indicates the selected instance’s root port.
• Root Path Cost — Indicates the selected instance’s path cost.
• Bridge ID — Indicates the bridge ID of the selected instance.
• Remaining Hops — Indicates the number of hops remaining to the next destination.
Interface Settings
Network Administrators can define MSTP Instances settings using the MSTP Instance Settings Page.
