170
Chapter 10: Configuring Spanning Tree
Defining Multiple Spanning Tree
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
10
Instance to VLAN
The VLAN screen enables mapping VLANs to MSTP Instances.
1. Click Bridging > Spanning Tree > MSTP > Instance to VLAN. The Instance to VLAN Page
opens:

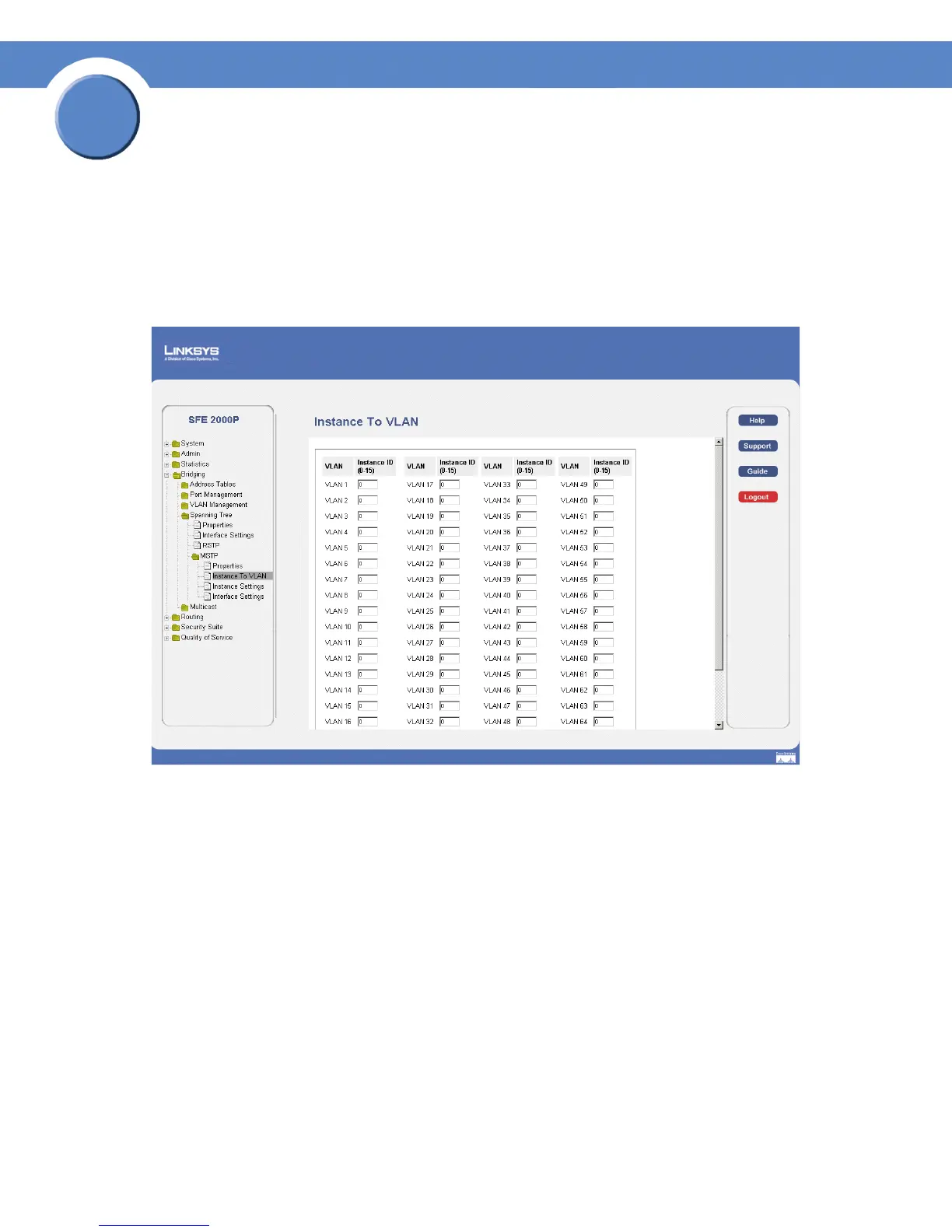

Instance to VLAN Page
The Instance to VLAN Page contains the following fields:
• VLAN – Indicates the VLAN for which the MSTP instance ID is defined.
• Instance ID – Indicates the MSTP instance ID assigned to the VLAN.
Instance Settings
Network Administrators can define MSTP Instances settings using the MSTP Instance Settings Page.
1. Click Bridging > Spanning Tree > MSTP > Instance Settings. The MSTP Instance Settings Page
opens:
