Mapping DSCP to Queue
The DSCP to Queue Page enables mapping DSCP values to specific queues. To map DCSP to Queues:
1. Click Quality of Service > General > DSCP to Queue. The DSCP to Queue Page opens:

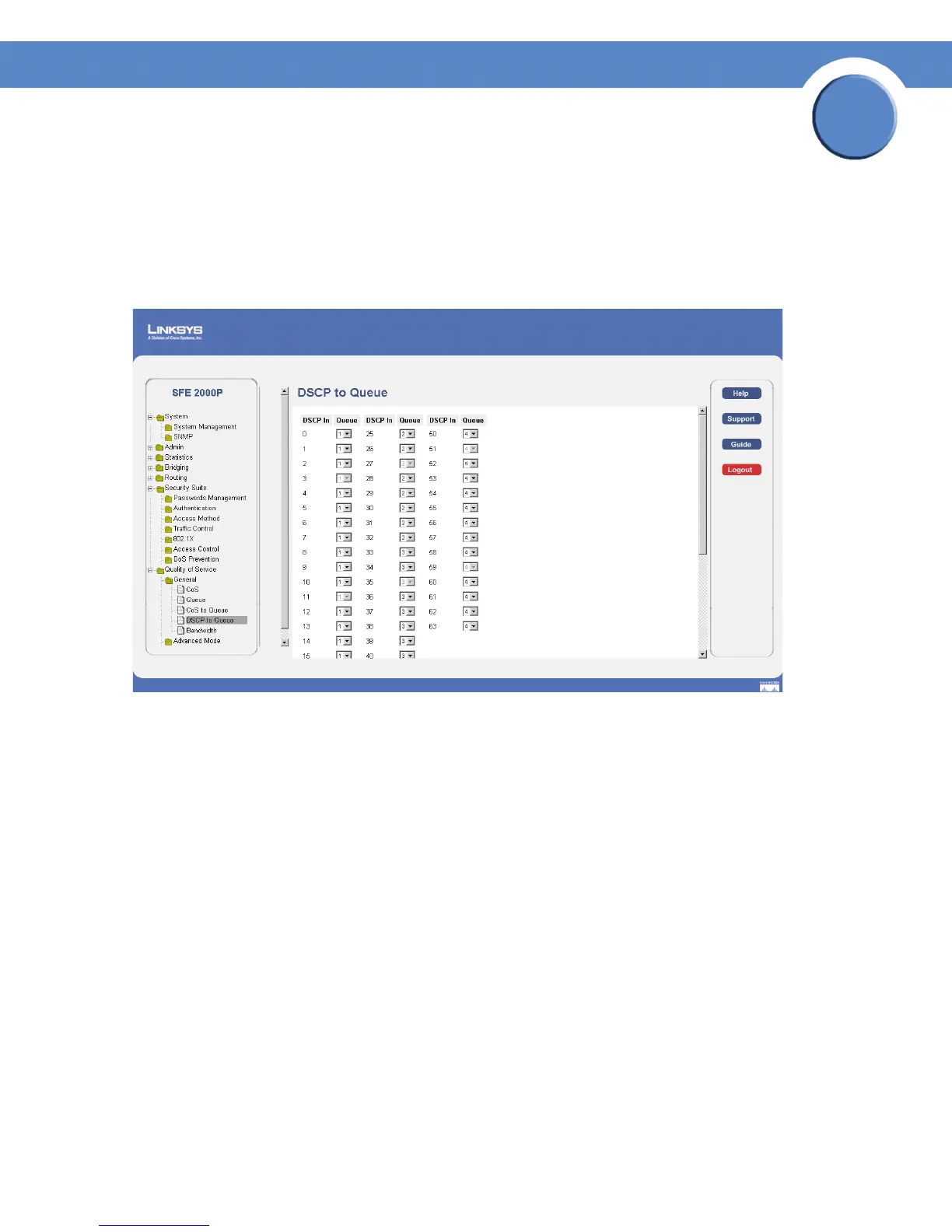

DSCP to Queue Page
The DSCP to Queue Page contains the following fields:
• DSCP In — Indicates the Differentiated Services Code Point value in the incoming packet.
• Queue — Maps the DSCP value to the selected queue.
2. Define the relevant fields.
3. Click Apply. DSCP to queues are mapped, and the device is updated.
Configuring Bandwidth
The Bandwidth Page allows network managers to define the bandwidth settings for a specified egress
interface. Modifying queue scheduling affects the queue settings globally. The Bandwidth page is not
used with the Service mode, as bandwidth settings are based on services.
Queue shaping can be based per queue and/or per interface. Shaping is determined by the lower specified
value. The queue shaping type is selected in the Bandwidth Page.
1. Click Quality of Service > General > Bandwidth. The Bandwidth Page opens:
