132
Chapter 7: Configuring IP Information
Configuring Layer 3
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
7

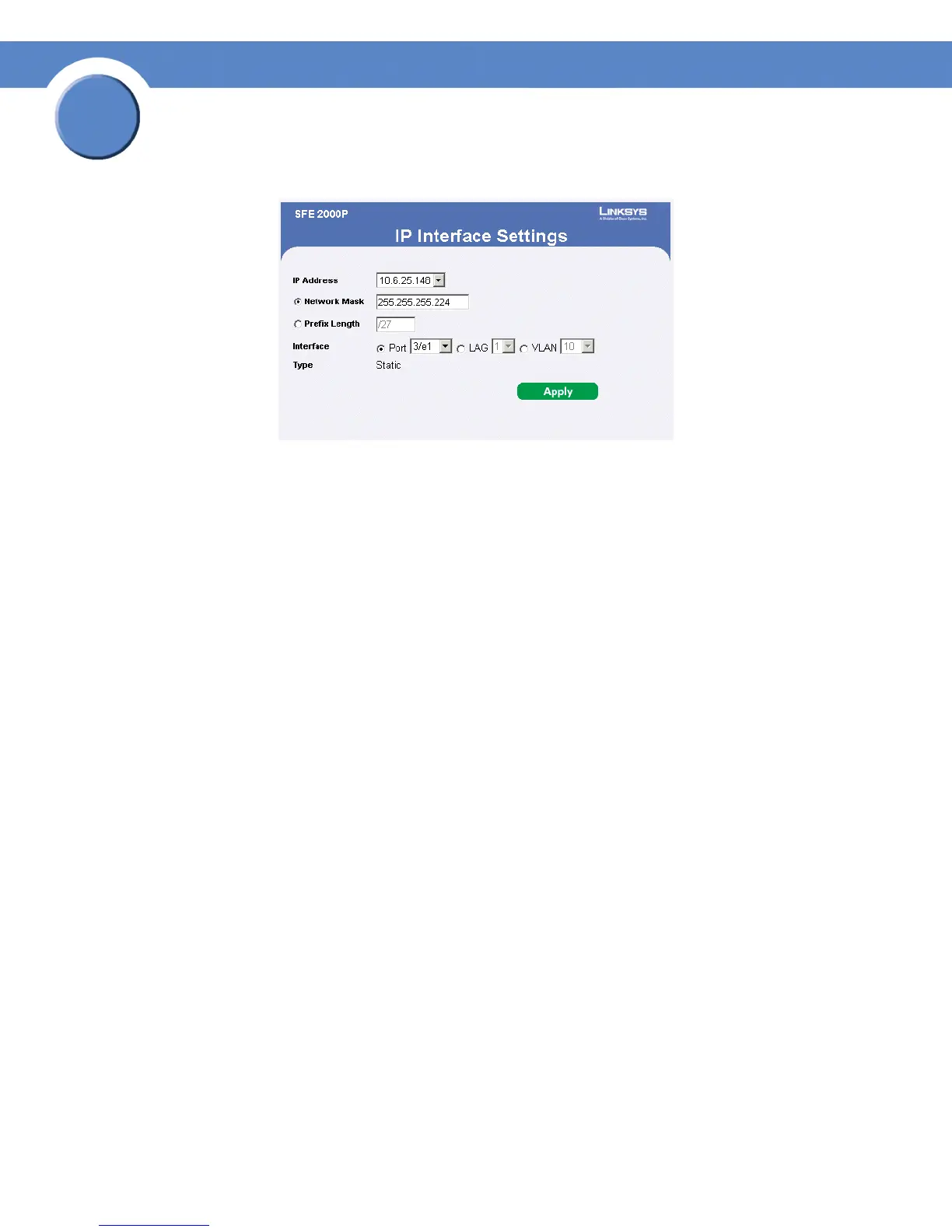

IP Interface Settings Page
IP Interface Settings
The IP Interface Settings Page contains the following fields:
• IP Address — Defines the system IP address.
• Network Mask — Displays the currently configured IP address mask.
• Prefix Length —
Specifies the number of bits that comprise the source IP address prefix, or the
network source IP address mask
• Interface — Defines the system IP address.
• Type — Indicates if the IP address has been configured statically or added dynamically.
3. Modify the relevant fields.
4. Click Update. The IP Interface Settings are modified, and the device is updated.
ARP Proxy
The Address Resolution Protocol (ARP) is a TCP/IP protocol that converts IP addresses into physical
addresses. The ARP Proxy Page allows network managers to enable ARP Proxy on the switch.
1. Click System > System Management > IP Addressing > ARP Proxy. The ARP Proxy Page opens:
