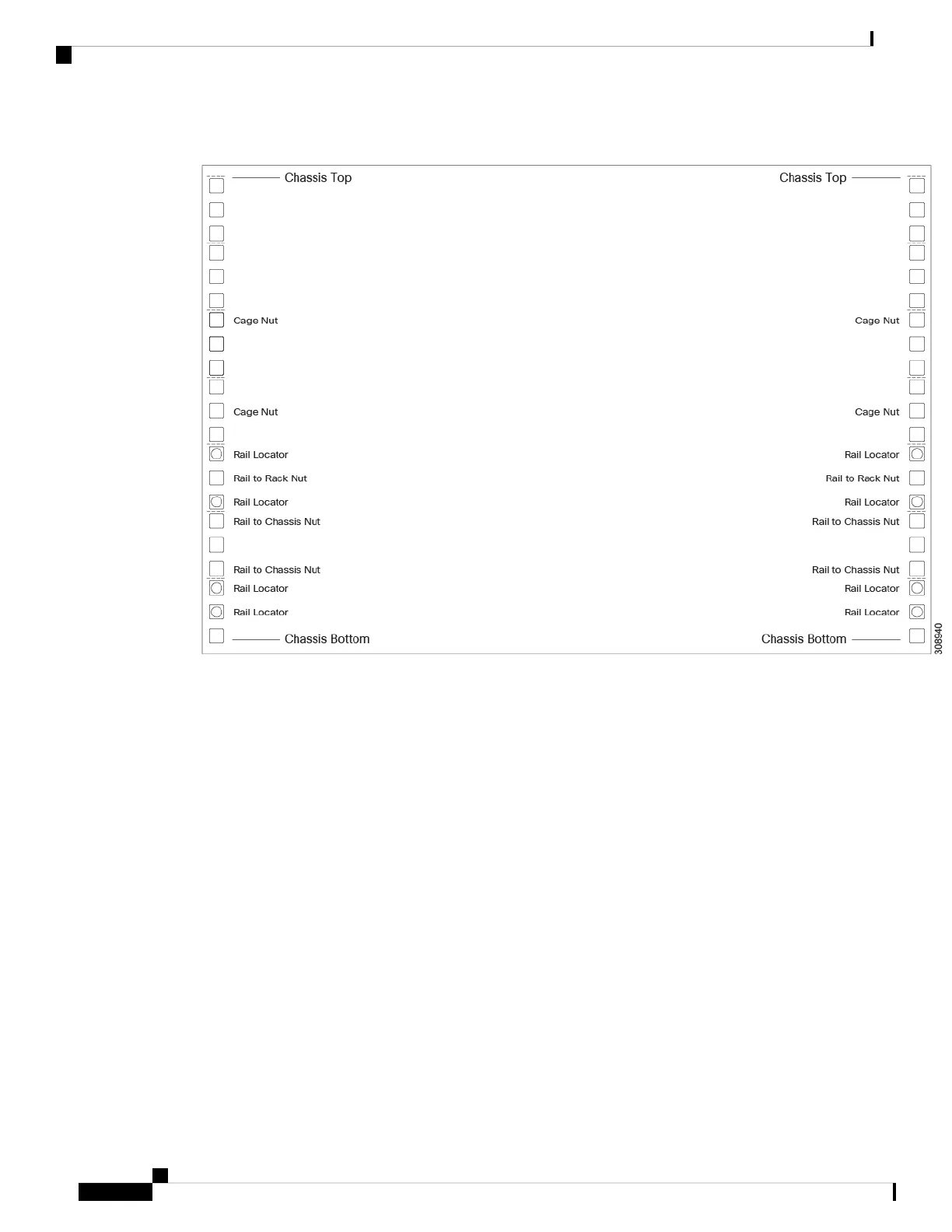

Figure 10: Rack Installation Template, Front
Rear Install Template
Use this installation to locate the correct spacing and alignment for chassis mounting hardware on the rack.
This template shows the rack locations for mounting the rear of the chassis.
Align the Chassis Top of the template with the location in the rack where the top of the chassis will be and
install the cage nuts and other hardware as shown.
Cisco UCS X9508 Server Chassis Installation Guide
28
Installation
Rear Install Template
