Step 8 Figure 16: Secure the Rail at the Rear of the Rack
What to do next
Verify that the rails are correctly installed. See Rail Installation Layout, on page 35.
Rail Installation Layout

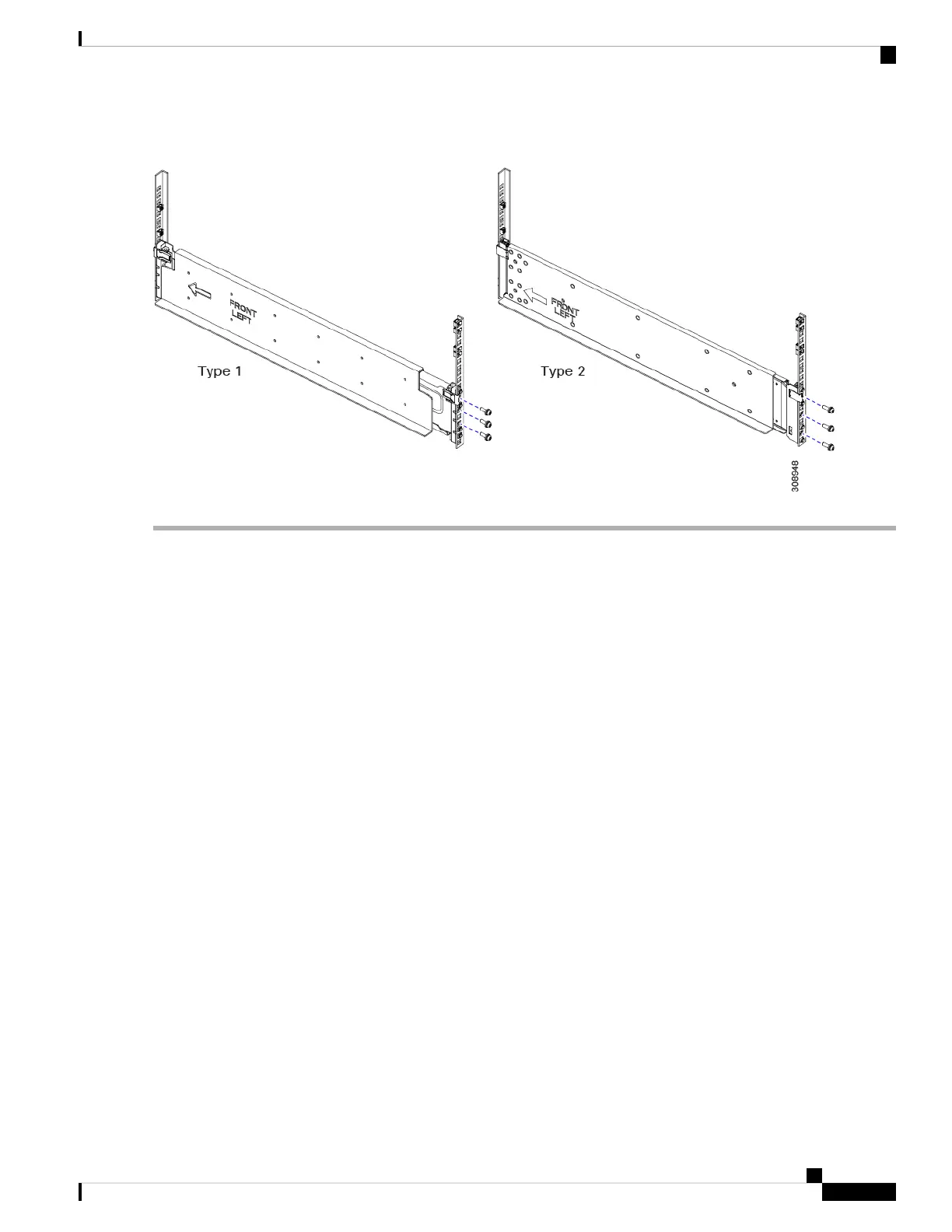

Before installing the chassis in the rack, compare the rail installation in the rack against the following layout
images. If the rail installation is different than what is shown in each layout, remove the rails and reinstall
them.
Cisco UCS X9508 Server Chassis Installation Guide
35
Installation
Rail Installation Layout

Cisco UCS X9508 Specifications

General

Total Slots	8
Supported Server Nodes	Cisco UCS X-Series Server Nodes
Number of Half-Width Slots	8
Number of Full-Width Slots	0
Storage Options	Dependent on server node configuration
Power Supplies	Up to 4 power supplies
Power Supply Redundancy	N+1 redundancy
Cooling	Hot-swappable fans
Chassis Management	Cisco UCS Manager
Dimensions (H x W x D)	32.0 in (81.3 cm)
