Cisco UCS X9508 User Manual

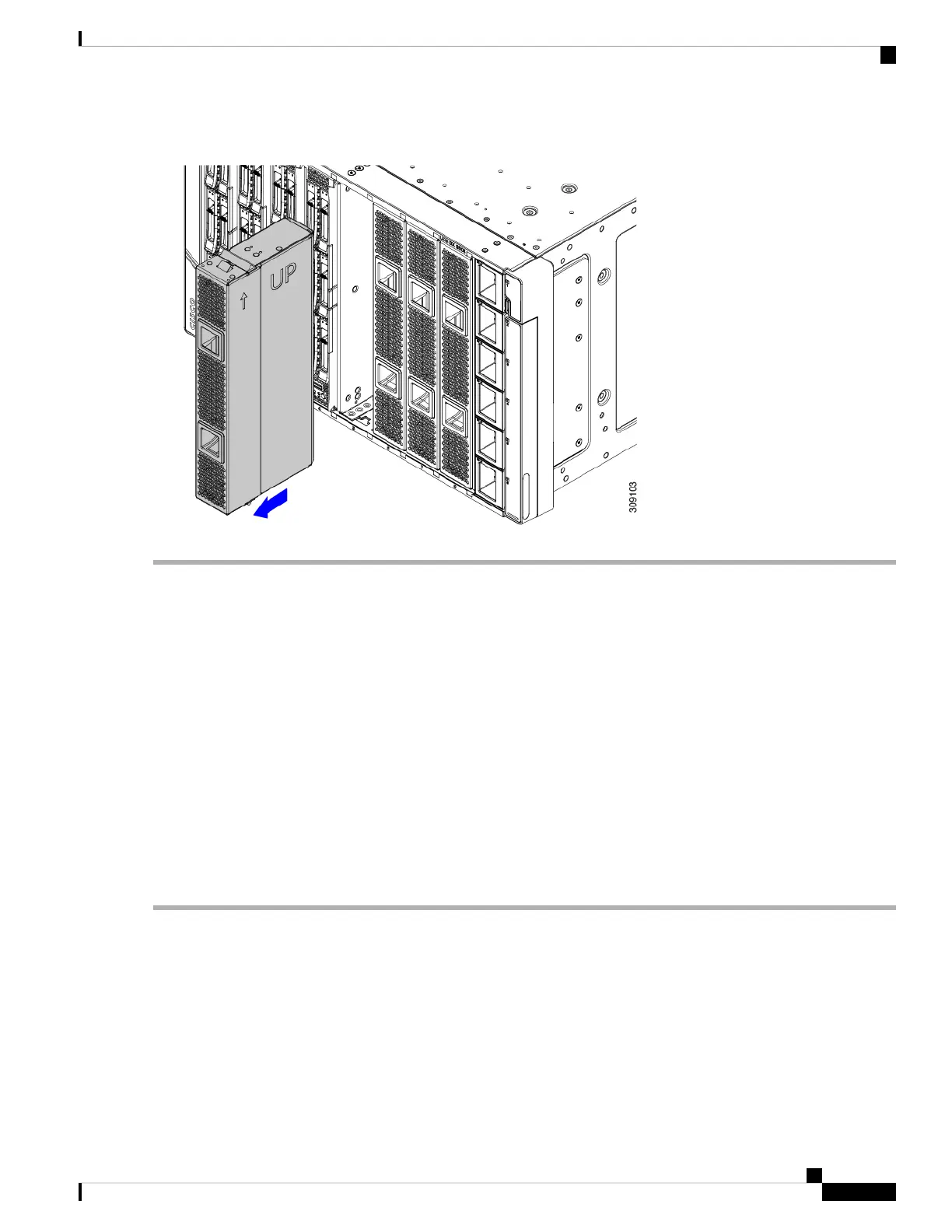

Figure 33: Removing a Compute Node Blank
What to do next
Choose the appropriate option:
• Installing a Compute Node, on page 67
• Installing a Compute Node Blank, on page 65
Installing a Compute Node Blank
If you remove a compute node, and you will not be installing another compute node, you must install a compute
node blank. Do not operate the server with an empty compute node slot. The minimum configuration is 1
installed compute node, so in this configuration you need 7 module blanks installed.
Compute node blanks are interchangeable within the same chassis or other chassis.
Use this task to install a compute node blank
Step 1 Grasp the blank by the finger holds.
Step 2 Hold the module blank vertically and align the module blank with the slot.
The module blank has an arrow and the word UP that show how to orient the blank. Also, if you attempt to
install the blank with the wrong orientation, the module does not sit flush with the front of the chassis.
Note
Cisco UCS X9508 Server Chassis Installation Guide
65
Installing and Removing Components
Installing a Compute Node Blank

Cisco UCS X9508 Specifications

General

Total Slots	8
Supported Server Nodes	Cisco UCS X-Series Server Nodes
Number of Half-Width Slots	8
Number of Full-Width Slots	0
Storage Options	Dependent on server node configuration
Power Supplies	Up to 4 power supplies
Power Supply Redundancy	N+1 redundancy
Cooling	Hot-swappable fans
Chassis Management	Cisco UCS Manager
Dimensions (H x W x D)	32.0 in (81.3 cm)
