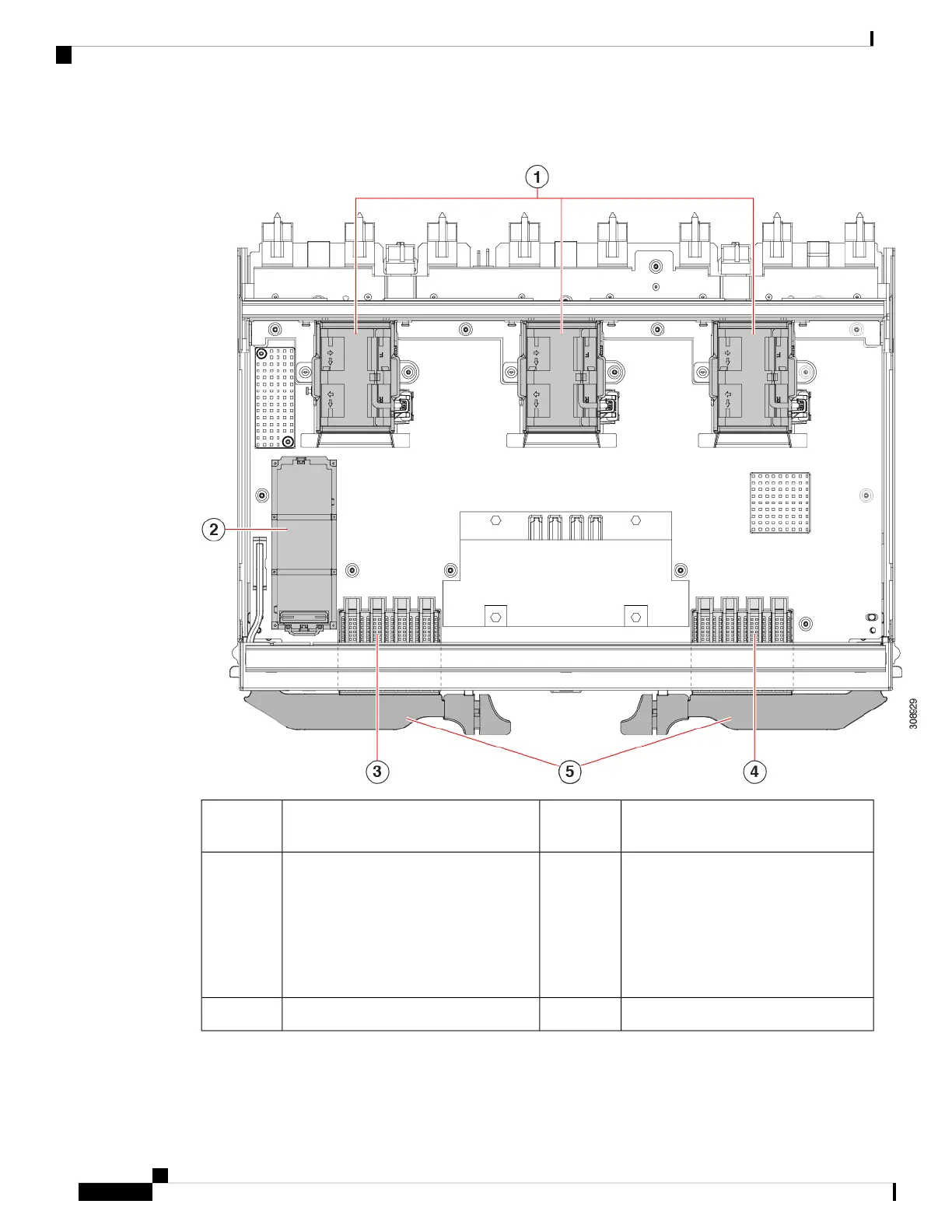

Figure 30: UCS 9108 25G Intelligent Fabric Module, Component View
One M.2 mini storage module slot2Fans (3) which are numbered 1 through
3 starting with the left fan
1
SFP28 Optical Ports.
Ports are arranged in two groups of four
physical ports.
Port number 5 is the left port in this
group, and port number 8 is the right
port in the group.
4SFP28 Optical Ports.
Ports are arranged in two groups of four
physical ports.
Port number 1 is the left port in this
group, and port number 4 is the right port
in the group.
3
IFM ejector handles, left and right5
Cisco UCS X9508 Server Chassis Installation Guide
62
Installing and Removing Components
Cisco UCS 9108 25G IFM Components
